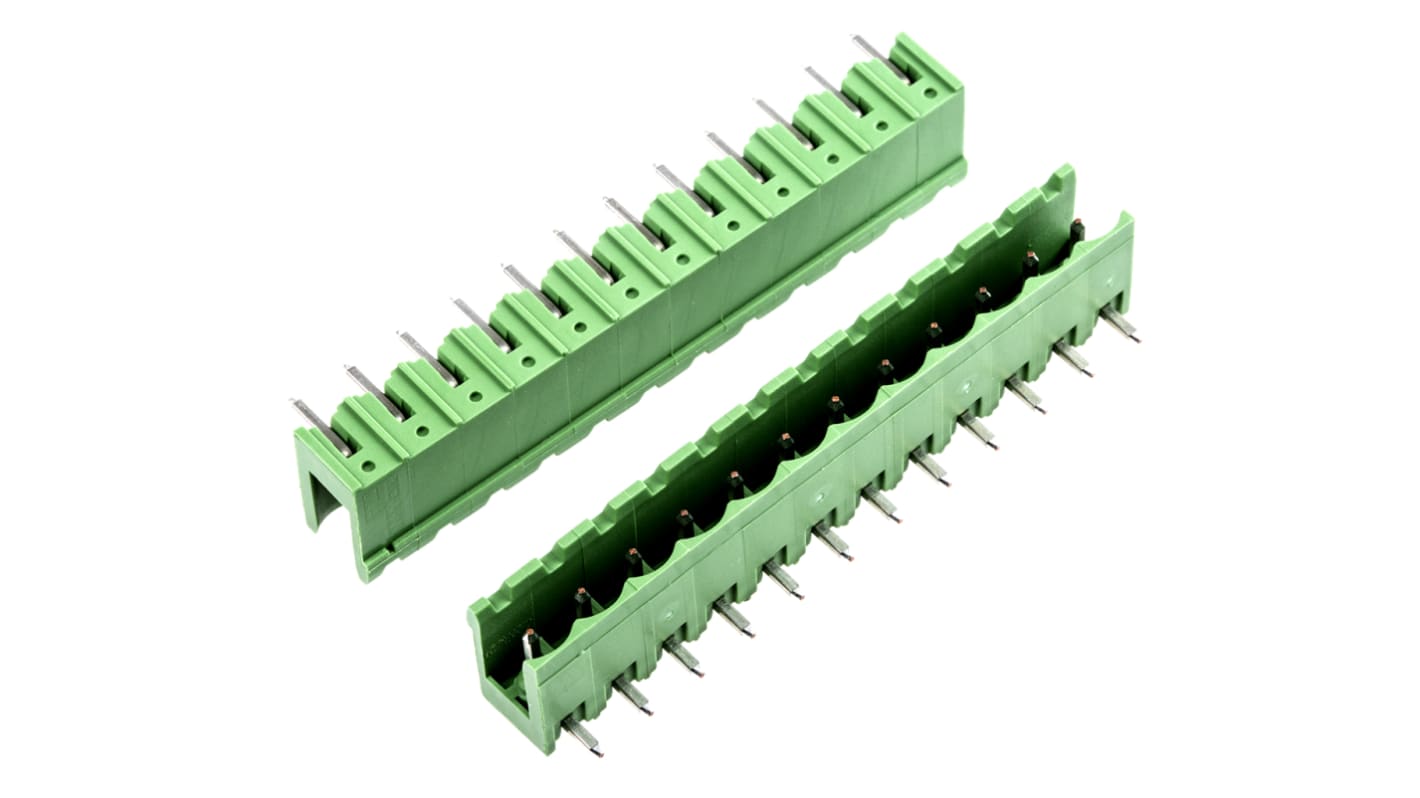

TE Connectivity 5.08mm Pitch 12 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination
- RS Stock No.:
- 164-1457
- Mfr. Part No.:
- 1-282815-2
- Brand:
- TE Connectivity
Available to back order for despatch 12/07/2024
Added
Price Each (In a Box of 100)
£3.738
(exc. VAT)
£4.486
(inc. VAT)
| Units | Per unit | Per Box* |
| 100 + | £3.738 | £373.80 |
| *price indicative | ||
- RS Stock No.:
- 164-1457
- Mfr. Part No.:
- 1-282815-2
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
TE Connectivity TERMI-BLOK 5.08mm Right Angle Open End Terminal Block Headers
TERMI-BLOK series open end PCB right angle mount mount terminal block headers with a 5.08mm centreline and interlock feature. These 5.08mm PCB terminal block headers are made from green polyamide 6.6 GF and have tin plated phosphor bronze contacts.
Approvals
UL no E 60677,CSA File no 007189A
Approvals
UL (E 60677); CSA (007189A)
TE Connectivity TERMI-BLOK 5.08mm Two Part Terminal Blocks
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Header |
| Number of Contacts | 12 |
| Pitch | 5.08mm |
| Series | Buchanan |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 15A |
| Voltage Rating | 300 V ac |
