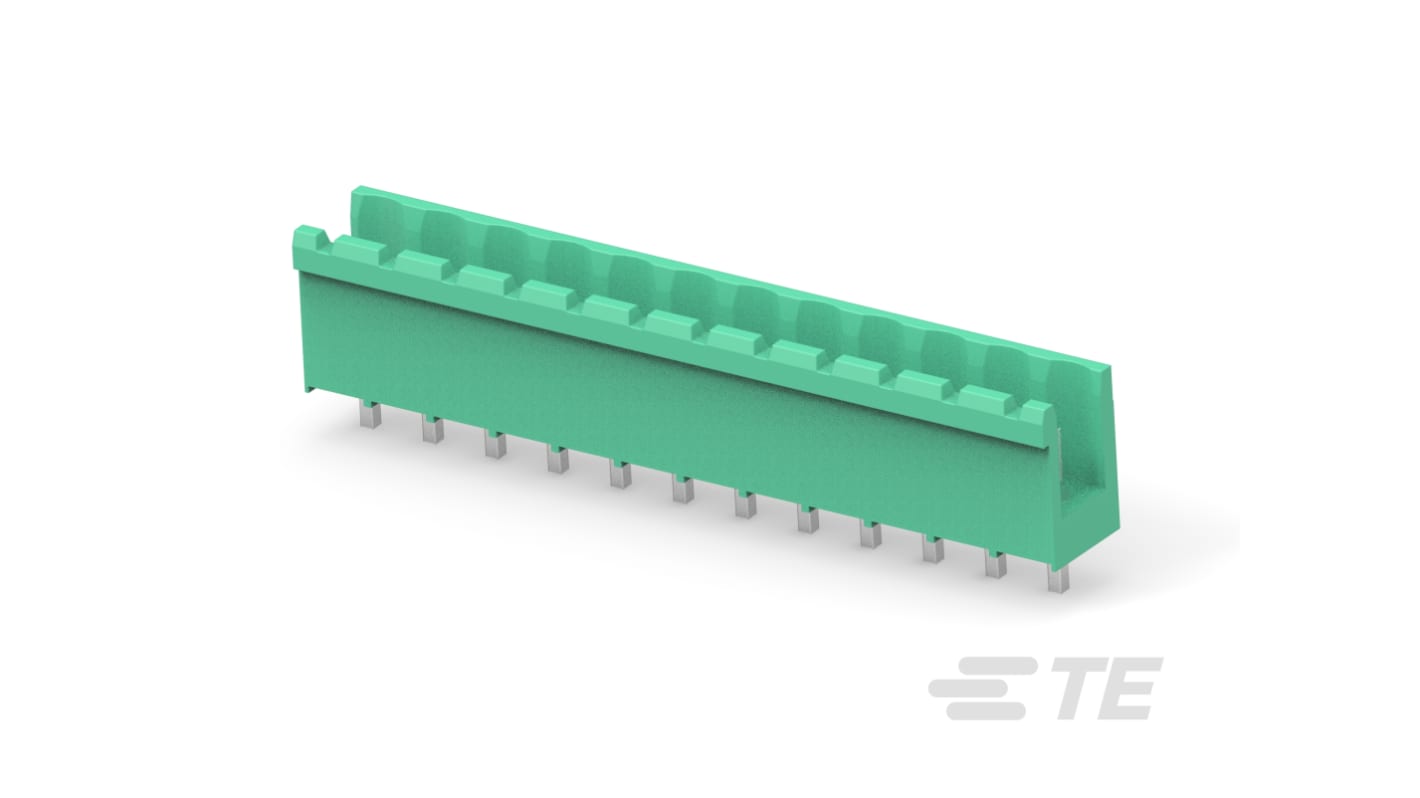

TE Connectivity Buchanan Series Pluggable Terminal Block, 12-Contact, 5 mm Pitch, 1 Row, 1-282822-2

View all Pluggable Terminal Blocks
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
477-685
Distrelec Article No.:
304-57-971
Mfr. Part No.:
1-282822-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Pluggable Terminal Block

Number of Contacts

12

Pitch

5mm

Current

15A

Number of Rows

1

Housing Material

Polyamide 66

Orientation

Vertical

Colour

Green

Voltage

30 V

Standards/Approvals

2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Out of Scope, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant

Series

Buchanan

COO (Country of Origin):
IT
The TE Connectivity 12 Position PCB Terminal Block is an exceptional solution designed for seamless wire-to-board connections. This component excels in a range of applications demanding reliability and performance, making it ideal for industries such as telecommunications and industrial control systems. Its robust construction features a partially shrouded header type that allows for easy mating, while its vertical orientation is tailored for space-constrained environments. Designed to accommodate a maximum operating voltage of 300 VAC, this terminal block ensures a dependable electrical connection under demanding conditions. Crafted from high-quality materials, including PA 66 housing and copper magnesium contacts, it balances durability with efficiency, ensuring long-lasting performance.

Designed for vertical PCB mounting to optimise space utilisation

Constructed with a partially shrouded header for secure and easy mating

Complies with stringent EU RoHS directives ensuring reduced environmental impact

Able to withstand harsh operating temperatures from -40 to 105 °C

Features low halogen content, making it an environmentally conscious choice

Termination method to PCB through hole solder promotes enhanced reliability

Comes packaged in quantities of 100 for efficient inventory management

Suitable for both power and signal applications, increasing versatility

Supports wave soldering processes up to 240°C for compatibility with various manufacturing methods
