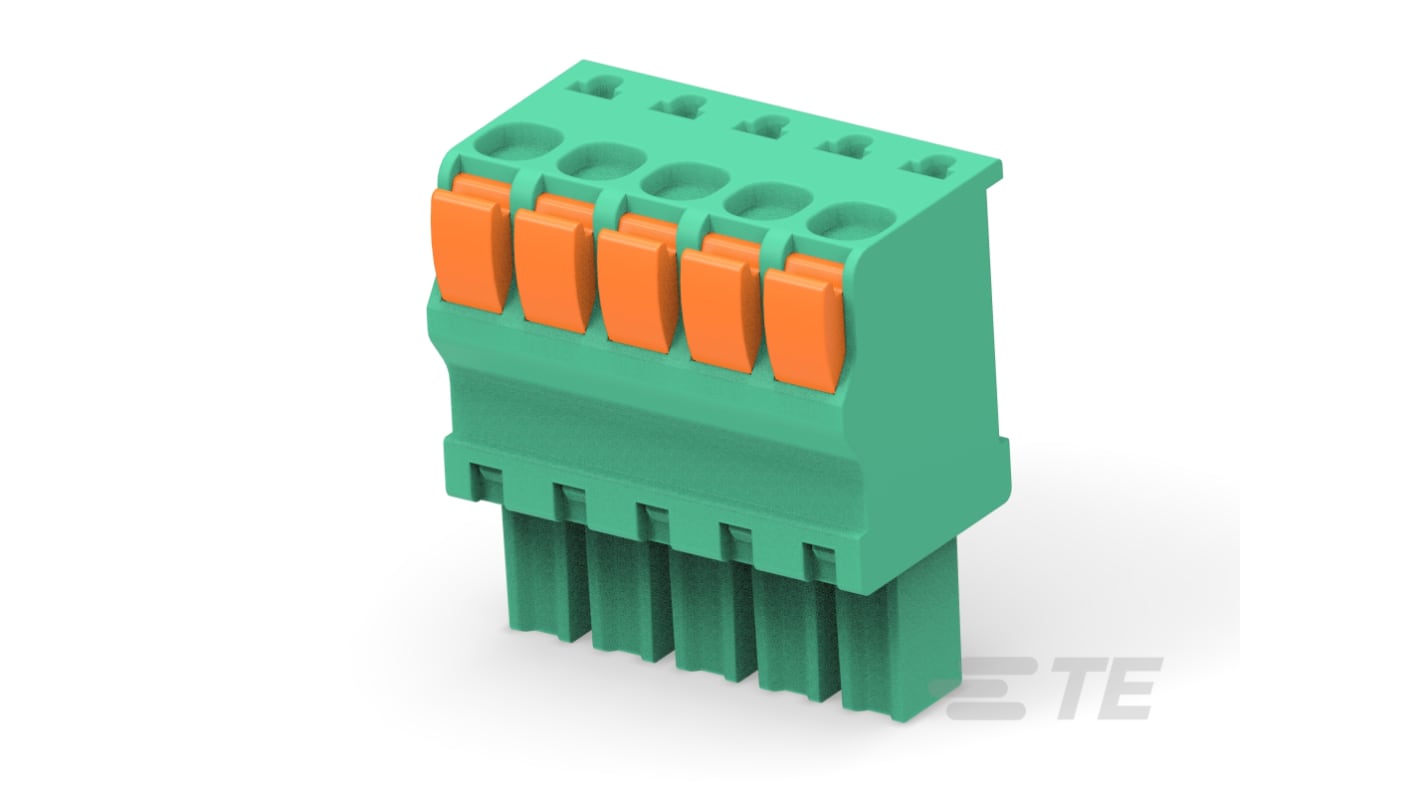

TE Connectivity Buchanan Series Pluggable Terminal Block, 5-Contact, 3.048 mm Pitch, 1 Row, 1986722-5
- RS Stock No.:
- 474-434
- Distrelec Article No.:
- 304-59-263
- Mfr. Part No.:
- 1986722-5
- Brand:
- TE Connectivity
Subtotal (1 box of 35 units)*
£141.65
(exc. VAT)
£169.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £141.65 | £4.047 |
*price indicative
- RS Stock No.:
- 474-434
- Distrelec Article No.:
- 304-59-263
- Mfr. Part No.:
- 1986722-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 5 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.048mm | |
| Number of Rows | 1 | |
| Current | 11A | |
| Minimum Wire Size mm² | 0.05mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Voltage | 30V | |
| Series | Buchanan | |
| Width | 15.24mm | |
| Standards/Approvals | UL | |
| Depth | 20.75mm | |
| Length | 19.05mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 5 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.048mm | ||
Number of Rows 1 | ||
Current 11A | ||
Minimum Wire Size mm² 0.05mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation Vertical | ||
Colour Green | ||
Voltage 30V | ||
Series Buchanan | ||
Width 15.24mm | ||
Standards/Approvals UL | ||
Depth 20.75mm | ||
Length 19.05mm | ||
- COO (Country of Origin):
- IT
The TE Connectivity 5 Position PCB Terminal Block is engineered for optimised wire-to-board connections, providing efficiency in both power and signal applications. This innovative product boasts a 3.81 mm centreline, allowing for compact arrangements in circuit designs while supporting wire sizes from 30 to 14 AWG. With its single-row configuration and 180° wire entry angle, installation is notably simplified. The terminal block is designed to withstand operating voltages of up to 300 VAC, ensuring reliability in various environments. Its robust construction features low halogen materials, making it compliant with stringent environmental standards, while the vertical orientation accommodates versatile mounting options, perfect for a range of applications. This product is your go-to solution for enhanced connectivity and compliance in your electrical projects.
Constructed with a durable PA 66 housing material for long-lasting performance
Lever colour in vibrant orange for easy identification during installation
Push-in spring terminal method ensures a secure and reliable wire connection
Side stackable design enables efficient use of space in multi-connector setups
Operating temperature range from -40 to 65 °C ensures versatility in harsh conditions
Packaged in boxes with a quantity of 150 for convenient bulk purchasing
Tin plating on contact mating area enhances conductivity and reduces corrosion
