Schneider Electric Mureva Blue 1 Gang Electrical Socket, 16 A Indoor, Type E
- RS Stock No.:
- 275-8815
- Mfr. Part No.:
- PKN61B
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£9.68
(exc. VAT)
£11.62
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 56 left, shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.68 |
*price indicative
- RS Stock No.:
- 275-8815
- Mfr. Part No.:
- PKN61B
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Electrical Socket | |
| Number of Gangs | 1 | |
| Colour | Blue | |
| Indoor/Outdoor | Indoor | |
| Socket Type | Type E | |
| Pole Configuration | 2P+E | |
| Mount Type | Flush | |
| Current Rating | 16 A | |
| Voltage | 250V | |
| Finish | Gloss | |
| IP Rating | IP54 | |
| Screwed/Screwless | Screwed | |
| Overall Depth | 45.2 mm | |
| Overall Height | 85mm | |
| Range | Mureva | |
| Overall Width | 65mm | |
| Standards/Approvals | IEC 60309-1, IEC 60309-2 | |
| Series | Mureva | |
| Terminal Type | Captive Screw | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Electrical Socket | ||
Number of Gangs 1 | ||
Colour Blue | ||
Indoor/Outdoor Indoor | ||
Socket Type Type E | ||
Pole Configuration 2P+E | ||
Mount Type Flush | ||
Current Rating 16 A | ||
Voltage 250V | ||
Finish Gloss | ||
IP Rating IP54 | ||
Screwed/Screwless Screwed | ||
Overall Depth 45.2 mm | ||
Overall Height 85mm | ||
Range Mureva | ||
Overall Width 65mm | ||
Standards/Approvals IEC 60309-1, IEC 60309-2 | ||
Series Mureva | ||
Terminal Type Captive Screw | ||
RoHS Status: Exempt
- COO (Country of Origin):
- AT

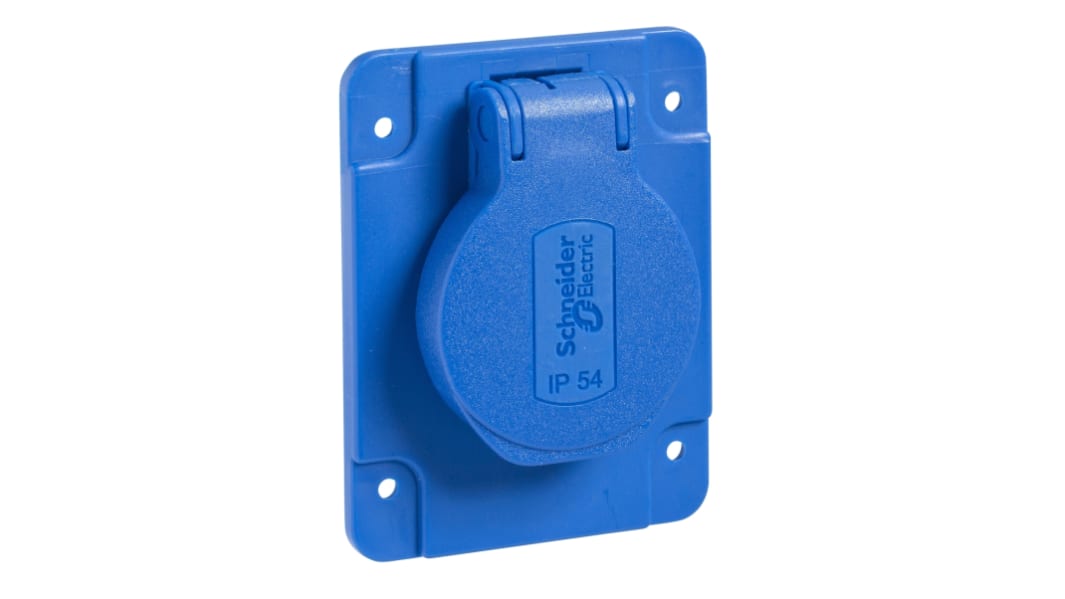

The Schneider Electric PratiKa rear connected domestic French standard socket with captive screws connection is straight panel-mounted. This panel mounted socket can be fitted directly on Kaedra enclosures or on wall boxes. The colour of the socket is blue to easily identify the operating voltage.
Toxic heavy metal free
Mercury free
