- RS Stock No.:
- 177-0539
- Mfr. Part No.:
- 16335
- Brand:
- Volkel
2 In stock - FREE next working day delivery available
Added
Price Each
£50.93
(exc. VAT)
£61.12
(inc. VAT)
| Units | Per unit |
| 1 + | £50.93 |
Calibration Options:
- RS Stock No.:
- 177-0539
- Mfr. Part No.:
- 16335
- Brand:
- Volkel
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

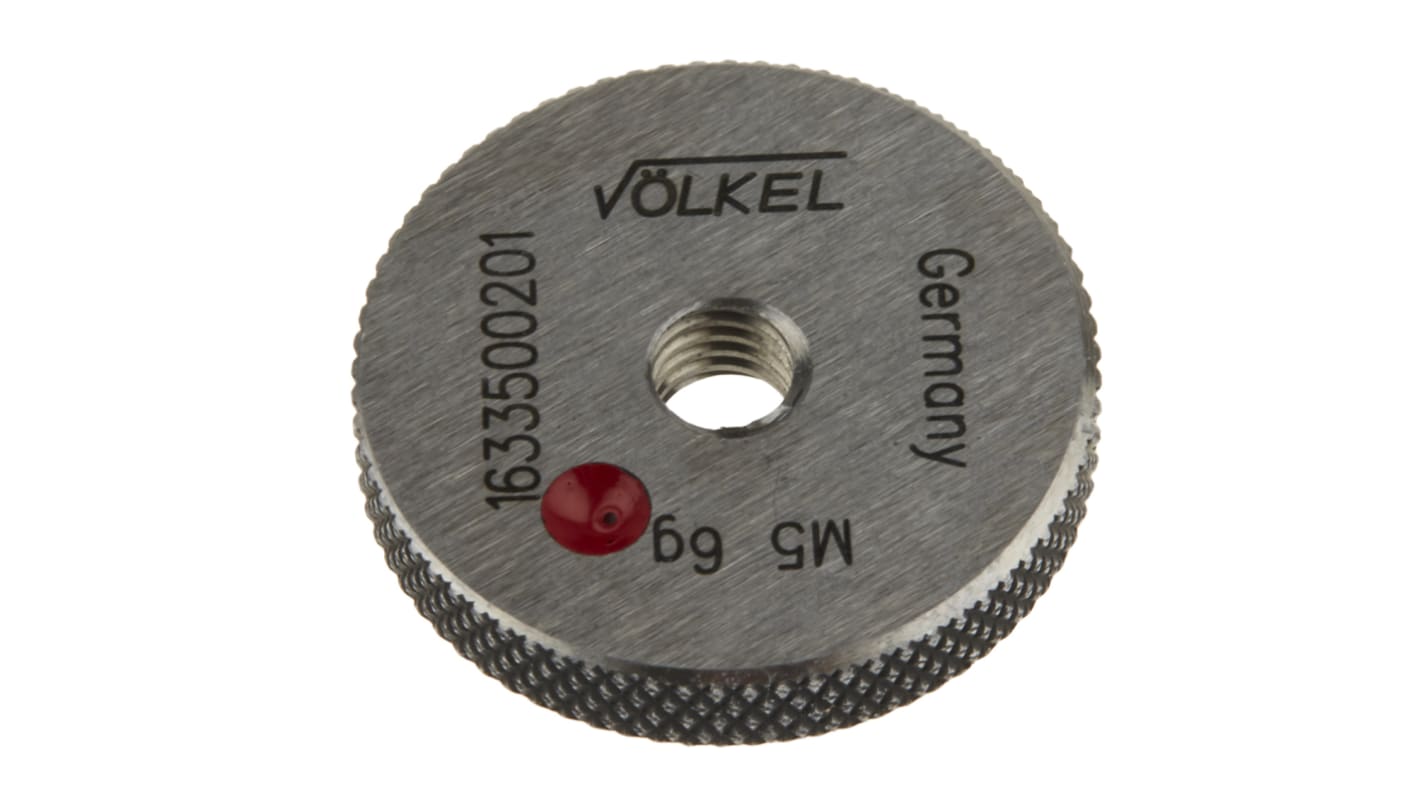

Volkel No-Go Ring Gauge
The Volkel No-Go ring gauge M5x0.8 is calibrated at measurement laboratory using the IAC thread scanners. This No-Go thread gauge is marked in red. This thread NO-GO ring gauge must not screw into the part by hand by more than two threads. The reference temperature for parts and gauge is 20°C. It is made from high-quality raw material. This gauge is mostly used as an inspection tool.
Features and Benefits
• Metric measurement system
• 6g tolerance
• High durability and reliability
• Compact size and rugged
• Easy to use
• Accurate
• 6g tolerance
• High durability and reliability
• Compact size and rugged
• Easy to use
• Accurate
Certifications
• ISO1502
• DIN13
• DIN13
Certifications
• ISO1502
• DIN13
• DIN13
Specifications
Attribute | Value |
|---|---|
| Plug/Ring | Ring |
| Gauge Type | Ring Thread Gauge |
| Go / No Go | No Go |
| Thread Size | M5 x 0.8 |
| Pitch Diameter | 0.8mm |
| Tolerance | 6g |
| Imperial or Metric | Metric |
