Volkel M5 x 0.8 Plug Thread Gauge Plug Gauge, 0.8mm Pitch Diameter
- RS Stock No.:
- 177-0527
- Mfr. Part No.:
- 16016
- Brand:
- Volkel
Subtotal (1 unit)*
£54.41
(exc. VAT)
£65.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £54.41 |
*price indicative
Calibration Options:
- Calibration Type:
- PreCal
- RS Stock No.
- 189-3338
Each
£82.38
(exc. VAT)
£98.86
(inc. VAT)
- RS Stock No.:
- 177-0527
- Mfr. Part No.:
- 16016
- Brand:
- Volkel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Volkel | |
Plug/Ring | Plug | |
Gauge Type | Plug Thread Gauge | |
Go / No Go | Go/No Go | |
Thread Size | M5 x 0.8 | |
Pitch Diameter | 0.8mm | |
Tolerance | 6H | |
Single or Double Ended | Double | |
Imperial or Metric | Metric | |
Select all | ||
---|---|---|
Brand Volkel | ||
Plug/Ring Plug | ||
Gauge Type Plug Thread Gauge | ||
Go / No Go Go/No Go | ||
Thread Size M5 x 0.8 | ||
Pitch Diameter 0.8mm | ||
Tolerance 6H | ||
Single or Double Ended Double | ||
Imperial or Metric Metric | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

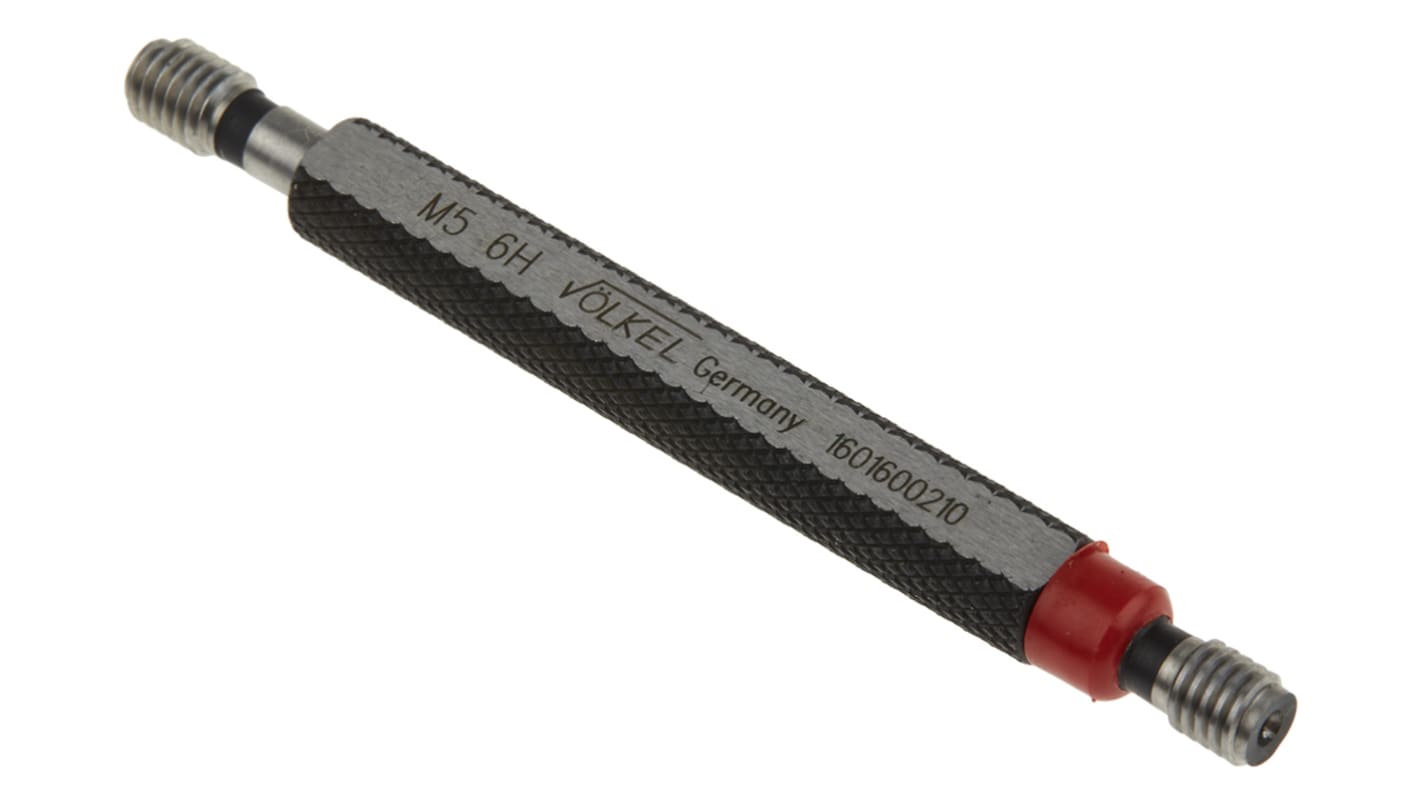

Volkel Go No-Go Plug Gauge
The Volkel Go No-Go Plug Gauge M5x0.8 is calibrated at measurement laboratory using IAC thread scanners. The scrap side of this thread plug gauge is marked with a red ring. This gauge must screw into the part by hand more than two threads. If unable to do so, the thread does not meet the requested standards. The reference temperature for parts and gauge is 20°C. It is made from high-quality raw material. This gauge is mostly used as an inspection tool.
Features and Benefits
• Metric measurement system
• 6H tolerance
• High durability and reliability
• Compact in size and rugged
• Easy to use
• Accurate
• Double ended gauge
• 6H tolerance
• High durability and reliability
• Compact in size and rugged
• Easy to use
• Accurate
• Double ended gauge
Certifications
• ISO1502
• DIN13/DIN2240
• DIN13/DIN2240
Certifications
• ISO1502
• DIN13/DIN2240
• DIN13/DIN2240
