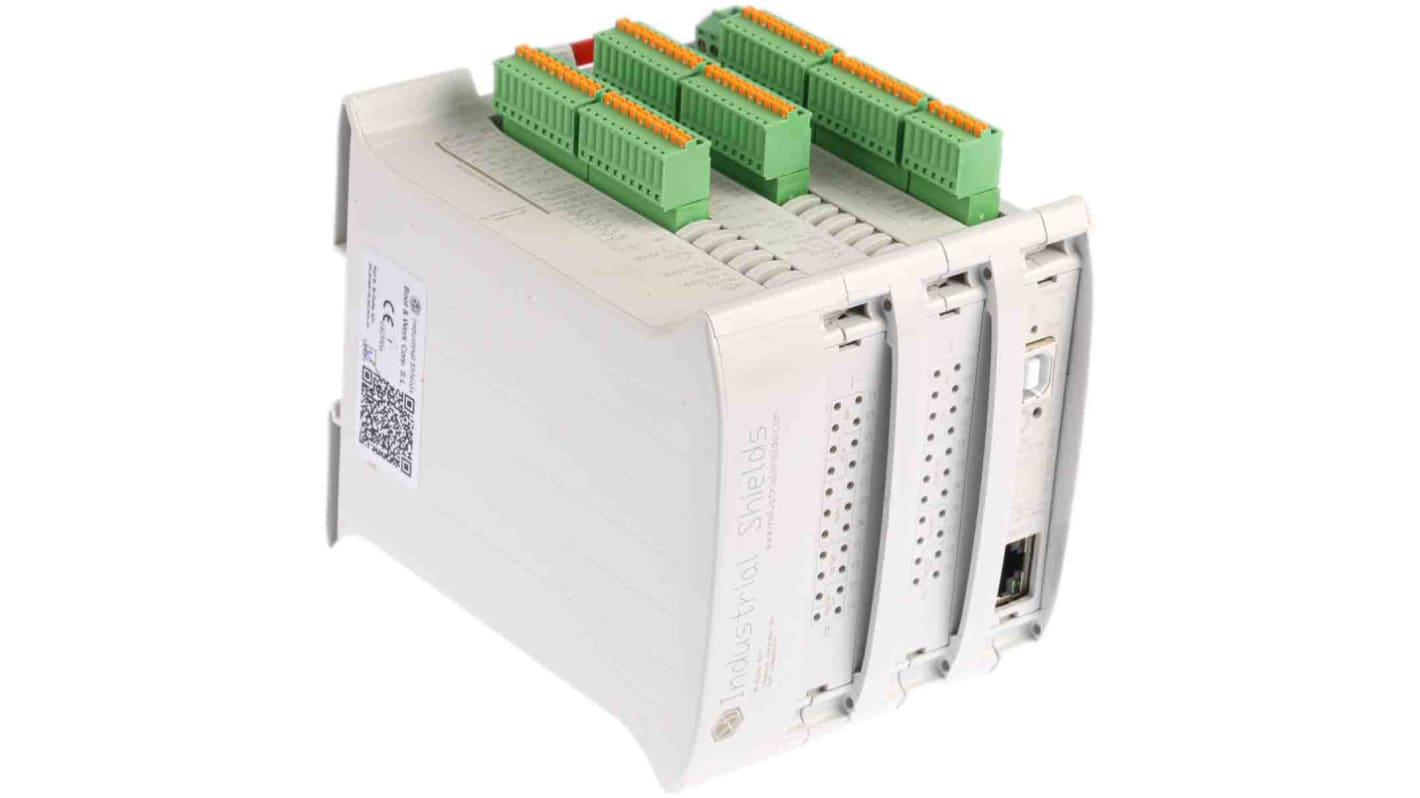

Industrial Shields M-Duino Series PLC CPU, Analogue, Digital Output, 26-Input, Analogue, Digital Input
- RS Stock No.:
- 885-0929
- Mfr. Part No.:
- IS.MD42.base
- Brand:
- Industrial Shields
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£304.43
(exc. VAT)
£365.32
(inc. VAT)
- RS Stock No.:
- 885-0929
- Mfr. Part No.:
- IS.MD42.base
- Brand:
- Industrial Shields
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Industrial Shields | |
| Manufacturer Series | M-Duino | |
| Number of Inputs | 26 | |
| Output Type | Analogue, Digital | |
| Input Type | Analogue, Digital | |
| Number of Outputs | 16 | |
| Voltage Category | 12 → 24 V dc | |
| Network Type | Ethernet, ModBus | |
| Minimum Operating Temperature | 0°C | |
| Depth | 129mm | |
| Memory | 259 (Flash) kB, 4 (EEPROM) kB, 8 (SRAM) kB, 8 (used by bootloader) kB | |
| Length | 101mm | |
| Programming Interface | Computer | |
| Program Capacity | 256 (8 used by bootloader) kB | |
| Communication Port Type | Ethernet, I2C, RS232, RS485, SPI, TTL, USB | |
| Dimensions | 101 x 100 x 129 mm | |
| Maximum Operating Temperature | +45°C | |
| Number of Communication Ports | 7 | |
| Programming Language Used | Arduino IDE | |
| Mounting Type | DIN Rail | |
| Width | 100mm | |
| Select all | ||
|---|---|---|
Brand Industrial Shields | ||
Manufacturer Series M-Duino | ||
Number of Inputs 26 | ||
Output Type Analogue, Digital | ||
Input Type Analogue, Digital | ||
Number of Outputs 16 | ||
Voltage Category 12 → 24 V dc | ||
Network Type Ethernet, ModBus | ||
Minimum Operating Temperature 0°C | ||
Depth 129mm | ||
Memory 259 (Flash) kB, 4 (EEPROM) kB, 8 (SRAM) kB, 8 (used by bootloader) kB | ||
Length 101mm | ||
Programming Interface Computer | ||
Program Capacity 256 (8 used by bootloader) kB | ||
Communication Port Type Ethernet, I2C, RS232, RS485, SPI, TTL, USB | ||
Dimensions 101 x 100 x 129 mm | ||
Maximum Operating Temperature +45°C | ||
Number of Communication Ports 7 | ||
Programming Language Used Arduino IDE | ||
Mounting Type DIN Rail | ||
Width 100mm | ||
- COO (Country of Origin):
- ES
Industrial Shields PLC CPUs
The Industrial Shields programmable logic controller (PLC) has 26 inputs and 16 outputs. The controller has a Modbus networking computer interface device. It has a program capacity of 256kB. The M-Duino is a connectable PLC based on open-source hardware (OSH) technology. This PLC can be programmed using the Arduino IDE platform. It is available with different input/outputs units. It is possible to get the immediate status of all parameters, data inputs and outputs of the PLC through the USB port from the computer. All the components can be configured to work as a master or slave in its master-slave connection via I2C.
Features and Benefits
Programming via USB port
Hardware is realized with an Arduino Leonardo
Safety industrial communications
I2C communication to connect up to 127 elements
Serial port is RS232/RS485
Power supply ranges between 12 and 24VDC
DIN rail mounting
Communication port types are: Ethernet, I2C, RS232, RS485, SPI, TTL and USB
Operating temperature ranges between 0°C and 45°C
Hardware is realized with an Arduino Leonardo
Safety industrial communications
I2C communication to connect up to 127 elements
Serial port is RS232/RS485
Power supply ranges between 12 and 24VDC
DIN rail mounting
Communication port types are: Ethernet, I2C, RS232, RS485, SPI, TTL and USB
Operating temperature ranges between 0°C and 45°C
Applications
Industrial automation
Robotics
Automobile industry
Robotics
Automobile industry
