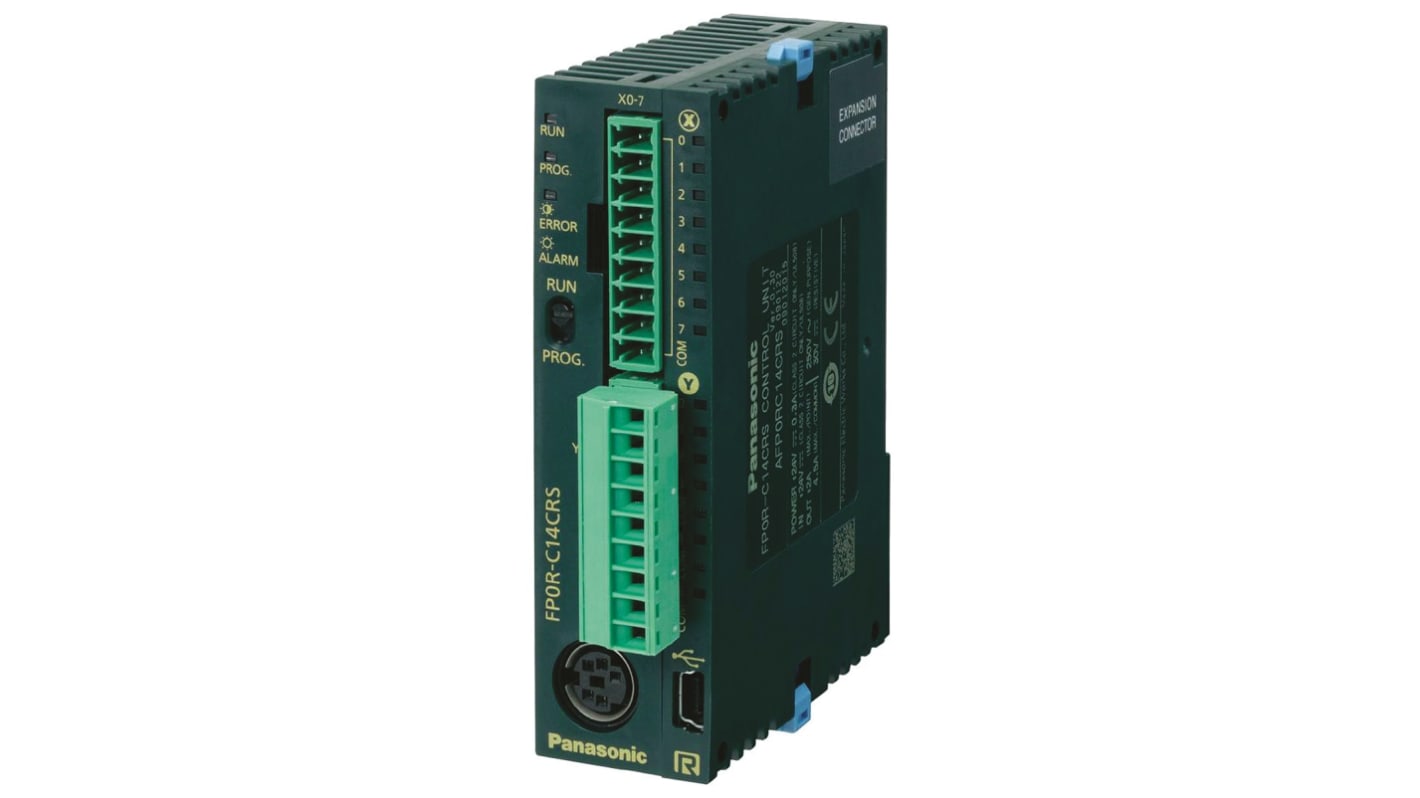

Panasonic AFPOR Series Series PLC CPU for Use with FP0R Series, NPN Output, 8-Input, Sink, Source Input
- RS Stock No.:
- 815-5546
- Mfr. Part No.:
- AFP0RC16T
- Brand:
- Panasonic
Image representative of range
Discontinued
- RS Stock No.:
- 815-5546
- Mfr. Part No.:
- AFP0RC16T
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Manufacturer Series | AFPOR Series | |
| Number of Inputs | 8 | |
| Output Type | NPN | |
| For Use With | FP0R Series | |
| Input Type | Sink, Source | |
| Number of Outputs | 8 | |
| Voltage Category | 24 V dc | |
| Network Type | Ethernet | |
| Mounting Type | Surface Mount | |
| Programming Language Used | C, Ladder, SFC, ST | |
| Number of Communication Ports | 2 | |
| Output Current | 200 mA | |
| Programming Interface | Computer | |
| Minimum Operating Temperature | 0°C | |
| Communication Port Type | RS232, RS485 | |
| Display Included | Yes | |
| Program Capacity | 16 Steps | |
| Depth | 90mm | |
| Length | 25mm | |
| Maximum Operating Temperature | +55°C | |
| Width | 60mm | |
| Memory | 148 kB | |
| Dimensions | 25 x 60 x 90 mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Manufacturer Series AFPOR Series | ||
Number of Inputs 8 | ||
Output Type NPN | ||
For Use With FP0R Series | ||
Input Type Sink, Source | ||
Number of Outputs 8 | ||
Voltage Category 24 V dc | ||
Network Type Ethernet | ||
Mounting Type Surface Mount | ||
Programming Language Used C, Ladder, SFC, ST | ||
Number of Communication Ports 2 | ||
Output Current 200 mA | ||
Programming Interface Computer | ||
Minimum Operating Temperature 0°C | ||
Communication Port Type RS232, RS485 | ||
Display Included Yes | ||
Program Capacity 16 Steps | ||
Depth 90mm | ||
Length 25mm | ||
Maximum Operating Temperature +55°C | ||
Width 60mm | ||
Memory 148 kB | ||
Dimensions 25 x 60 x 90 mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
FP0R Micro PLC
Super compact range of PLC which can offer superior expansion options and still provide a space-saving option. Expansion units for the FP0R can be directly fitted to the control unit eliminating the need for specialist expansion cables and backplanes etc. This also ensures the PLC stays compact, but keeps the cost down too
Supplied in both relay and transistor output types
Comes equipped with various I/O configurations in 10, 14, 16 & 32 point options
10,000 steps program memory
Battery backed RAM
Modem compatible
Overwrite RUN mode function allows for program creation/editing during operation eliminating the need for machinery downtime to make adjustments
LED indication of I/O to make verification simple
Comes equipped with various I/O configurations in 10, 14, 16 & 32 point options
10,000 steps program memory
Battery backed RAM
Modem compatible
Overwrite RUN mode function allows for program creation/editing during operation eliminating the need for machinery downtime to make adjustments
LED indication of I/O to make verification simple
Thanks to the super-compact nature of the FP0R series the units can be used in a comprehensive range of applications including:
Relay sequence replacement
Auto-stockers
Parking meters
In-house detectors
Conveyor control
Parts feeders
Food processing and packaging machinery
Relay sequence replacement
Auto-stockers
Parking meters
In-house detectors
Conveyor control
Parts feeders
Food processing and packaging machinery
Note
Separation between the power supply and the CPU is required to provide adequate heat dissipation
