Select all	Attribute	Value
	Brand	Allen Bradley
	Series	Bulletin 2080
	Product Type	Logic Controller
	Number of Inputs	12
	Output Type	Relay
	Input Type	Digital
	Number of Outputs	8
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	65°C
	Length	100mm
	Standards/Approvals	KC, CE, C-Tick, cULus
	Depth	90mm
	Width	80mm
	Programming Language Used	Function Block Diagram (FBD), Ladder Logic, Structured Text (ST)
	Mount Type	DIN Rail
	Communication Port Type	RS232, RS485
	Program Capacity	10kB
	Display Included	Yes
	Output Current	1A
	Number of Communication Ports	1
	Battery Backup	No

	Select all
	Brand Allen Bradley
	Series Bulletin 2080
	Product Type Logic Controller
	Number of Inputs 12
	Output Type Relay
	Input Type Digital
	Number of Outputs 8
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 65°C
	Length 100mm
	Standards/Approvals KC, CE, C-Tick, cULus
	Depth 90mm
	Width 80mm
	Programming Language Used Function Block Diagram (FBD), Ladder Logic, Structured Text (ST)
	Mount Type DIN Rail
	Communication Port Type RS232, RS485
	Program Capacity 10kB
	Display Included Yes
	Output Current 1A
	Number of Communication Ports 1
	Battery Backup No

Datasheet 2080-LC20-20QBBR

COO (Country of Origin):: SG

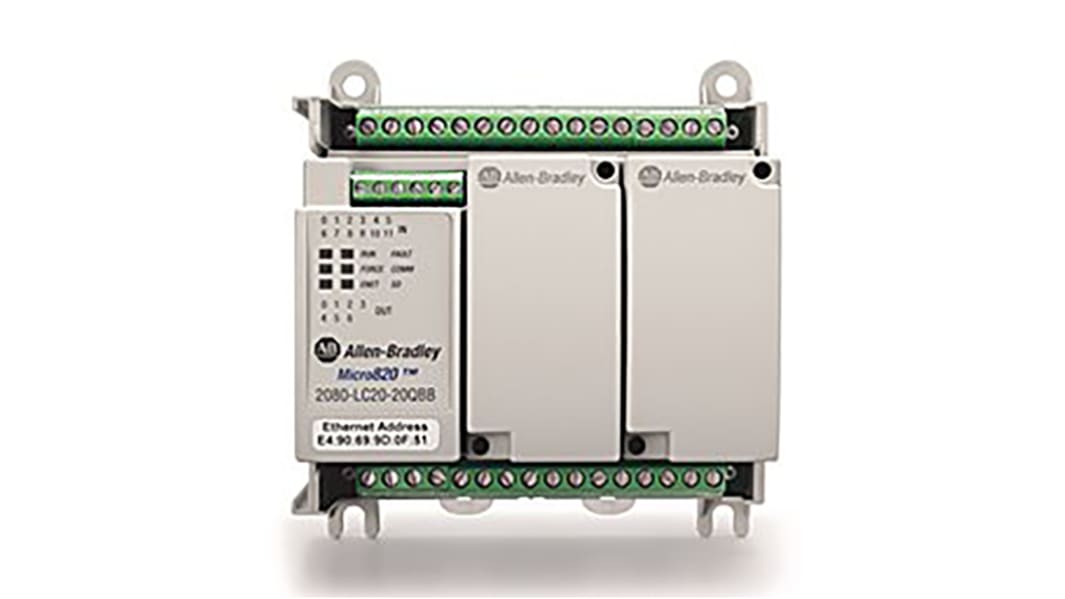

Our Micro820® Programmable Logic Controller Systems include a nano-sized footprint and are designed for small standalone machine control and remote automation applications that require flexible communications and I/O capabilities. These controllers support up to 36 I/O points with many embedded features such as Ethernet, microSD slot for recipe and data log, and analogue I/O.

Offers 20-point controllers

Provides embedded 0...10V non-isolated 4 channel analog input and 1 channel analog output for speed control of an AC drive

Provides embedded communications via non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port

Communicates via EtherNet/IP™

Provides embedded support for up to four 10k thermistor temperature inputs

Supports program download through USB with an optional 3.5-in. Remote LCD

Supports up to two Micro800™ Plug-in Modules

Supports microSD™ card for program transfer, datalog, and recipe management

Applications

Air handling unit

Pump control with SMS plug-in

Allen Bradley Bulletin 2080 Series Logic Controller, Relay Output, 12-Input, Digital Input
