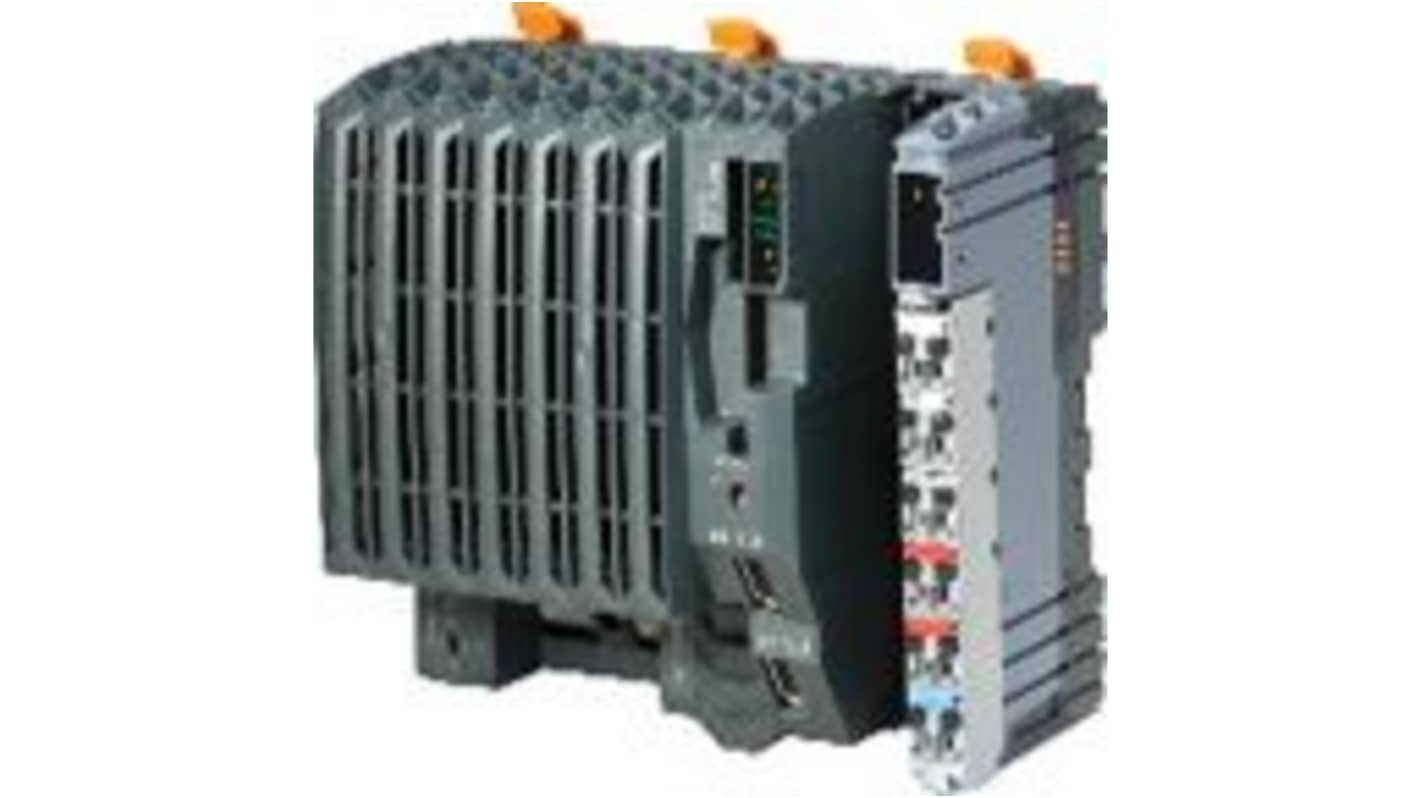

B&R X20 Series Controller, Ethernet Output, 24 V dc Input
- RS Stock No.:
- 589-119
- Mfr. Part No.:
- X20CP1685
- Brand:
- B&R
Subtotal (1 unit)*
£2,224.34
(exc. VAT)
£2,669.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,224.34 |
*price indicative
- RS Stock No.:
- 589-119
- Mfr. Part No.:
- X20CP1685
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Series | X20 | |
| Product Type | Controller | |
| Output Type | Ethernet | |
| Input Type | 24 V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 85mm | |
| Standards/Approvals | UL cULus E115267, UKCA, II 3G Ex nA nC IIA T5 Gc, HazLoc cCSAus 244665, DNV, CE, ATEX Zone 2 | |
| Output Current | 0.5A | |
| Mount Type | Top Hat Rail | |
| Supply Voltage | 24 V dc | |
| Program Capacity | 1MB | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Series X20 | ||
Product Type Controller | ||
Output Type Ethernet | ||
Input Type 24 V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Depth 85mm | ||
Standards/Approvals UL cULus E115267, UKCA, II 3G Ex nA nC IIA T5 Gc, HazLoc cCSAus 244665, DNV, CE, ATEX Zone 2 | ||
Output Current 0.5A | ||
Mount Type Top Hat Rail | ||
Supply Voltage 24 V dc | ||
Program Capacity 1MB | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH controller is based on Intel Atom processor technology and used for applications with the highest performance requirements. It rounds off the top end of the X20 controller product family. The basic configuration includes USB, Ethernet, POWERLINK V2 and removable CompactFlash. The standard Ethernet interface supports gigabit communication. For even more real-time network performance, the onboard POWERLINK interface supports poll-response chaining mode.
1 slot for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
CompactFlash as removable application memory
Fanless
