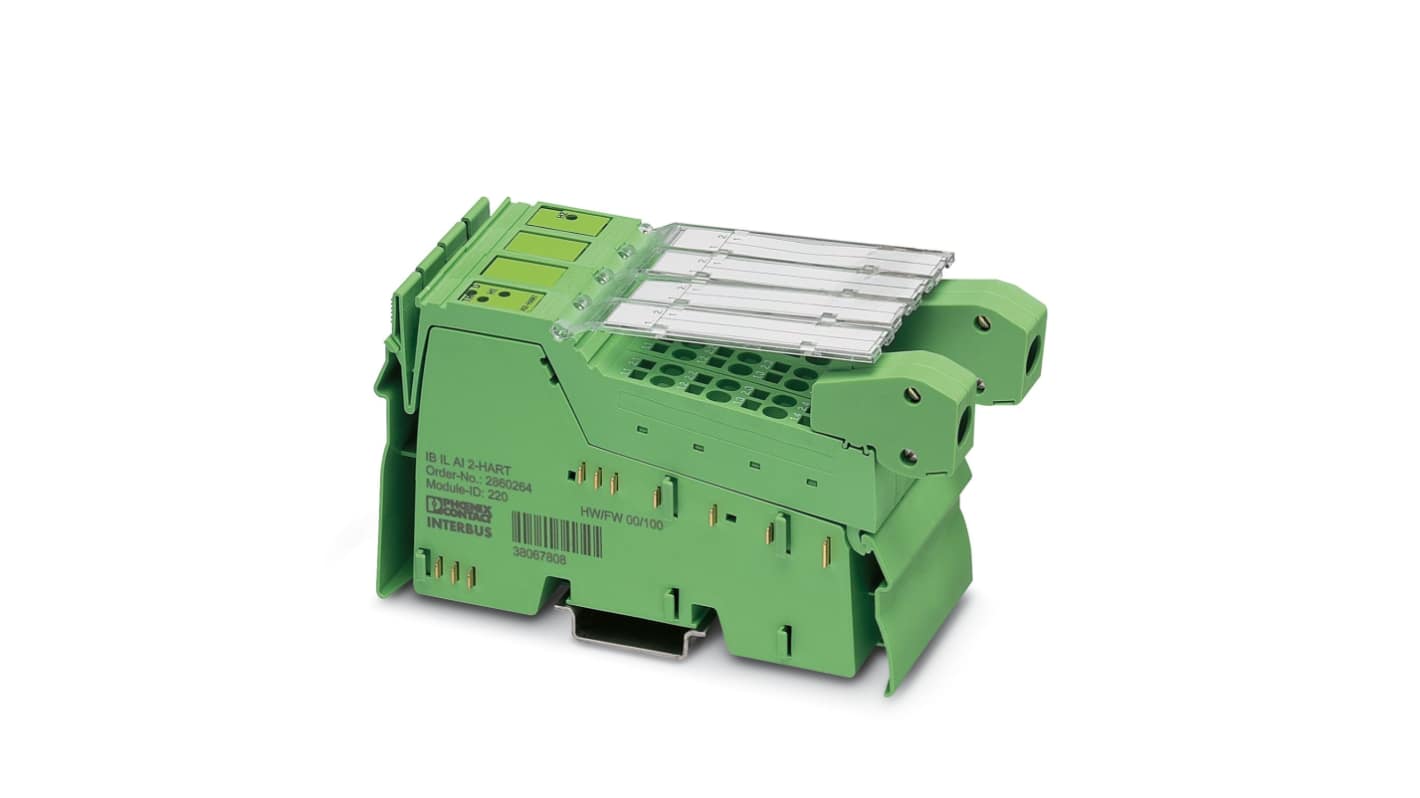

Phoenix Contact Analog Input Module, Analogue
- RS Stock No.:
- 855-1354
- Mfr. Part No.:
- 2862149
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£494.06
(exc. VAT)
£592.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £494.06 |
*price indicative
- RS Stock No.:
- 855-1354
- Mfr. Part No.:
- 2862149
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Accessory Type | Analogue Input Module | |
Input Type | Analogue | |
Number of Inputs | 2 | |
Maximum Operating Temperature | +55°C | |
Dimensions | 135 x 48.8 x 71.5 mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Accessory Type Analogue Input Module | ||
Input Type Analogue | ||
Number of Inputs 2 | ||
Maximum Operating Temperature +55°C | ||
Dimensions 135 x 48.8 x 71.5 mm | ||
- COO (Country of Origin):
- DE
Inline, Analog input terminal, Analog inputs: 2, 4 mA ... 20 mA, 0 mA ... 25 mA, connection method: 2-conductor, transmission speed in the local bus: 500 kbps, HART functionality, HART protocol transmission, degree of protection: IP20, including Inline connectors and marking fields
A hand-held operator panel can be connected
Resolution depends on the representation format and the measuring range
Measured value acquisition with 16-bit resolution
Point-to-point and multi-drop connections possible
FDT/DTM support
Both channels preset to the 4 mA ... 20 mA measuring range and IB IL format
Measured values can be represented in three different formats
Polling and burst modes
Two differential signal inputs for current sensors
Connection of sensors in 2-conductor technology (active and passive sensors)
Current ranges: 4 mA ... 20 mA, 0 mA ... 25 mA
Transmission of the HART protocol with PCP
