Siemens SIMATIC Series Bus Connector for Use with SIMATIC DP PROFIBUS

View all PLC Accessories

Subtotal (1 unit)*

£47.47

(exc. VAT)

£56.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.47

*price indicative

Shop Siemens SIRIUS
Discover our Siemens SIRIUS products. Command, Control, Monitor and start your motors the Hybrid way.
Find out more
RS Stock No.:
264-1231
Mfr. Part No.:
6ES79720BA700XA0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

Bus Connector

Accessory Type

Profibus DP Connector

Series

SIMATIC

For Use With

SIMATIC DP PROFIBUS

IP Rating

IP20

Hazardous Area Certification

NO

Standards/Approvals

IEC 81346-2, RoHS, UL

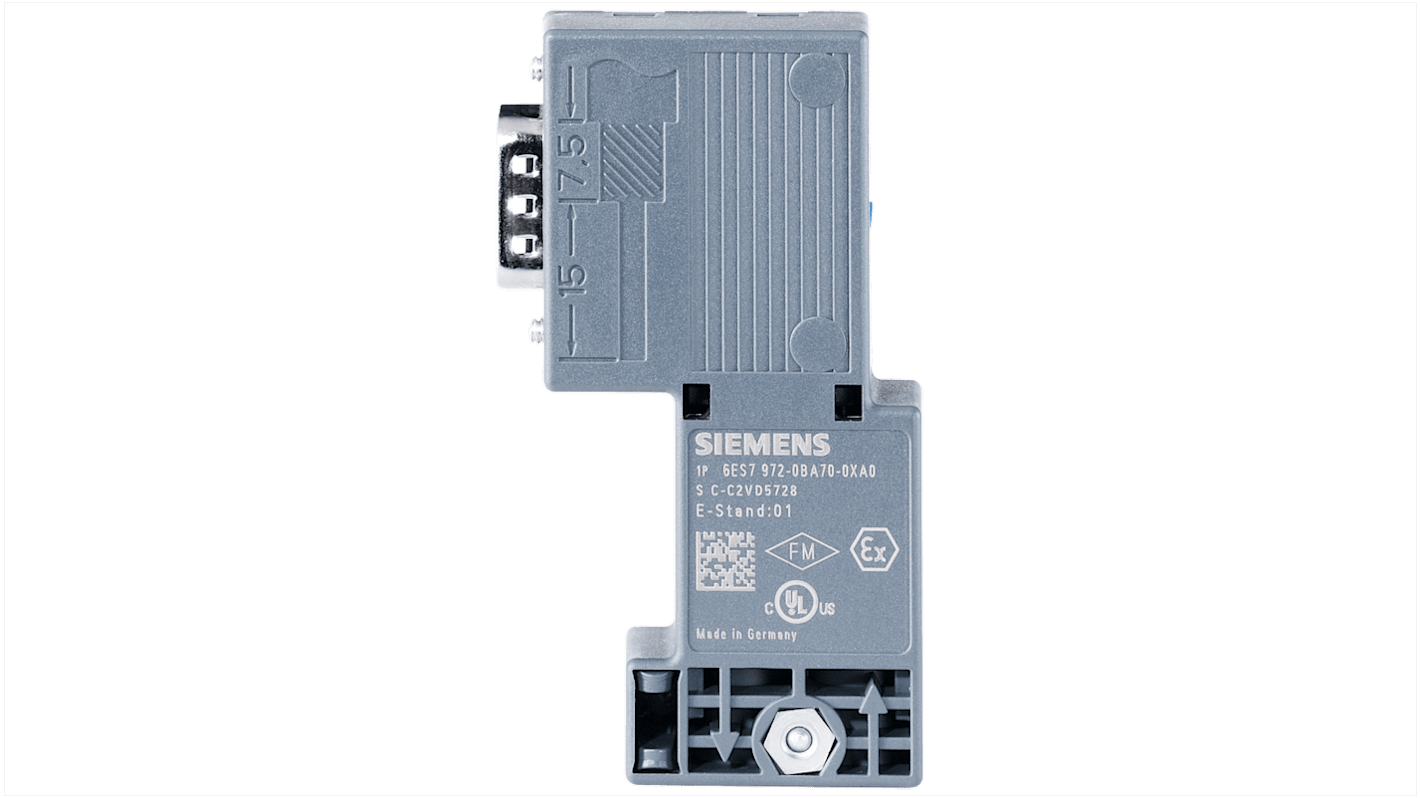

Siemens SIMATIC Series Bus Connector, IP20, Profibus DP Connector Type - 6ES79720BA700XA0


This bus connector provides a Compact Interface for linking PROFIBUS stations to a PROFIBUS bus cable within SIMATIC DP installations. It delivers a right-angled cable exit and supports RS‑485 FastConnect wiring for fieldbus networks up to 12 Mbit/s. The enclosure is silicone‑free and designed for panel or device mounting where a detachable PG socket is not required.

Features & Benefits


• FastConnect insulation displacement reduces wiring time and errors
• Integrated switchable terminating resistor enables inline bus isolation
• 9‑pin sub‑D port simplifies connection to network equipment
• Rated IP20 for protected indoor control‑cabinet environments
• Operates from −25°C to +60°C for typical industrial conditions

**Applications**


• Suitable for connecting distributed I/O modules to PROFIBUS trunks
• Ideal for retrofit of control panels using SIMATIC DP components
• Used with PROFIBUS cable runs requiring 90° cable routing
• Can be used for fieldbus segments needing switchable termination

How does the terminating resistor function during network reconfiguration?


A slide switch activates a built‑in resistor combination

when engaged it isolates the outgoing bus, allowing safe disconnection and reconfiguration without removing the connector.

What cable types does the connector accept for FastConnect?


The contact system accepts two‑core PROFIBUS FastConnect installation cables via integrated insulation displacement contacts, removing the need to strip conductors.

How is mechanical fixation achieved on equipment?


The housing is secured with a screwed joint and includes strain relief to maintain cable retention under mechanical load.
