Siemens SIMATIC S7 Series Connecting Cable for Use with SIMATIC S7-300 / S7-1500 Digital I/O Modules
- RS Stock No.:
- 253-0700
- Mfr. Part No.:
- 6ES79230BA500CB0
- Brand:
- Siemens
Subtotal (1 unit)*
£22.22
(exc. VAT)
£26.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.22 |
*price indicative
- RS Stock No.:
- 253-0700
- Mfr. Part No.:
- 6ES79230BA500CB0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Accessory Type | Connector Module | |
| Product Type | Connecting Cable | |
| Series | SIMATIC S7 | |
| For Use With | SIMATIC S7-300 / S7-1500 Digital I/O Modules | |
| Standards/Approvals | IEC | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Accessory Type Connector Module | ||
Product Type Connecting Cable | ||
Series SIMATIC S7 | ||
For Use With SIMATIC S7-300 / S7-1500 Digital I/O Modules | ||
Standards/Approvals IEC | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

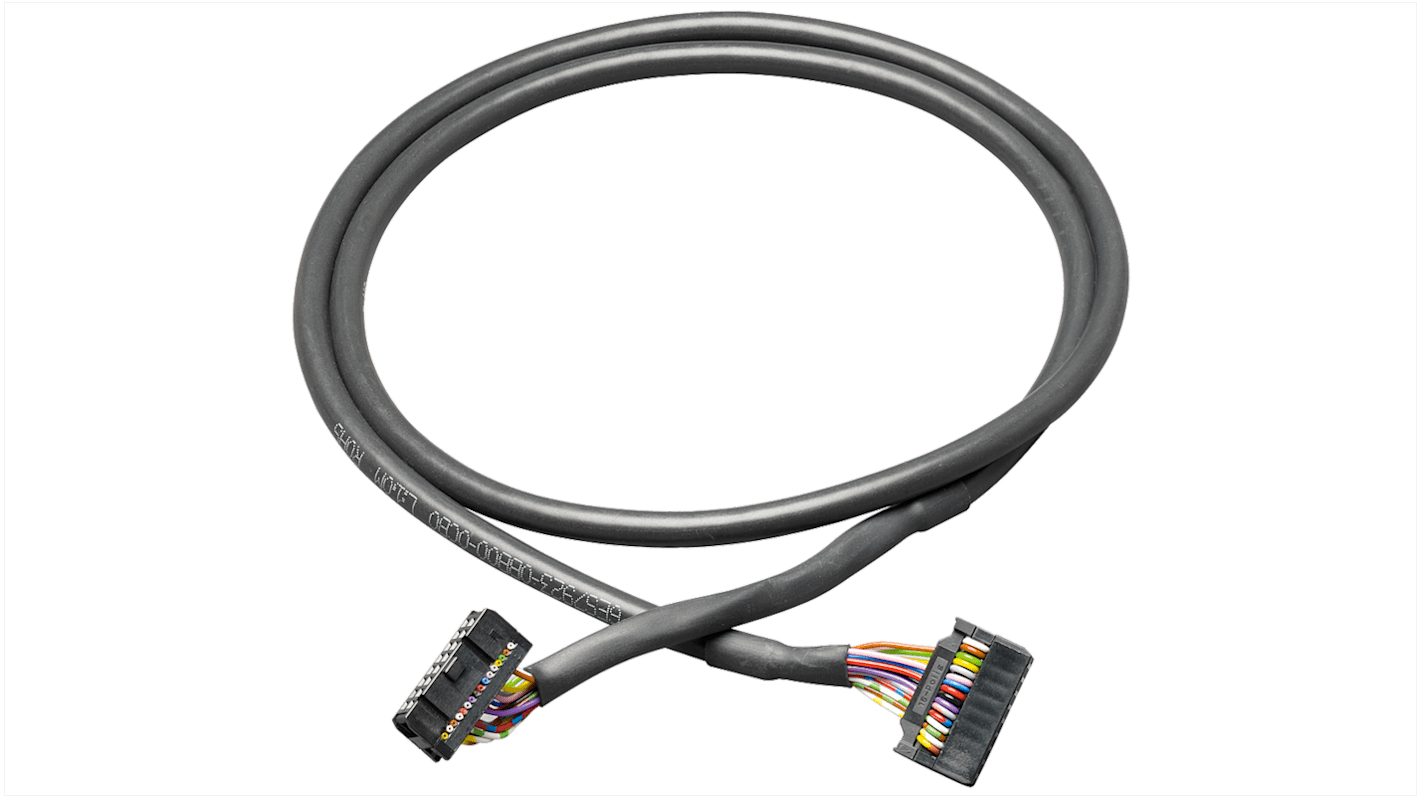

Siemens SIMATIC S7 Series Connecting Cable, For Use With SIMATIC S7-300 / S7-1500 Digital I/O Modules - 6ES79230BA500CB0
This connecting cable links front connector modules to connection modules in SIMATIC S7 installations, providing a pre-assembled, unshielded wiring option for digital I/O integration. It is specified for use with S7-300 and S7-1500 controllers and designed to carry 24V nominal DC signals within typical industrial ambient temperatures.
Features & Benefits
• 16-conductor IDC connectors enable straightforward module-to-module hookup
• 0.14mm² conductor cross-section supports standard digital signal levels
• 0.5m pre-assembled length reduces on-site assembly time
• PVC-sheathed round cable offers abrasion resistance in panel runs
• 8 independent channels permit parallel digital I/O transmission
• 0.14mm² conductor cross-section supports standard digital signal levels
• 0.5m pre-assembled length reduces on-site assembly time
• PVC-sheathed round cable offers abrasion resistance in panel runs
• 8 independent channels permit parallel digital I/O transmission
**Applications**
• Suitable for connecting front connector modules to connection modules
• Used with Digital I/O modules in automation cabinets
• Ideal for wiring S7-300 PLC input cards and output cards
• Can be used for short interconnects within control racks
• Used with Digital I/O modules in automation cabinets
• Ideal for wiring S7-300 PLC input cards and output cards
• Can be used for short interconnects within control racks
What voltage range can it handle in control systems?
The cable is intended for DC operation with a rated voltage of 24V and a maximum of 60V, suitable for typical PLC digital circuits.
How does it perform under temperature variation?
It operates reliably between 0°C and 60°C and can be stored between -30°C to +70°C without degradation.
What physical characteristics affect routing inside panels?
The cable is a round 6.5mm-diameter assembly with a black PVC sheath and weighs approximately 0.095kg.
How are connections MADE at each end?
Both ends terminate in 16‑pole connector strips using IDC contacts for direct, solderless terminations.
Is it intended for analogue signal transmission?
No, the construction and conductor arrangement are specified for digital signal transmission only.
