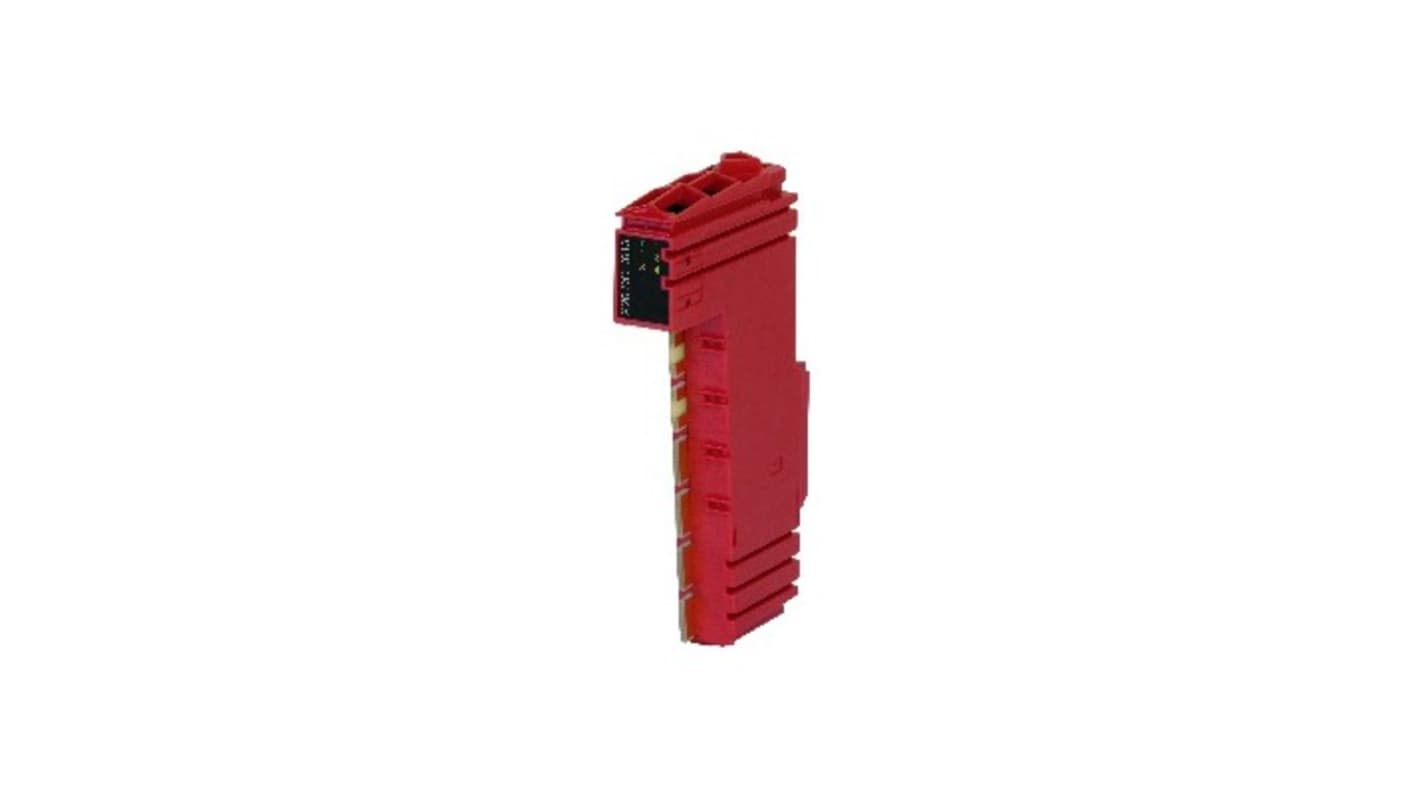

B&R X20 Series Digital I/O Module for Use with X20 Series
- RS Stock No.:
- 590-847
- Mfr. Part No.:
- X20DO4613
- Brand:
- B&R
Subtotal (1 unit)*
£193.80
(exc. VAT)
£232.56
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £193.80 |
*price indicative
- RS Stock No.:
- 590-847
- Mfr. Part No.:
- X20DO4613
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Accessory Type | Digital Output Module | |
| Product Type | Digital I/O Module | |
| Series | X20 | |
| For Use With | X20 Series | |
| IP Rating | IP20 | |
| Standards/Approvals | EN 60529, UKCA, CE | |
| Hazardous Area Certification | FTZÚ 09 ATEX 0083X, II 3G Ex nA nC IIA T5 Gc, ATEX Zone 2, Groups ABCD, UL cULus E115267 Industrial Control Equipment Hazloc, Division 2, HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I | |
| Supply Voltage | 230 V | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Accessory Type Digital Output Module | ||
Product Type Digital I/O Module | ||
Series X20 | ||
For Use With X20 Series | ||
IP Rating IP20 | ||
Standards/Approvals EN 60529, UKCA, CE | ||
Hazardous Area Certification FTZÚ 09 ATEX 0083X, II 3G Ex nA nC IIA T5 Gc, ATEX Zone 2, Groups ABCD, UL cULus E115267 Industrial Control Equipment Hazloc, Division 2, HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I | ||
Supply Voltage 230 V | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Digital output module is equipped with 4 opto-triac outputs using phase-angle control. L and N are fed to the module for zero-crossing detection. The 4 outputs are electrically isolated from one another and are used for controlling external power triacs or nonparallel thyristors.
Outputs electrically isolated from one another
Phase-angle control
Zero-crossing detection
Negative half-waves can be switched off
2-wire connections
240 V coding
