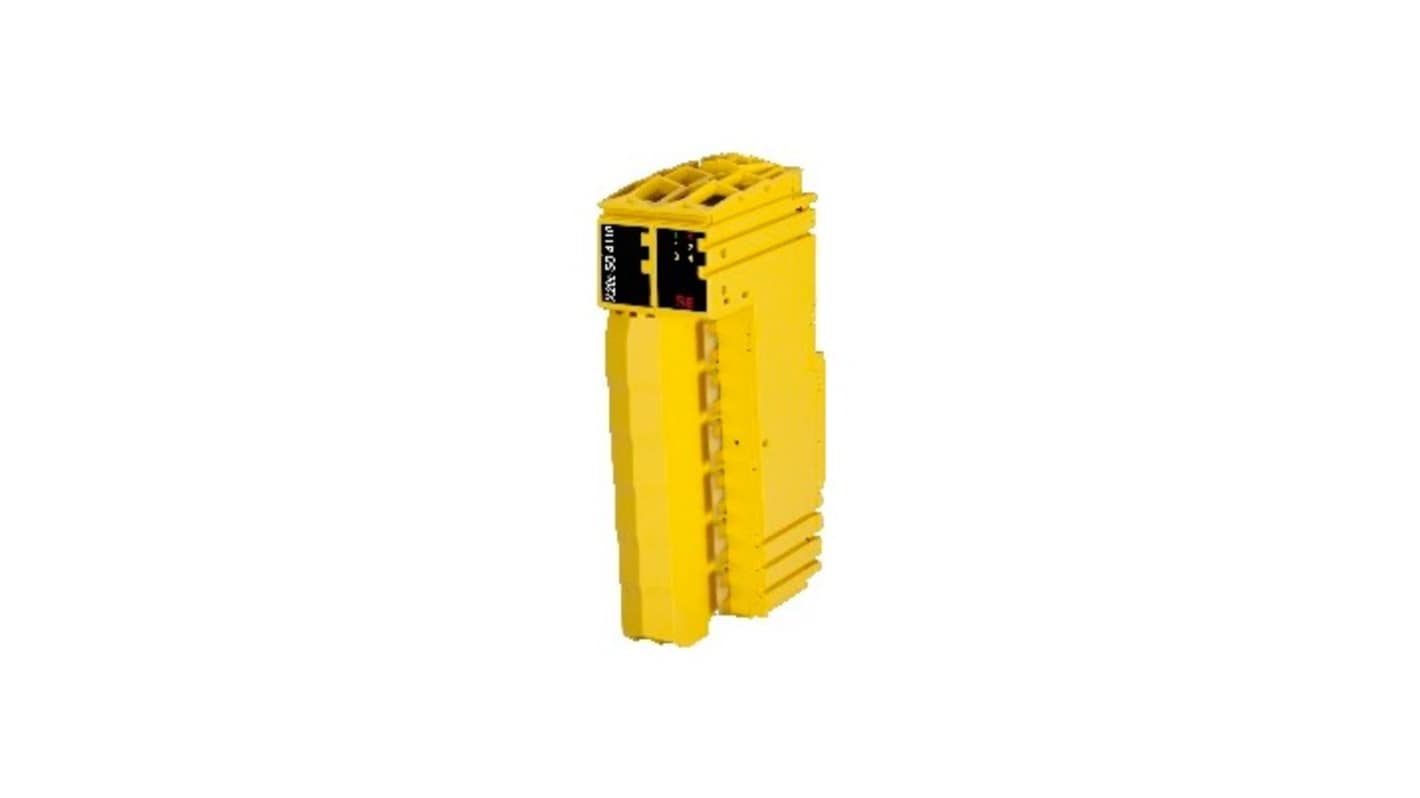

B&R X20 Series Digital Output Module for Use with X20 Series
- RS Stock No.:
- 590-713
- Mfr. Part No.:
- X20CSO4110
- Brand:
- B&R
Subtotal (1 unit)*
£387.76
(exc. VAT)
£465.31
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £387.76 |
*price indicative
- RS Stock No.:
- 590-713
- Mfr. Part No.:
- X20CSO4110
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Accessory Type | Digital Output Module | |
| Product Type | Digital Output Module | |
| Series | X20 | |
| For Use With | X20 Series | |
| IP Rating | IP20 | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN ISO 13849-1:2015, EN 62061:2013, EN 60068-2-60, EN 50156-1:2004, UL cULus E115267, DNV GL, BMW GS 95011-4, ANSI UL 1998:2013, LR ENV1, IEC 61511:2004, IEC 61508:2010 | |
| Supply Voltage | 24 V | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Accessory Type Digital Output Module | ||
Product Type Digital Output Module | ||
Series X20 | ||
For Use With X20 Series | ||
IP Rating IP20 | ||
Hazardous Area Certification No | ||
Standards/Approvals EN ISO 13849-1:2015, EN 62061:2013, EN 60068-2-60, EN 50156-1:2004, UL cULus E115267, DNV GL, BMW GS 95011-4, ANSI UL 1998:2013, LR ENV1, IEC 61511:2004, IEC 61508:2010 | ||
Supply Voltage 24 V | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Digital output module is equipped with 4 safe digital outputs. The nominal output current is 0.5 A. The module can be used for controlling actuators in safety-related applications up to PL e or SIL 3. The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles.
Source circuit
Output type A
Current monitoring
Open circuit detection
Integrated output protection
