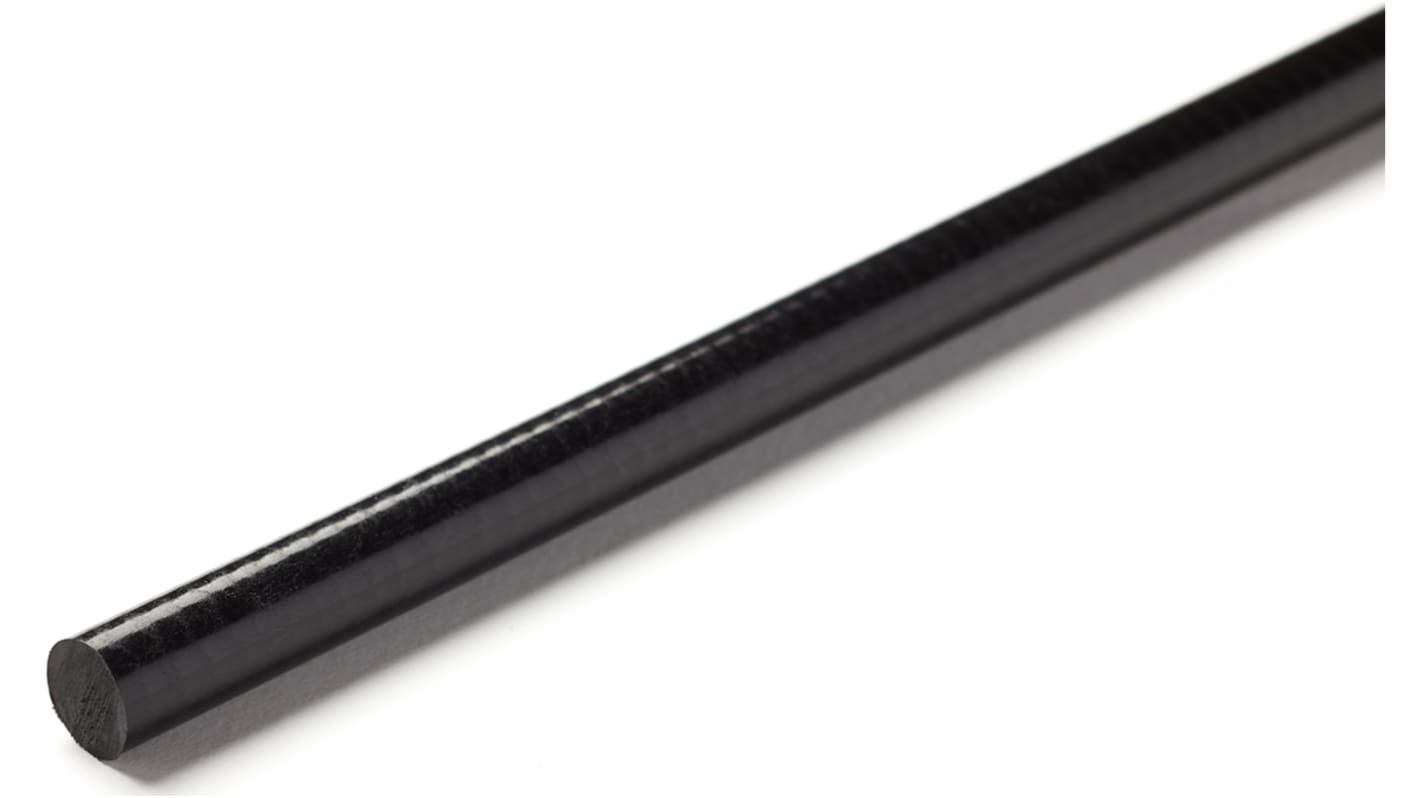

RS PRO Black Glass-Reinforced Plastic GRP Rod, 1m x 16mm Diameter
- RS Stock No.:
- 282-0569
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Lot of 2
£43.38
(exc. VAT)
£52.06
(inc. VAT)
- RS Stock No.:
- 282-0569
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Black | |
| Length | 1m | |
| Material | Glass Reinforced Plastic | |
| Form | Rod | |
| Rod Diameter | 16mm | |
| Density | 1.35g/cm³ | |
| Impact Strength | 70kJ/m² | |
| Tensile Strength | 140 (Wet) MPa, 160 (Dry) MPa | |
| Flammability Rating | UL 94 HB | |
| Maximum Operating Temperature | +110°C | |
| Water Absorption | 5.5% | |
| Elongation | 3.5 → 5% | |
| Hardness | M 90 Rockwell | |
| Melting Point | +260°C | |
| Thermal Conductivity | 0.27W/mK | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Black | ||
Length 1m | ||
Material Glass Reinforced Plastic | ||
Form Rod | ||
Rod Diameter 16mm | ||
Density 1.35g/cm³ | ||
Impact Strength 70kJ/m² | ||
Tensile Strength 140 (Wet) MPa, 160 (Dry) MPa | ||
Flammability Rating UL 94 HB | ||
Maximum Operating Temperature +110°C | ||
Water Absorption 5.5% | ||
Elongation 3.5 → 5% | ||
Hardness M 90 Rockwell | ||
Melting Point +260°C | ||
Thermal Conductivity 0.27W/mK | ||
- COO (Country of Origin):
- DE
Glass Filled Nylon 66 - GRP Sheet : Glass Renforced Plastic
Environmental: Glass filled Nylon 66 is unaffected by ultra-violet light. Strong acids (pH>3) will cause dimensional change due to absorption. Strong alkalis (pH>11) have no affect. Hot water and chlorinated hydrocarbons produce signs of mild attack by absorption.
High temperature static applications
30% glass filling reinforces stiffness
Excellent dimensional stability
Increased strength and performance in comparison to standard nylon 66
Black in colour
30% glass filling reinforces stiffness
Excellent dimensional stability
Increased strength and performance in comparison to standard nylon 66
Black in colour
Standards
30s DIN 53456
