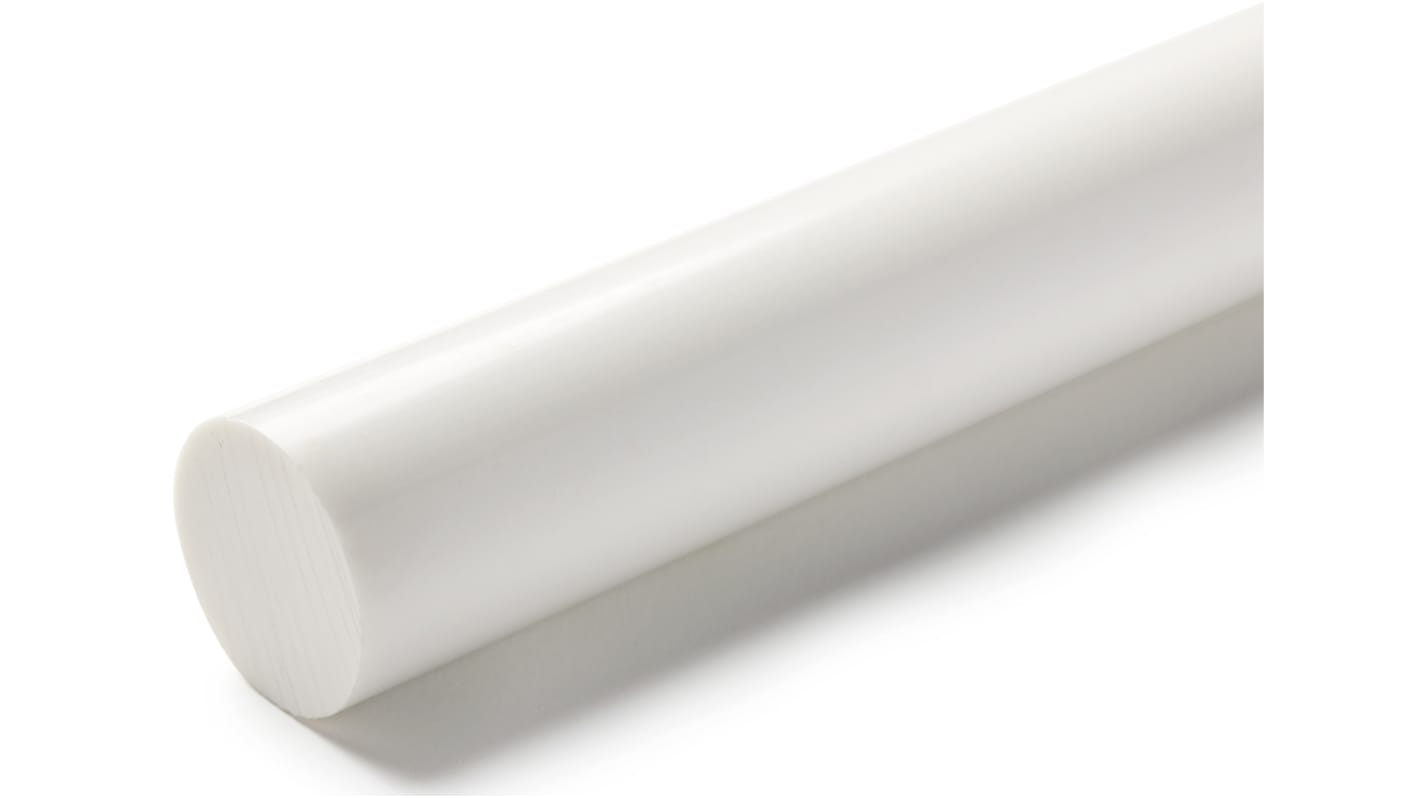

RS PRO Opaque Polyester PET Rod, 500mm x 80mm Diameter
- RS Stock No.:
- 514-568
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 514-568
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Opaque | |
| Length | 500mm | |
| Material | PET | |
| Form | Rod | |
| Rod Diameter | 80mm | |
| Density | 1.37g/cm³ | |
| Tensile Strength | 88 MPa | |
| Flammability Rating | UL 94 HB | |
| Maximum Operating Temperature | +170°C | |
| Hardness | 95 Ball Indentation | |
| Melting Point | +255°C | |
| Thermal Conductivity | 0.24W/mK | |
| Water Absorption | 0.5% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Opaque | ||
Length 500mm | ||
Material PET | ||
Form Rod | ||
Rod Diameter 80mm | ||
Density 1.37g/cm³ | ||
Tensile Strength 88 MPa | ||
Flammability Rating UL 94 HB | ||
Maximum Operating Temperature +170°C | ||
Hardness 95 Ball Indentation | ||
Melting Point +255°C | ||
Thermal Conductivity 0.24W/mK | ||
Water Absorption 0.5% | ||
- COO (Country of Origin):
- DE
Polyester (PET) - Opaque. PET Sheet : Polyethylene Terephthalate
Easily welded/bonded
Very good electrical insulation
Easily machined/polished
Not resistant long term to hot water (60°C)
High storage stiff thermoplastic
Excellent sliding properties/wear and abrasion resistant
Acid, solvent and chemical resistant
For all bearing, bush, gear, insulator applications
Opaque
Very good electrical insulation
Easily machined/polished
Not resistant long term to hot water (60°C)
High storage stiff thermoplastic
Excellent sliding properties/wear and abrasion resistant
Acid, solvent and chemical resistant
For all bearing, bush, gear, insulator applications
Opaque
