INA GE100-DO-2RS 100 mm Bore Spherical Bearing, 150 mm OD, 2900000 N
- RS Stock No.:
- 312-769
- Mfr. Part No.:
- GE100-DO-2RS
- Brand:
- INA
Subtotal (1 unit)*
£339.10
(exc. VAT)
£406.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £339.10 |
*price indicative
- RS Stock No.:
- 312-769
- Mfr. Part No.:
- GE100-DO-2RS
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Spherical Bearing | |
| Bore Size | 100mm | |
| Outside Diameter | 150mm | |
| End Type | Sealed | |
| Static Load Rating - Radial | 2900000N | |
| Material | Steel | |
| Width | 70mm | |
| Series | GE100-DO-2RS | |
| Standards/Approvals | DIN ISO 12240-1 | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Spherical Bearing | ||
Bore Size 100mm | ||
Outside Diameter 150mm | ||
End Type Sealed | ||
Static Load Rating - Radial 2900000N | ||
Material Steel | ||
Width 70mm | ||
Series GE100-DO-2RS | ||
Standards/Approvals DIN ISO 12240-1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

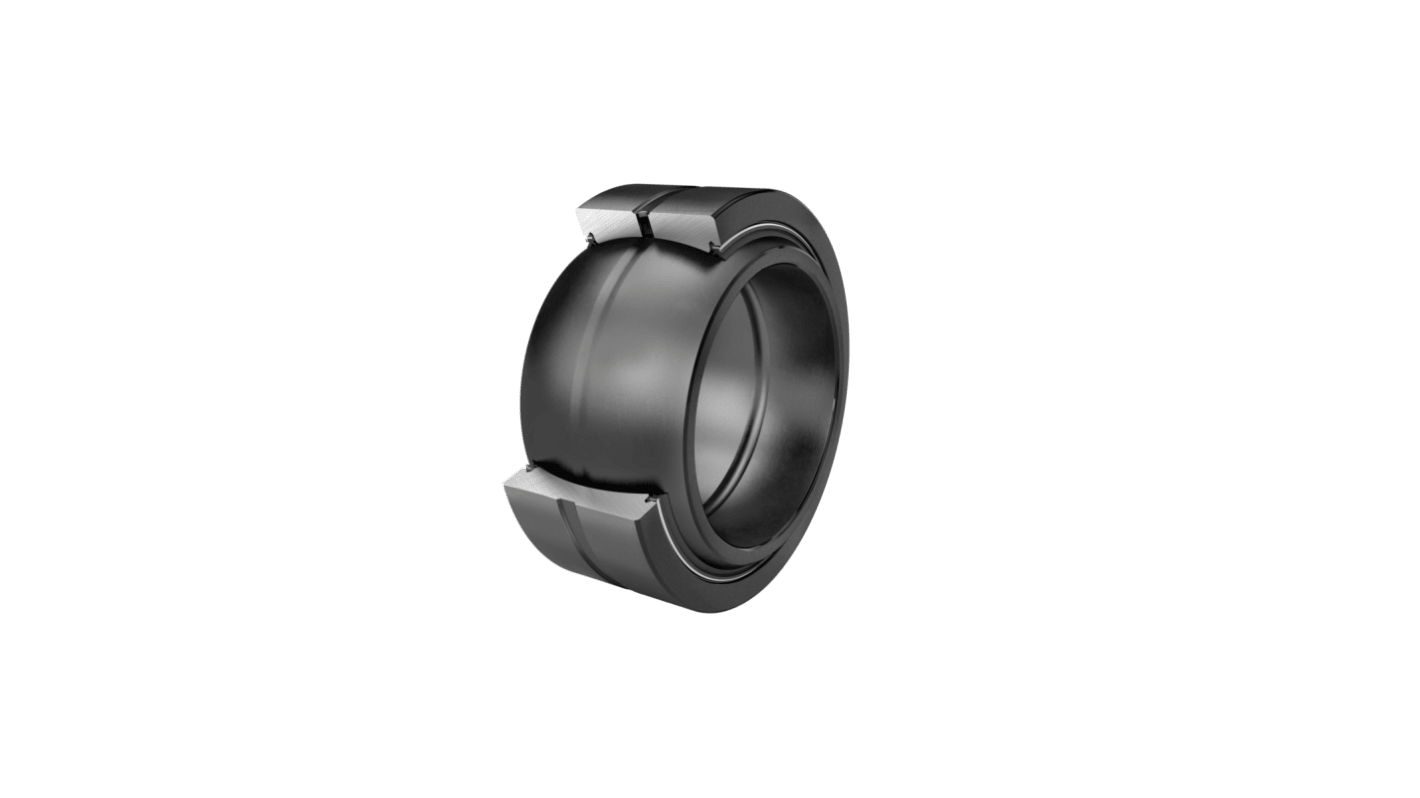

The INA Spherical Plain Bearing features a steel-on-steel sliding contact surface and conforms to DIN ISO 12240-1, dimension series E. Sealed for protection, it is designed for high-performance applications, offering maximum load capacity and extended service life. It operates between the temperature range from -30 °C to 130 °C.
Lip seals on both sides
Normal internal clearance
Can be grease lubricated
