INA GE60-HO-2RS 60 mm Bore Spherical Bearing, 90 mm OD, 1140000 N
- RS Stock No.:
- 312-938
- Mfr. Part No.:
- GE60-HO-2RS
- Brand:
- INA
Subtotal (1 unit)*
£127.86
(exc. VAT)
£153.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £127.86 |
*price indicative
- RS Stock No.:
- 312-938
- Mfr. Part No.:
- GE60-HO-2RS
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Spherical Bearing | |
| Bore Size | 60mm | |
| Outside Diameter | 90mm | |
| End Type | Sealed | |
| Static Load Rating - Radial | 1140000N | |
| Material | Steel | |
| Width | 54mm | |
| Series | GE60-HO-2RS | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Spherical Bearing | ||
Bore Size 60mm | ||
Outside Diameter 90mm | ||
End Type Sealed | ||
Static Load Rating - Radial 1140000N | ||
Material Steel | ||
Width 54mm | ||
Series GE60-HO-2RS | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

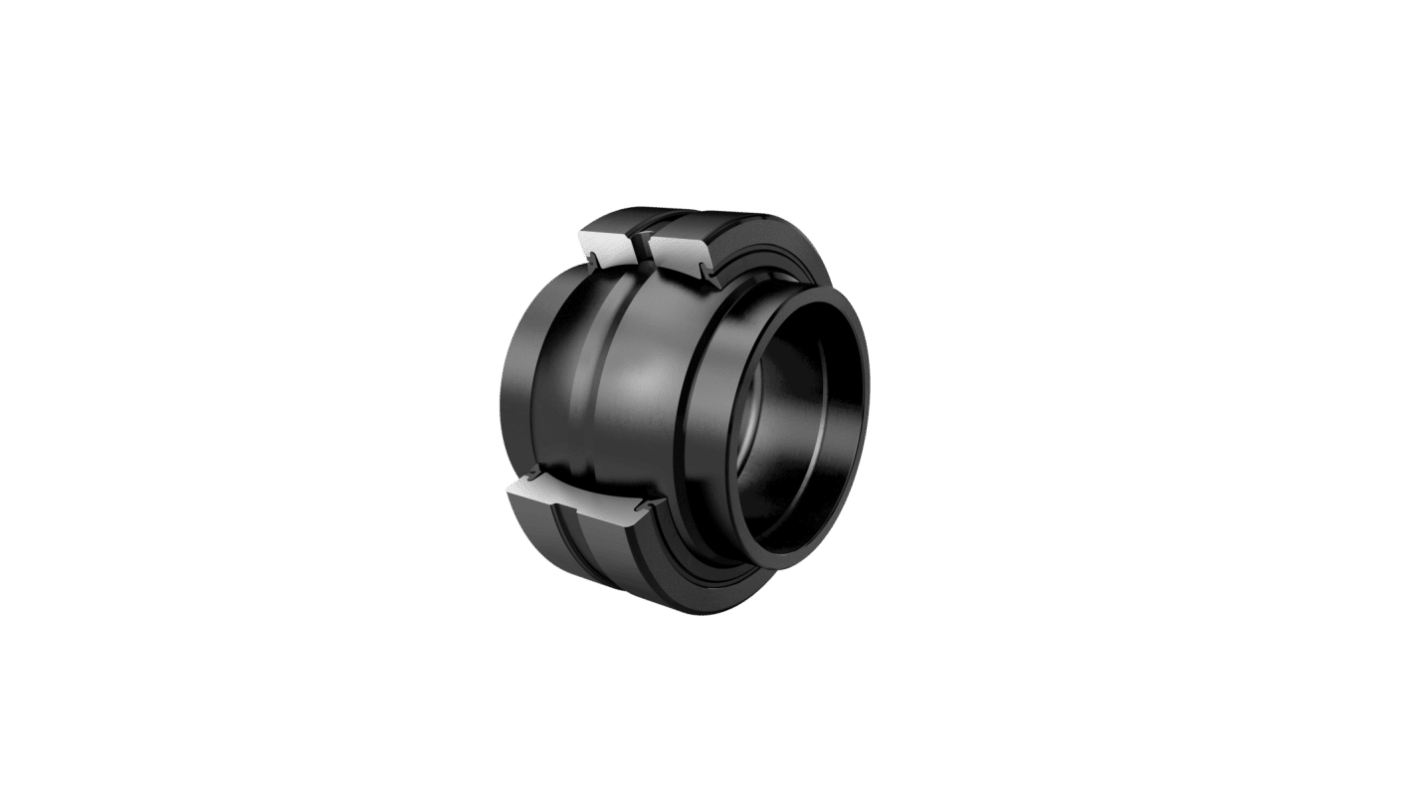

The INA Spherical Plain Bearing features a steel-on-steel sliding contact surface. Sealed for protection, it is designed for high-performance applications, offering maximum load capacity and extended service life. It operates between the temperature range from -30 °C to 130 °C.
Lip seals on both sides
Normal internal clearance
Can be grease lubricated
