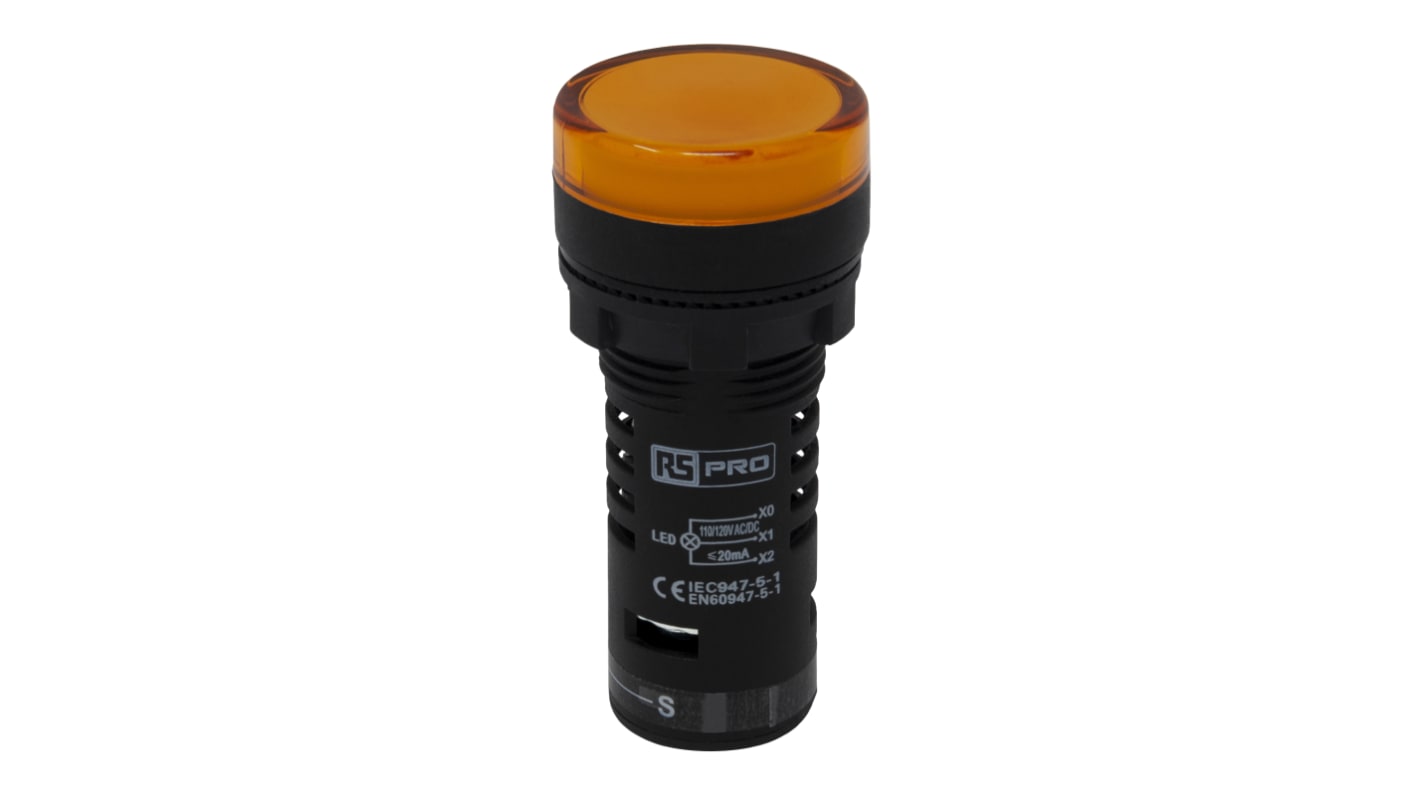

RS PRO, Panel Mount Yellow LED Pilot Light, 22mm Cutout, IP65, Round, 120V ac/dc
- RS Stock No.:
- 909-2540
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.00
(exc. VAT)
£8.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 57 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7.00 |
*price indicative
- RS Stock No.:
- 909-2540
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pilot Light Type | Pilot Light Complete Unit | |
Voltage Rating | 120V ac/dc | |
Pilot Light Colour | Yellow | |
Cutout Diameter | 22mm | |
Series | LEDtec | |
Lamp Type | LED | |
Mounting Type | Panel Mount | |
IP Rating | IP65 | |
Terminal Type | Screw | |
Current Rating | 20mA | |
Pilot Light Shape | Round | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pilot Light Type Pilot Light Complete Unit | ||
Voltage Rating 120V ac/dc | ||
Pilot Light Colour Yellow | ||
Cutout Diameter 22mm | ||
Series LEDtec | ||
Lamp Type LED | ||
Mounting Type Panel Mount | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Current Rating 20mA | ||
Pilot Light Shape Round | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
LED Indicator Control Station Complete Units & Test Circuit
The RS range of LED Indicators using multi-chip technology provide you bright and even colour at lower power consumption. This range of indicators provide you with the same illumination as the standard LED indicators but have an additional terminal to allow you to connect to lamp test circuits. Even better is the quick and easy installation with a back of panel lock nut and captive screw terminals. You are offered a voltage range of 12V to 230V and a choice of colours, red, green, yellow, blue and white. This range of LED indicators are rated IP65 and have an operational life of 30,000 hours
Test Circuit
Operational Life up to 30,000 hours
Choice of colours
Multi chip technology
Voltage range 12 to 230V
Brighter colour
Quick and easy installation
IP65
Operational Life up to 30,000 hours
Choice of colours
Multi chip technology
Voltage range 12 to 230V
Brighter colour
Quick and easy installation
IP65
22mm Indicator Control Stations with Test Circuit
