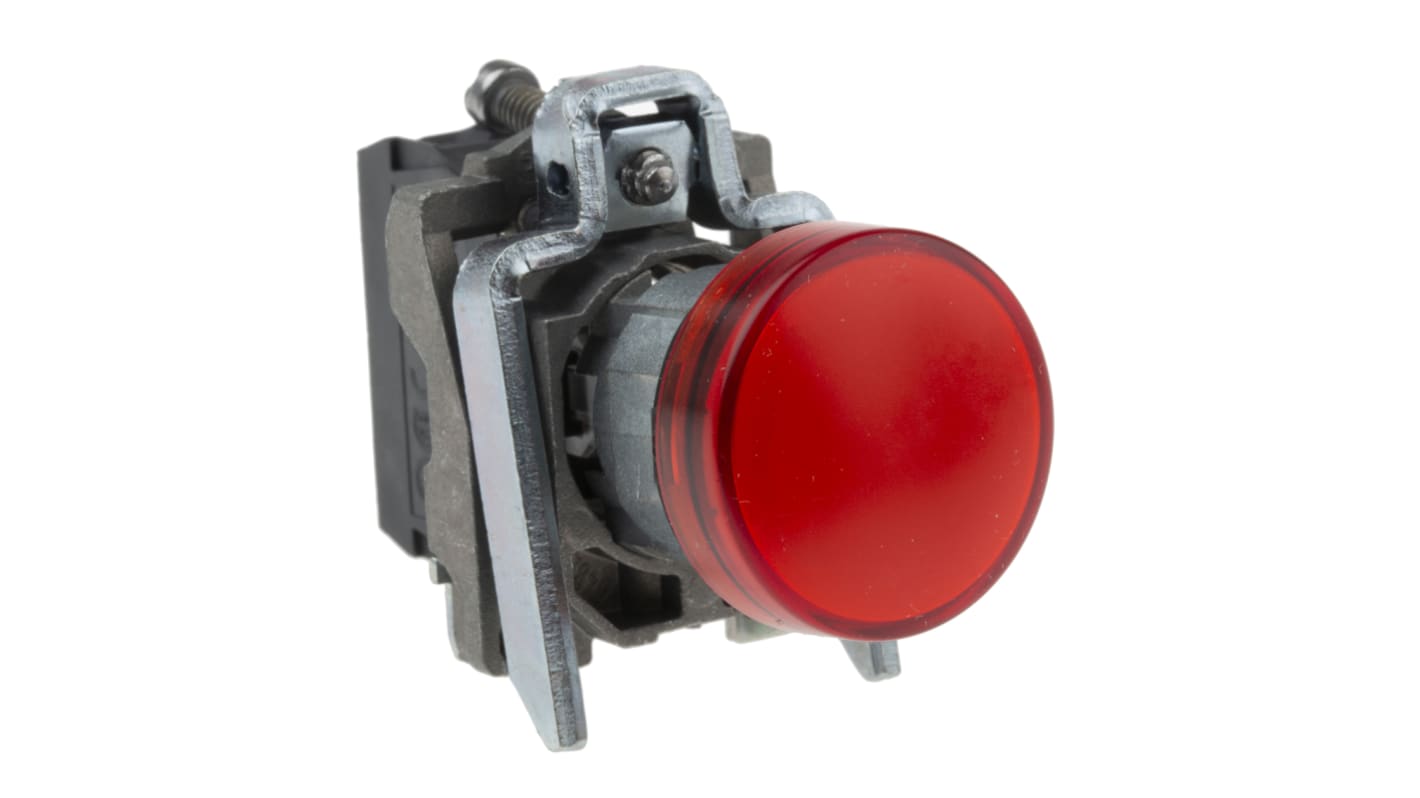

Schneider Electric, Harmony XB4, Panel Mount Red LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K), Round, 24V ac/dc

RS Stock No.:: 330-8925
Distrelec Article No.:: 135-12-346
Mfr. Part No.:: XB4BVB4
Brand:: Schneider Electric

Schneider Electric, Harmony XB4, Panel Mount Red LED Pilot Light, 22mm Cutout, IP66, IP67, IP69(IP69K), Round, 24V ac/dc

Subtotal (1 unit)*

£16.77

(exc. VAT)

£20.12

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

466 unit(s) ready to ship
Plus 488 unit(s) ready to ship from another location
Plus 227 unit(s) shipping from 13 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£16.77

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 330-8925
Distrelec Article No.:: 135-12-346
Mfr. Part No.:: XB4BVB4
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Voltage Rating	24V ac/dc
	Pilot Light Type	Pilot Light Complete Unit
	Pilot Light Colour	Red
	Range	Harmony
	Cutout Diameter	22mm
	Lamp Type	LED
	Series	Harmony XB4
	Mounting Type	Panel Mount
	IP Rating	IP66, IP67, IP69(IP69K)
	Terminal Type	Screw
	Current Rating	18mA
	Pilot Light Shape	Round
	Pilot Light Material	Chromium Plated Metal (Bezel)
	Body Material	Metal
	Better World Product	Yes
	Better World Verification	Green Premium

	Select all
	Brand Schneider Electric
	Voltage Rating 24V ac/dc
	Pilot Light Type Pilot Light Complete Unit
	Pilot Light Colour Red
	Range Harmony
	Cutout Diameter 22mm
	Lamp Type LED
	Series Harmony XB4
	Mounting Type Panel Mount
	IP Rating IP66, IP67, IP69(IP69K)
	Terminal Type Screw
	Current Rating 18mA
	Pilot Light Shape Round
	Pilot Light Material Chromium Plated Metal (Bezel)
	Body Material Metal
	Better World Product Yes
	Better World Verification Green Premium

RoHS Status: Exempt

COO (Country of Origin):: FR

Schneider Electric Harmony XB4 Series Pilot Light, 24V AC/DC Voltage Rating, Red - XB4BVB4

This pilot light is a complete unit designed for reliable operation in various environments. The round, red pilot light features a 22mm cutout diameter, accommodating a panel mount configuration for straightforward installation. Operating at a voltage rating of 24V AC/DC, this durable component is suitable for use in automation and electrical applications where visibility and performance are essential.

Features & Benefits

• IP66, IP67, IP69 (IP69K) rated for protection against dust and water
• Screw terminal connections allow easy and secure wiring
• LED light source ensures energy efficiency and long service life
• Constructed from chromium-plated metal for enhanced durability
• Universal LED compatibility makes integration straightforward
• Consumes only 18 mA for low energy usage

Applications

• Used for visual indications in control panels
• Ideal for automation systems requiring clear signalling
• Employed in electrical installations needing durable components
• Suitable for environments with exposure to dust and moisture
• Designed for quick installation within standard panel cutouts

How does the environmental rating enhance its usability in challenging conditions?

The IP66, IP67, and IP69 ratings provide excellent protection against dust ingress and high-pressure water jets, making it suitable for harsh environmental conditions, ensuring reliability in outdoor applications or areas prone to spills.

What connection types are compatible with this unit?

It features screw clamp terminals designed to accommodate cable sizes up to 2.5mm², allowing for flexible installation options while ensuring a secure connection to the power source.

What is the expected lifespan of this pilot light?

The pilot light is rated for up to 100,000 hours of service life, making it a maintenance-free option for extended periods, ideal for applications where downtime must be minimised.
