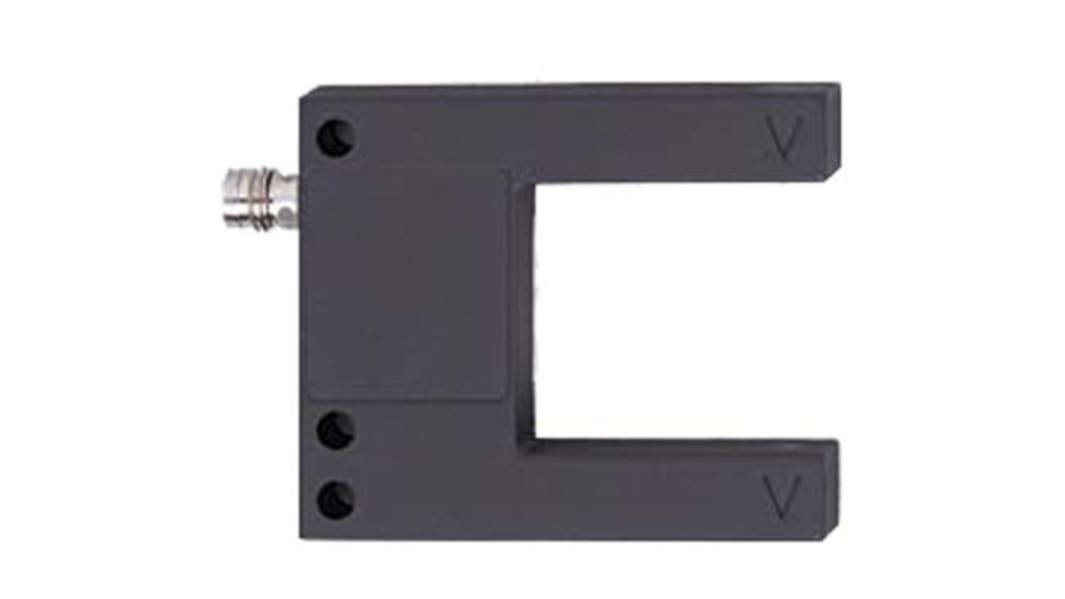

ifm electronic Through Beam Photoelectric Sensor, Fork Sensor
- RS Stock No.:
- 136-5399
- Mfr. Part No.:
- OPU202
- Brand:
- ifm electronic
Subtotal (1 unit)*
£231.08
(exc. VAT)
£277.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £231.08 |
*price indicative
- RS Stock No.:
- 136-5399
- Mfr. Part No.:
- OPU202
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Sensor Style | Fork | |
| Product Type | Photoelectric Sensor | |
| Detection Type | Through Beam | |
| Output Type | PNP | |
| Terminal Type | Quick Disconnect | |
| Interface Type | IO-Link | |
| Maximum DC Voltage | 35V dc | |
| Light Source | LED | |
| Minimum Operating Temperature | -25°C | |
| Materials Detected | Glass | |
| IP Rating | IP67 | |
| Maximum Current | 30mA | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, cULus | |
| Housing Material | Die Cast Zinc | |
| Series | OPU | |
| Mount Type | Cable | |
| Hazardous Area Certification | No | |
| Detection Range | >0.5 mm | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Sensor Style Fork | ||
Product Type Photoelectric Sensor | ||
Detection Type Through Beam | ||
Output Type PNP | ||
Terminal Type Quick Disconnect | ||
Interface Type IO-Link | ||
Maximum DC Voltage 35V dc | ||
Light Source LED | ||
Minimum Operating Temperature -25°C | ||
Materials Detected Glass | ||
IP Rating IP67 | ||
Maximum Current 30mA | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, cULus | ||
Housing Material Die Cast Zinc | ||
Series OPU | ||
Mount Type Cable | ||
Hazardous Area Certification No | ||
Detection Range >0.5 mm | ||
- COO (Country of Origin):
- DE
ifm OPU Optical Fork Sensors
ifm OPU series optical fork sensors with a robust metal housing offer quick setup with no need to align a transmitter and receiver. These optical sensors are used in particular for part monitoring in feeder and handling systems. Further application examples are belt edge or double feed monitoring with the exact sensitivity setting via potentiometer being helpful. The fine light beam with its constant small diameter is also ideal for monitoring shaft imbalance.
Features and Benefits
Metal housing reduces distortion;Quick setup: no need to align transmitter and receiver;Easy sensitivity setting via potentiometer;Light-on/dark-on mode via rotary switch;Across the whole fork width: fine and precise light beam
