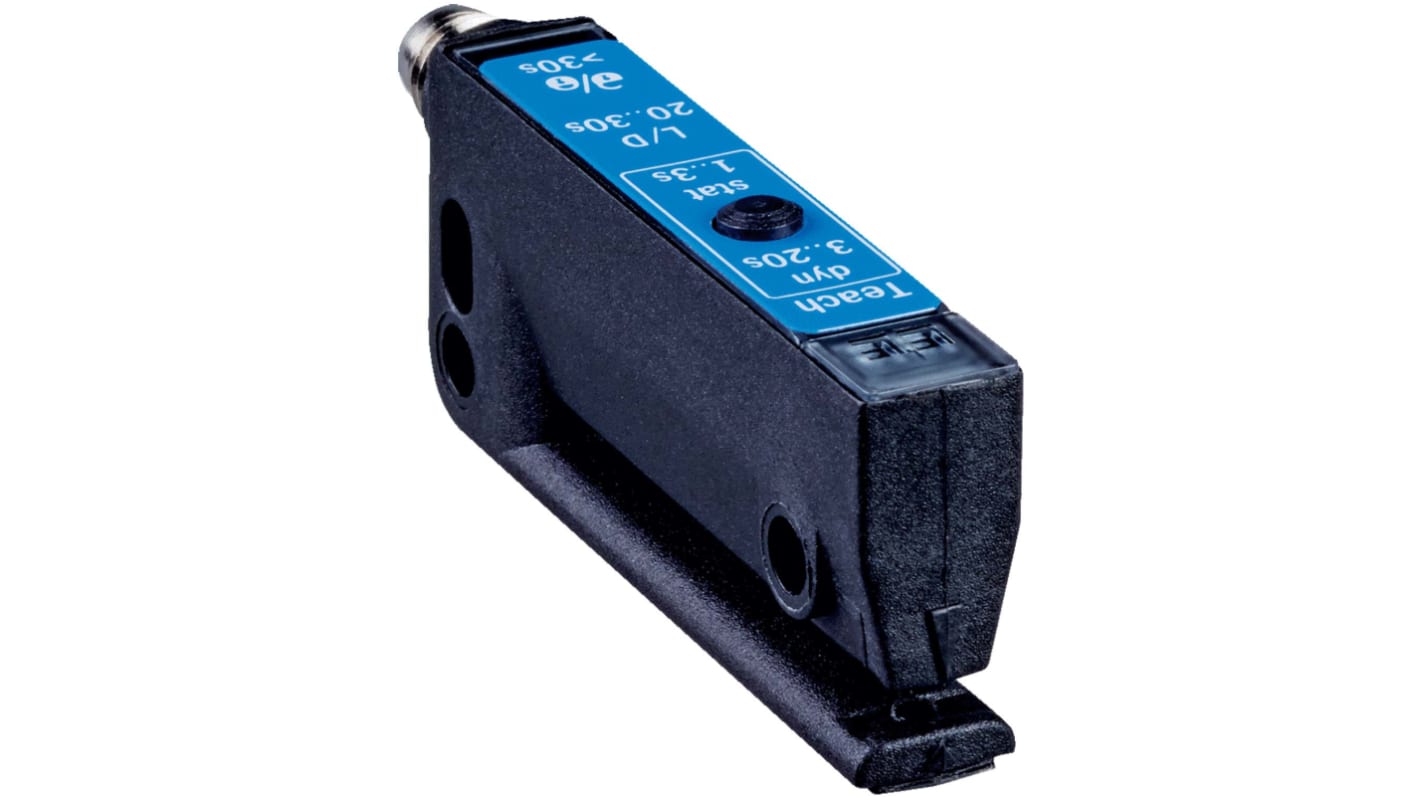

SICK Through Beam Photoelectric Sensor, Fork Sensor, >2 mm Detection Range IO-LINK

View all Photoelectric Sensors

Subtotal (1 unit)*

£139.50

(exc. VAT)

£167.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£139.50

*price indicative

Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
134-7838
Mfr. Part No.:
WFS3-40B41CA71
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Sensor Style

Fork

Detection Type

Through Beam

Detection Range

>2 mm

Output Type

PUSH/PULL

Electrical Connection

M8 4 Pin Connector

Communication Protocol

IO-LINK

Maximum DC Voltage

30V

Terminal Type

4 Pin Connector

Light Source

Infrared

IP Rating

IP65

Maximum Current

20 mA

Interface

IO-Link

Response Time

46 μs

Maximum Operating Temperature

+60°C

Series

WFS

Mounting Type

Panel Mount

Minimum Operating Temperature

-20°C

Housing Material

Polyamide

Standards Met

CE, EN 60068-2-27

COO (Country of Origin):
DE

Sick WF I/O-Link Photoelectric Fork Sensors


SICK WF I/O-Link fork sensors offers simplicity, flexibility and precision for object detection. Fork sensors are available in a range of sizes to suit various requirements.

Setting the sensor requires a single press of the teach-in pushbutton. The sensor reliably adjusts for any changes to environmental conditions such as temperature, dust or dirt. The single-lens system “sees” through even the smallest of openings.

I/O-Link is the new communication standard for the integration of the sensors and actuators into automation systems. I/O-Link can be parametrised and monitored via field bus. Preventative maintenance and service measures can be implemented, and changeover times for product or format changes can be significantly reduced.

Features and Benefits


Quick and easy mounting as the sender and receiver are integrated into one housing
Reliable performance at high speeds
High ambient light immunity
Rugged aluminum housing
Simple setting either via teach-in pushbutton, cable or IO-Link
Flexible sensor settings, monitoring, advanced diagnostics, and visualization thanks to IO-Link


Sick I/O-Link Photoelectric Sensors


With its line of Smart Sensor Solutions powered by I/O-Link, SICK offers a range of products providing solutions that optimize the automation technology used in machines and systems.

I/O-Link is the first standardised I/O technology worldwide (IEC 61131-9) for the communication with sensors and actuators. I/O-Link provides a point-to-point connection located in any given network.
