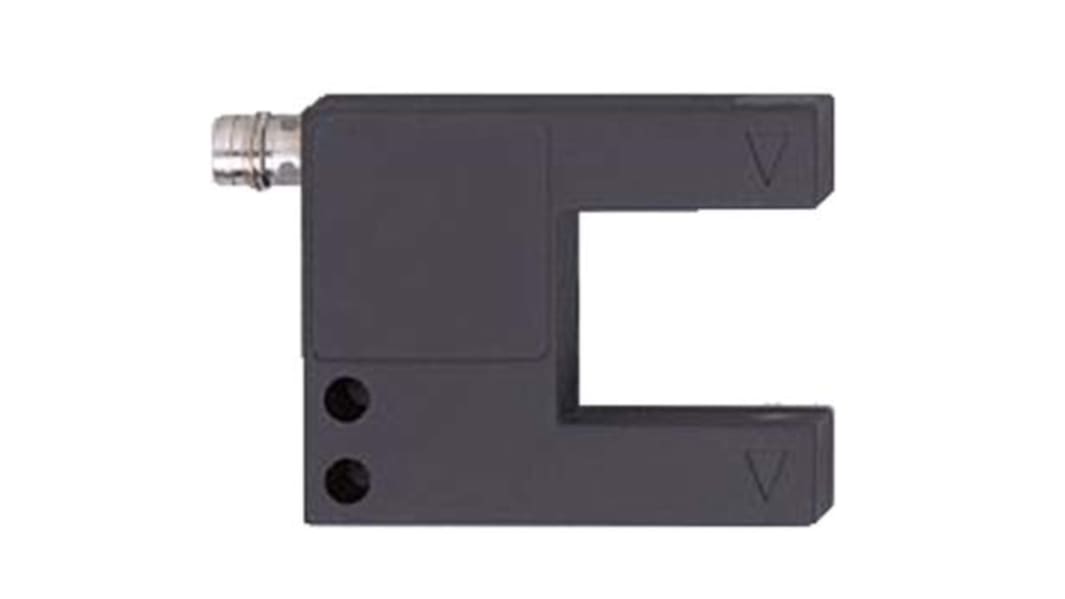

ifm electronic Through Beam Photoelectric Sensor, Fork Sensor, >0.4 mm Detection Range IO-LINK
- RS Stock No.:
- 136-5398
- Mfr. Part No.:
- OPU201
- Brand:
- ifm electronic
Subtotal (1 unit)*
£181.24
(exc. VAT)
£217.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 5 unit(s) shipping from 10 November 2025
- Plus 4 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £181.24 |
*price indicative
- RS Stock No.:
- 136-5398
- Mfr. Part No.:
- OPU201
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Sensor Style | Fork | |
| Detection Type | Through Beam | |
| Detection Range | >0.4 mm | |
| Output Type | PNP | |
| Electrical Connection | M8 3 Pin Connector | |
| Communication Protocol | IO-LINK | |
| Maximum DC Voltage | 35V | |
| Terminal Type | Quick Disconnect | |
| Light Source | Infrared | |
| IP Rating | IP67 | |
| Maximum Current | 30 mA | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Die Cast Zinc | |
| Maximum Operating Temperature | +60°C | |
| Standards Met | CE, cULus | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Sensor Style Fork | ||
Detection Type Through Beam | ||
Detection Range >0.4 mm | ||
Output Type PNP | ||
Electrical Connection M8 3 Pin Connector | ||
Communication Protocol IO-LINK | ||
Maximum DC Voltage 35V | ||
Terminal Type Quick Disconnect | ||
Light Source Infrared | ||
IP Rating IP67 | ||
Maximum Current 30 mA | ||
Minimum Operating Temperature -25°C | ||
Housing Material Die Cast Zinc | ||
Maximum Operating Temperature +60°C | ||
Standards Met CE, cULus | ||
- COO (Country of Origin):
- DE
ifm OPU Optical Fork Sensors
ifm OPU series optical fork sensors with a robust metal housing offer quick setup with no need to align a transmitter and receiver. These optical sensors are used in particular for part monitoring in feeder and handling systems. Further application examples are belt edge or double feed monitoring with the exact sensitivity setting via potentiometer being helpful. The fine light beam with its constant small diameter is also ideal for monitoring shaft imbalance.
Features and Benefits
Metal housing reduces distortion
Quick setup: no need to align transmitter and receiver
Easy sensitivity setting via potentiometer
Light-on/dark-on mode via rotary switch
Across the whole fork width: fine and precise light beam
