Vishay, BPV22NF IR Si Photodiode, Through Hole Side-looker Package
- RS Stock No.:
- 699-7604
- Mfr. Part No.:
- BPV22NF
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.66
(exc. VAT)
£5.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 105 unit(s) shipping from 27 October 2025
- Plus 1,075 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.932 | £4.66 |
| 50 - 120 | £0.604 | £3.02 |
| 125 - 245 | £0.514 | £2.57 |
| 250 - 495 | £0.418 | £2.09 |
| 500 + | £0.372 | £1.86 |
*price indicative
- RS Stock No.:
- 699-7604
- Mfr. Part No.:
- BPV22NF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 940nm | |
| Package Type | Side Looker | |
| Mounting Type | Through Hole | |
| Amplifier Function | No | |
| Number of Pins | 2 | |
| Diode Material | Si | |
| Minimum Wavelength Detected | 790nm | |
| Maximum Wavelength Detected | 1050nm | |
| Length | 4.5mm | |
| Width | 5mm | |
| Height | 6mm | |
| Peak Photo Sensitivity | 0.6A/W | |
| Polarity | Forward | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 940nm | ||
Package Type Side Looker | ||
Mounting Type Through Hole | ||
Amplifier Function No | ||
Number of Pins 2 | ||
Diode Material Si | ||
Minimum Wavelength Detected 790nm | ||
Maximum Wavelength Detected 1050nm | ||
Length 4.5mm | ||
Width 5mm | ||
Height 6mm | ||
Peak Photo Sensitivity 0.6A/W | ||
Polarity Forward | ||
BPV22 and BPV23 Series PIN Photodiodes

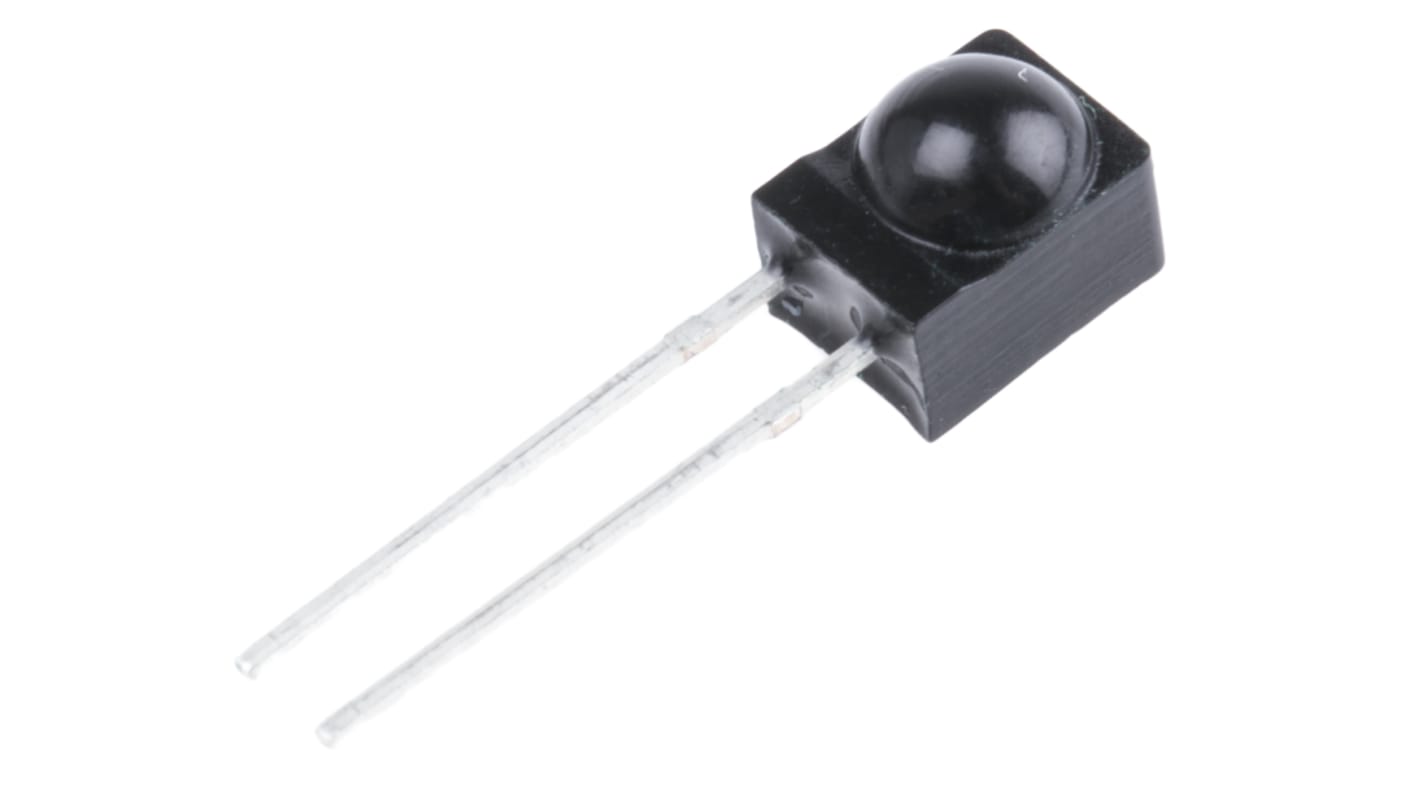

The BPV22 and BPV23 series, from Vishay Semiconductor, are a range on PIN photodiodes within a side looking package. They are in a through-hole package with a black plastic lens and daylight filter. Its dome lens offers an 80% improvement in sensitivity in comparison to a flat lens type.
Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF (BPV22) or TSAL (BPV23) series IR emitters.
Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF (BPV22) or TSAL (BPV23) series IR emitters.
Features of the BPV22 and BPV23 PIN photodiodes:
Through-hole mounting
Side looking (SL) package
High radiant sensitivity
Black plastic package with daylight filter
Dimensions: 4.5 x 5 x 6 mm
Fast response times
Angle of half intensity: 60°
Through-hole mounting
Side looking (SL) package
High radiant sensitivity
Black plastic package with daylight filter
Dimensions: 4.5 x 5 x 6 mm
Fast response times
Angle of half intensity: 60°
IR Photodiodes, Vishay Semiconductor
