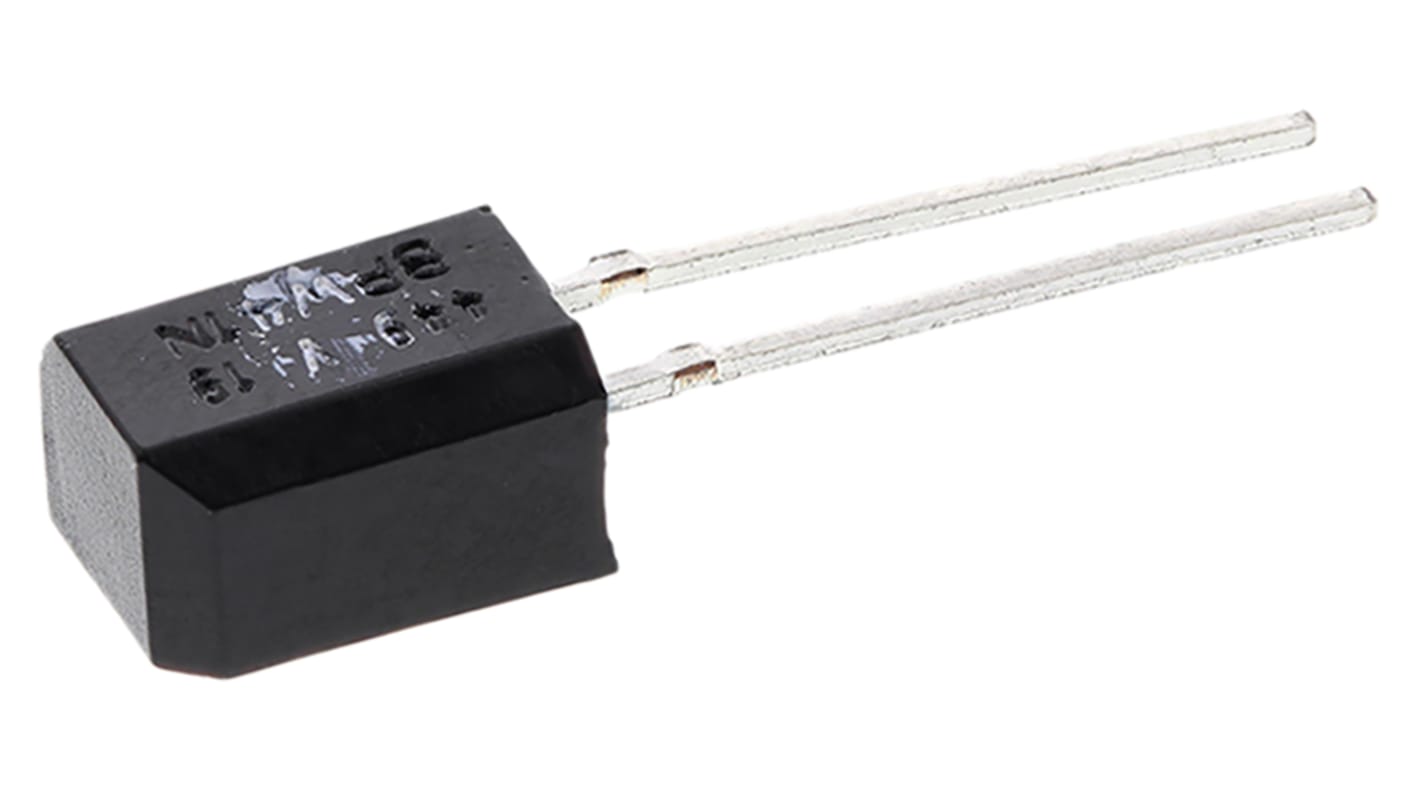

Vishay BPW41N Infrared Photodiode, 65 °, Through Hole Side Looker
- RS Stock No.:
- 699-7610
- Mfr. Part No.:
- BPW41N
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.98
(exc. VAT)
£4.775
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,970 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.796 | £3.98 |
| 50 - 120 | £0.558 | £2.79 |
| 125 - 245 | £0.542 | £2.71 |
| 250 - 495 | £0.438 | £2.19 |
| 500 + | £0.40 | £2.00 |
*price indicative
- RS Stock No.:
- 699-7610
- Mfr. Part No.:
- BPW41N
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | Side Looker | |
| Mount Type | Through Hole | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 870nm | |
| Maximum Wavelength Detected | 1050nm | |
| Typical Fall Time | 80ns | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Width | 3mm | |
| Height | 6.4mm | |
| Length | 5mm | |
| Diameter | 5mm | |
| Angle of Half Sensitivity | 65 ° | |
| Dark Current | 2nA | |
| Short Circuit Current | 50μA | |
| Automotive Standard | No | |
| Breakdown Voltage | 60V | |
| Open Circuit Voltage | 350mV | |
| Typical Rise Time | 80ns | |
| Polarity | Forward | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type Side Looker | ||
Mount Type Through Hole | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 870nm | ||
Maximum Wavelength Detected 1050nm | ||
Typical Fall Time 80ns | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Width 3mm | ||
Height 6.4mm | ||
Length 5mm | ||
Diameter 5mm | ||
Angle of Half Sensitivity 65 ° | ||
Dark Current 2nA | ||
Short Circuit Current 50μA | ||
Automotive Standard No | ||
Breakdown Voltage 60V | ||
Open Circuit Voltage 350mV | ||
Typical Rise Time 80ns | ||
Polarity Forward | ||
BPW41N Series PIN Photodiodes
The BPW41N series, from Vishay Semiconductor, are a family of silicon PIN photodiodes. They are in a side looking (SL) package with a black plastic lens and daylight filter. Suitable applications for the BPW41N include; IR radiation detectors, IR remote control and Air data transmission systems. The BPW41N can be used in combination with the TSAL series IR emitters.
Features of the BPW41N PIN photodiode:
Side-looking black plastic package
Through-hole mouting
Dimensions: 5 x 4 x 6.8 mm
Radiant sensitive area: 7.5 mm²
High radiant sensitivity
Fast response times
Angle of half intensity: 65°
Operating temperature: -40 to +100°C
IR Photodiodes, Vishay Semiconductor
