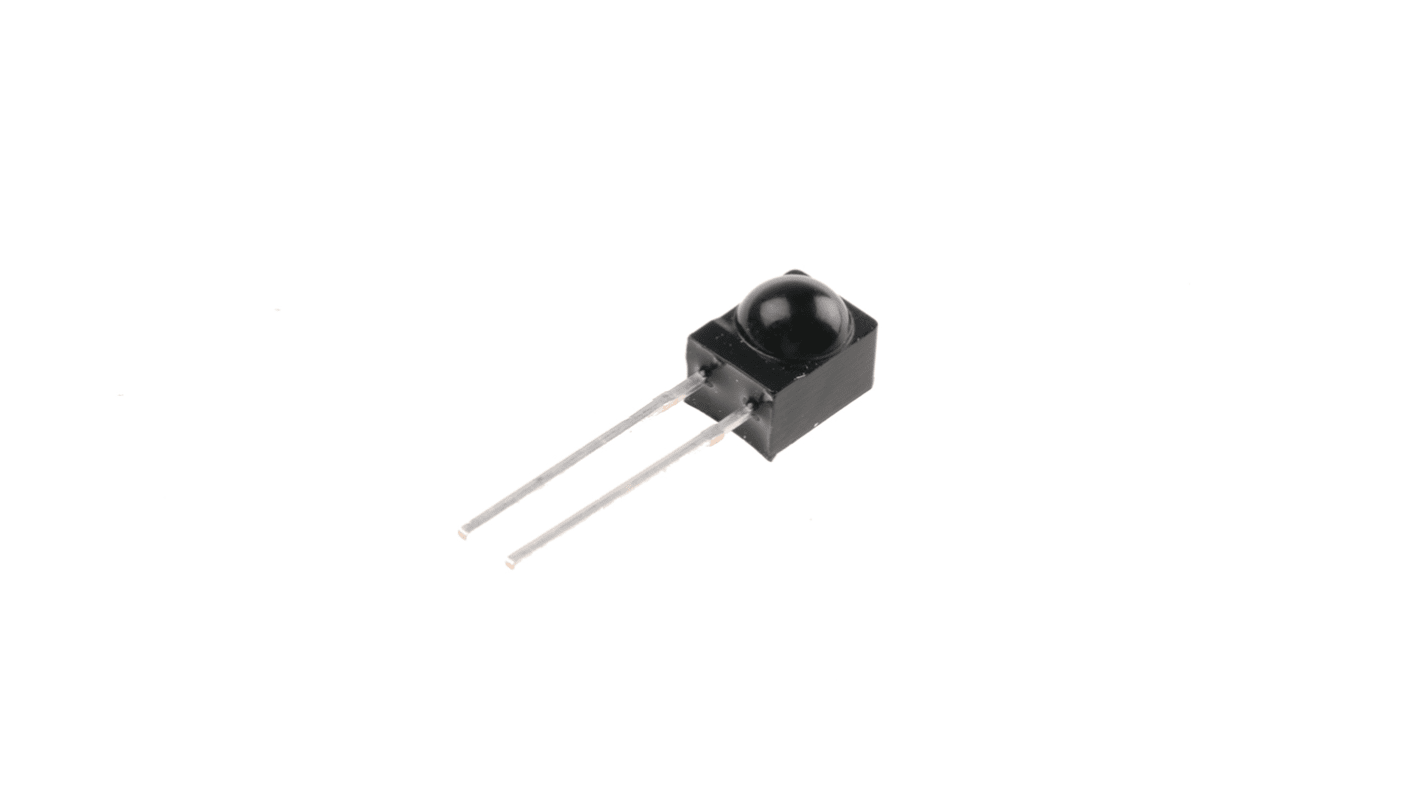

Vishay BPV23F Infrared Photodiode, 60 °, Through Hole Side Looker
- RS Stock No.:
- 699-7613
- Mfr. Part No.:
- BPV23F
- Brand:
- Vishay
Subtotal (1 pack of 5 units)*
£4.06
(exc. VAT)
£4.87
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 145 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.812 | £4.06 |
*price indicative
- RS Stock No.:
- 699-7613
- Mfr. Part No.:
- BPV23F
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | Side Looker | |
| Packaging | Bulk | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 870nm | |
| Maximum Wavelength Detected | 1050nm | |
| Typical Fall Time | 70ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Width | 5mm | |
| Length | 4.5mm | |
| Height | 6mm | |
| Angle of Half Sensitivity | 60 ° | |
| Automotive Standard | No | |
| Series | BPV23 | |
| Polarity | Forward | |
| Breakdown Voltage | 60V | |
| Dark Current | 30nA | |
| Short Circuit Current | 60μA | |
| Open Circuit Voltage | 390mV | |
| Typical Rise Time | 70ns | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type Side Looker | ||
Packaging Bulk | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 870nm | ||
Maximum Wavelength Detected 1050nm | ||
Typical Fall Time 70ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Width 5mm | ||
Length 4.5mm | ||
Height 6mm | ||
Angle of Half Sensitivity 60 ° | ||
Automotive Standard No | ||
Series BPV23 | ||
Polarity Forward | ||
Breakdown Voltage 60V | ||
Dark Current 30nA | ||
Short Circuit Current 60μA | ||
Open Circuit Voltage 390mV | ||
Typical Rise Time 70ns | ||
BPV22 and BPV23 Series PIN Photodiodes
The BPV22 and BPV23 series, from Vishay Semiconductor, are a range on PIN photodiodes within a side looking package. They are in a through-hole package with a black plastic lens and daylight filter. Its dome lens offers an 80% improvement in sensitivity in comparison to a flat lens type.
Suitable applications for the BPV22 and BPV23 PIN photodiodes include; IR radiation detectors, IR remote control and air data transmission systems. The BPV22 and BPV23 can be used in combination with the TSFF (BPV22) or TSAL (BPV23) series IR emitters.
Features of the BPV22 and BPV23 PIN photodiodes:
Through-hole mounting
Side looking (SL) package
High radiant sensitivity
Black plastic package with daylight filter
Dimensions: 4.5 x 5 x 6 mm
Fast response times
Angle of half intensity: 60°
IR Photodiodes, Vishay Semiconductor
