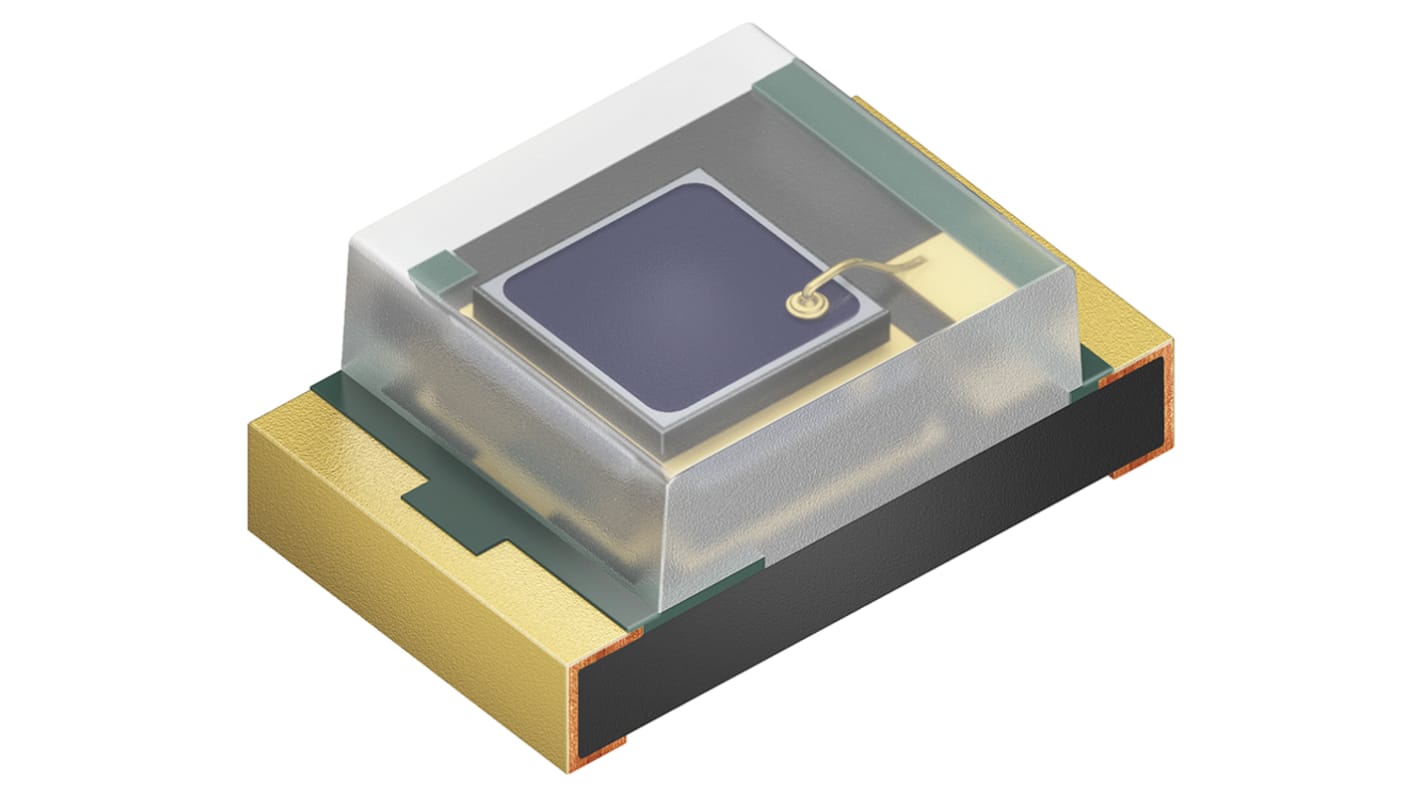

ams OSRAM, SFH 2700 IR Si Photodiode, Surface Mount Chip LED
- RS Stock No.:
- 176-4202
- Mfr. Part No.:
- SFH 2700
- Brand:
- ams OSRAM
Subtotal (1 pack of 20 units)*
£7.66
(exc. VAT)
£9.20
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 180 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.383 | £7.66 |
*price indicative
- RS Stock No.:
- 176-4202
- Mfr. Part No.:
- SFH 2700
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 1100nm | |
| Package Type | Chip LED | |
| Amplifier Function | No | |
| Mounting Type | Surface Mount | |
| Number of Pins | 2 | |
| Diode Material | Si | |
| Minimum Wavelength Detected | 300nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.12µs | |
| Length | 2mm | |
| Width | 1.25mm | |
| Height | 0.8mm | |
| Diameter | 2 x 1.25 x 0.8mm | |
| Polarity | Reverse | |
| Typical Rise Time | 0.12µs | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 1100nm | ||
Package Type Chip LED | ||
Amplifier Function No | ||
Mounting Type Surface Mount | ||
Number of Pins 2 | ||
Diode Material Si | ||
Minimum Wavelength Detected 300nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.12µs | ||
Length 2mm | ||
Width 1.25mm | ||
Height 0.8mm | ||
Diameter 2 x 1.25 x 0.8mm | ||
Polarity Reverse | ||
Typical Rise Time 0.12µs | ||
- COO (Country of Origin):
- TW
OSRAM Opto Semiconductors Photodiode
The OSRAM Opto Semiconductors chip LED silicon PIN photodiode has a photocurrent rating of 1.5μA and a peak wavelength rating of 890nm. It is used for industrial automation (machine controls, light barriers, vision controls).
Features and Benefits
• ESD: 2kV
• Especially suitable for 700nm to 1100nm wavelength
• Package: black epoxy
• Extremely small SMT package
• Especially suitable for 700nm to 1100nm wavelength
• Package: black epoxy
• Extremely small SMT package
Certifications
• ANSI
• ESDA
• JEDEC JS-001 (HBM, Class 2)
• ESDA
• JEDEC JS-001 (HBM, Class 2)
