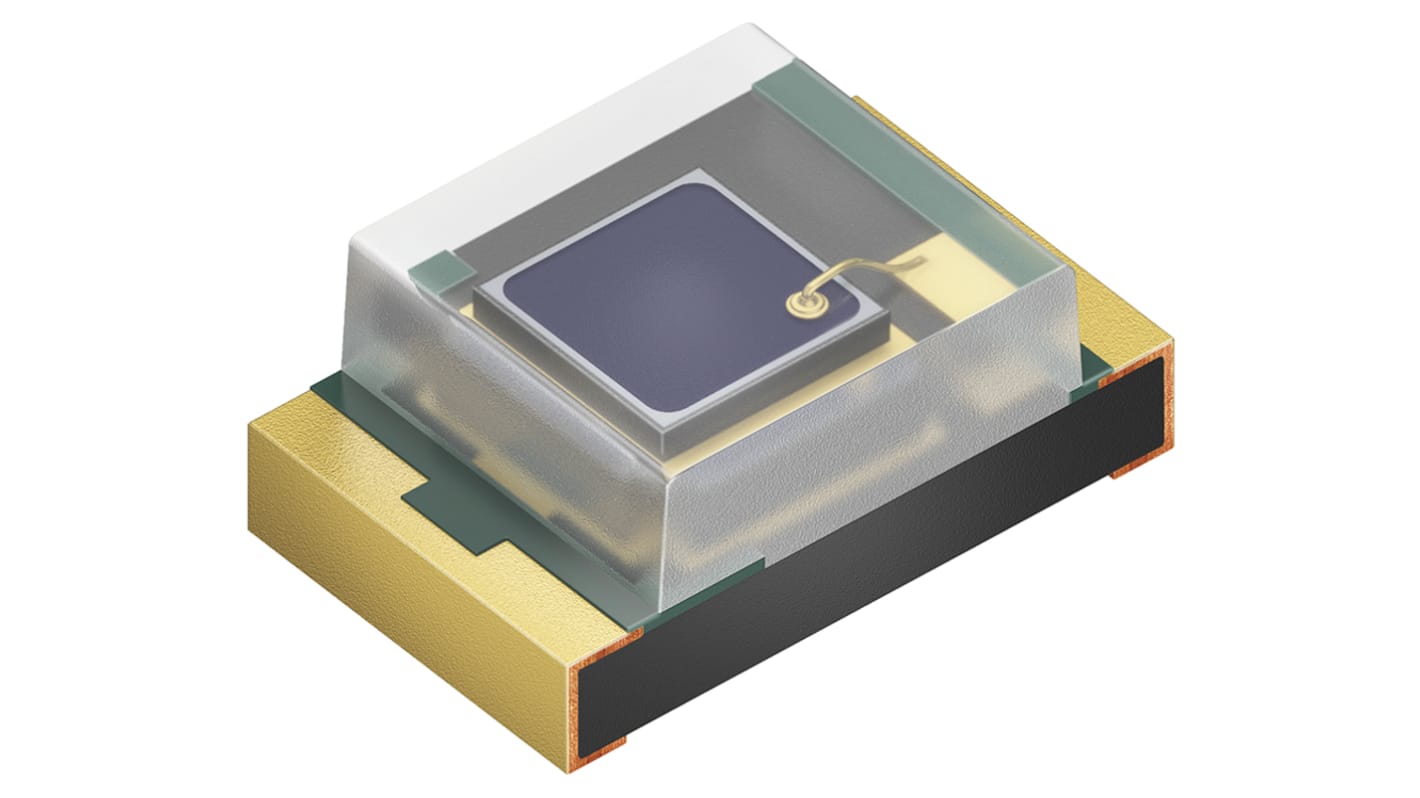

ams OSRAM Infrared Photodiode, 60 °, Surface Mount Chip LED
- RS Stock No.:
- 176-4147
- Mfr. Part No.:
- SFH 2700
- Brand:
- ams OSRAM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 176-4147
- Mfr. Part No.:
- SFH 2700
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 1100nm | |
| Package Type | Chip LED | |
| Packaging | Tape & Reel | |
| Mount Type | Surface Mount | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 300nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.12μs | |
| Minimum Operating Temperature | -40°C | |
| Amplified | No | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Width | 1.25mm | |
| Length | 2mm | |
| Height | 0.8mm | |
| Angle of Half Sensitivity | 60 ° | |
| Automotive Standard | No | |
| Series | SFH | |
| Typical Rise Time | 0.12μs | |
| Open Circuit Voltage | 350mV | |
| Breakdown Voltage | 20V | |
| Polarity | Reverse | |
| Short Circuit Current | 71μA | |
| Dark Current | 5nA | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 1100nm | ||
Package Type Chip LED | ||
Packaging Tape & Reel | ||
Mount Type Surface Mount | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 300nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.12μs | ||
Minimum Operating Temperature -40°C | ||
Amplified No | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Width 1.25mm | ||
Length 2mm | ||
Height 0.8mm | ||
Angle of Half Sensitivity 60 ° | ||
Automotive Standard No | ||
Series SFH | ||
Typical Rise Time 0.12μs | ||
Open Circuit Voltage 350mV | ||
Breakdown Voltage 20V | ||
Polarity Reverse | ||
Short Circuit Current 71μA | ||
Dark Current 5nA | ||
OSRAM Opto Semiconductors Photodiode
The OSRAM Opto Semiconductors chip LED silicon PIN photodiode has a photocurrent rating of 1.5μA and a peak wavelength rating of 890nm. It is used for industrial automation (machine controls, light barriers, vision controls).
Features and Benefits
• ESD: 2kV
• Especially suitable for 700nm to 1100nm wavelength
• Package: black epoxy
• Extremely small SMT package
Certifications
• ANSI
• ESDA
• JEDEC JS-001 (HBM, Class 2)
