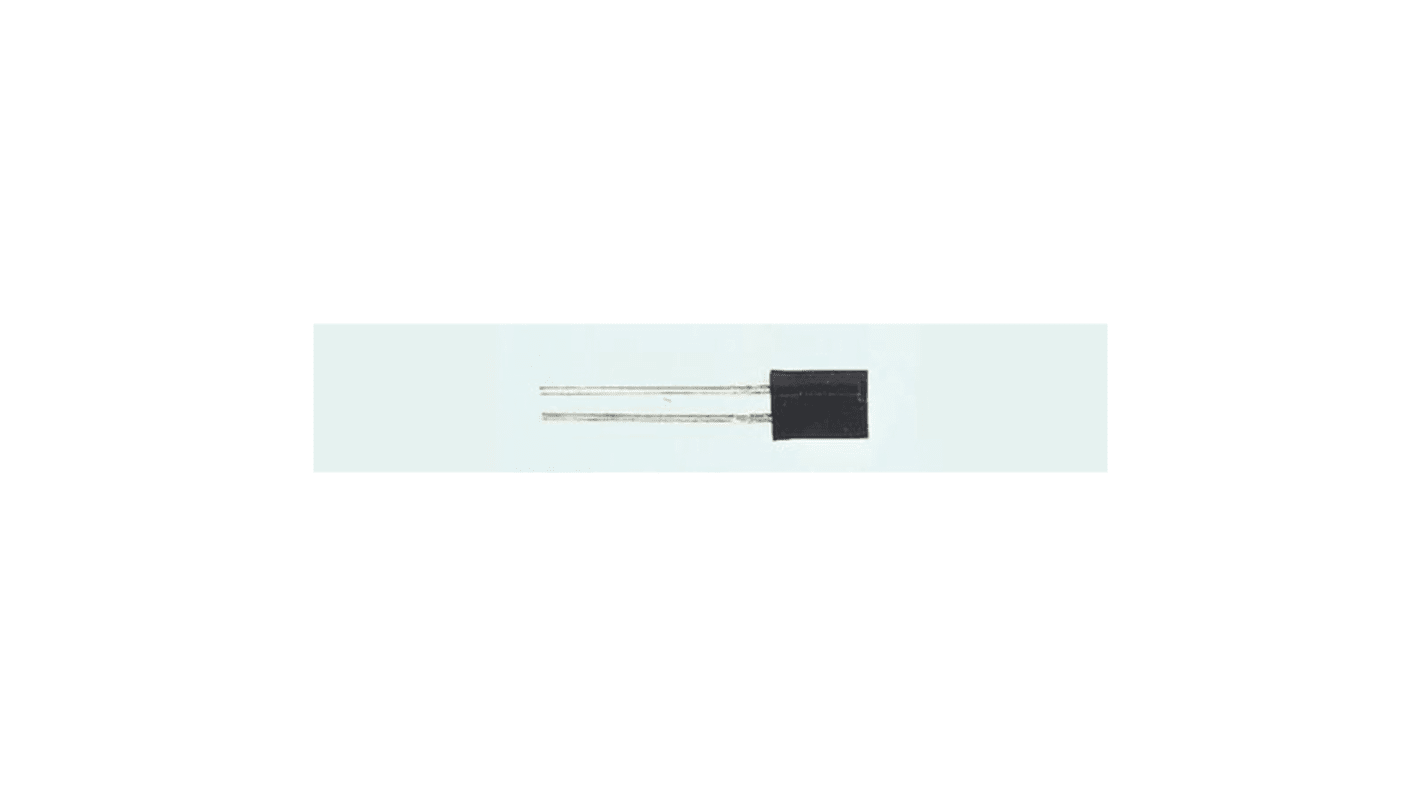

ams OSRAM, SFH 235 FA IR Si Photodiode, 65 °, Through Hole
- RS Stock No.:
- 168-5319
- Mfr. Part No.:
- SFH 235 FA
- Brand:
- ams OSRAM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 168-5319
- Mfr. Part No.:
- SFH 235 FA
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 900nm | |
| Mounting Type | Through Hole | |
| Number of Pins | 2 | |
| Diode Material | Si | |
| Minimum Wavelength Detected | 740nm | |
| Maximum Wavelength Detected | 1120nm | |
| Length | 5.1mm | |
| Width | 3.1mm | |
| Height | 7.2mm | |
| Angle of Half Sensitivity | 65 ° | |
| Peak Photo Sensitivity | 0.63A/W | |
| Polarity | Forward | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 900nm | ||
Mounting Type Through Hole | ||
Number of Pins 2 | ||
Diode Material Si | ||
Minimum Wavelength Detected 740nm | ||
Maximum Wavelength Detected 1120nm | ||
Length 5.1mm | ||
Width 3.1mm | ||
Height 7.2mm | ||
Angle of Half Sensitivity 65 ° | ||
Peak Photo Sensitivity 0.63A/W | ||
Polarity Forward | ||
PIN Photodiode Sidelooker Package
This family of PIN photodiodes, from OSRAM Opto Semiconductors, are in through-hole packages. They are side-looking packages with clear or daylight filter options. They have a range of different radiant sensitive area sizes.
IR Photodiodes, OSRAM Opto Semiconductors
