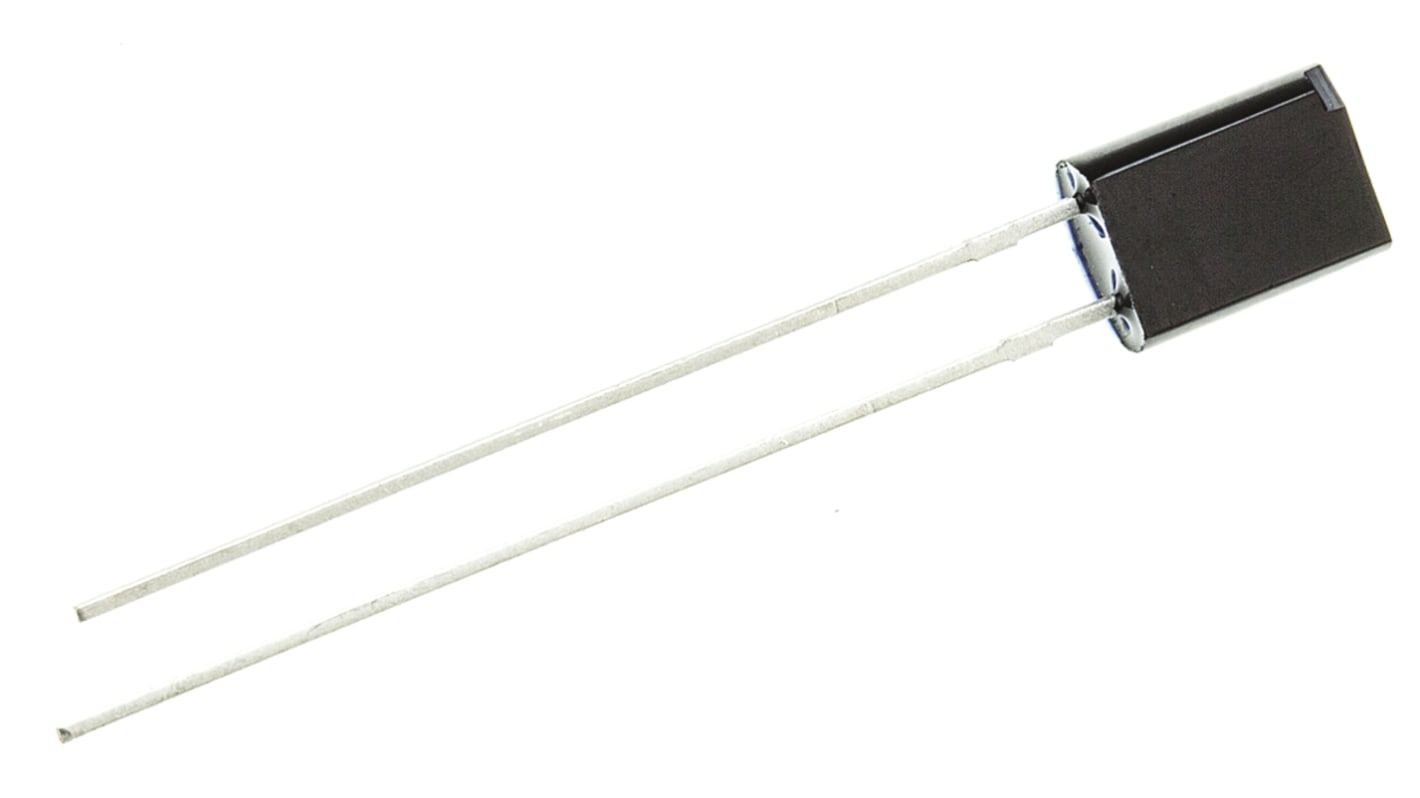

ams OSRAM Infrared Photodiode, ± 60 °, Through Hole T-1 3/4
- RS Stock No.:
- 168-5294
- Mfr. Part No.:
- SFH 205 FA
- Brand:
- ams OSRAM
Subtotal (1 tape of 1000 units)*
£517.00
(exc. VAT)
£620.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 1000 + | £0.517 | £517.00 |
*price indicative
- RS Stock No.:
- 168-5294
- Mfr. Part No.:
- SFH 205 FA
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 900nm | |
| Package Type | T-1 3/4 | |
| Packaging | Tape and Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 740nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 20ns | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Length | 5.1mm | |
| Width | 6.3mm | |
| Standards/Approvals | RoHS Compliant | |
| Height | 6.9mm | |
| Diameter | 5mm | |
| Angle of Half Sensitivity | ± 60 ° | |
| Short Circuit Current | 56μA | |
| Polarity | Forward | |
| Automotive Standard | No | |
| Series | SFH | |
| Typical Rise Time | 20ns | |
| Open Circuit Voltage | 330V | |
| Breakdown Voltage | 32V | |
| Dark Current | 2nA | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 900nm | ||
Package Type T-1 3/4 | ||
Packaging Tape and Reel | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 740nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 20ns | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Length 5.1mm | ||
Width 6.3mm | ||
Standards/Approvals RoHS Compliant | ||
Height 6.9mm | ||
Diameter 5mm | ||
Angle of Half Sensitivity ± 60 ° | ||
Short Circuit Current 56μA | ||
Polarity Forward | ||
Automotive Standard No | ||
Series SFH | ||
Typical Rise Time 20ns | ||
Open Circuit Voltage 330V | ||
Breakdown Voltage 32V | ||
Dark Current 2nA | ||
PIN Photodiode Sidelooker Package
This family of PIN photodiodes, from OSRAM Opto Semiconductors, are in through-hole packages. They are side-looking packages with clear or daylight filter options. They have a range of different radiant sensitive area sizes.
