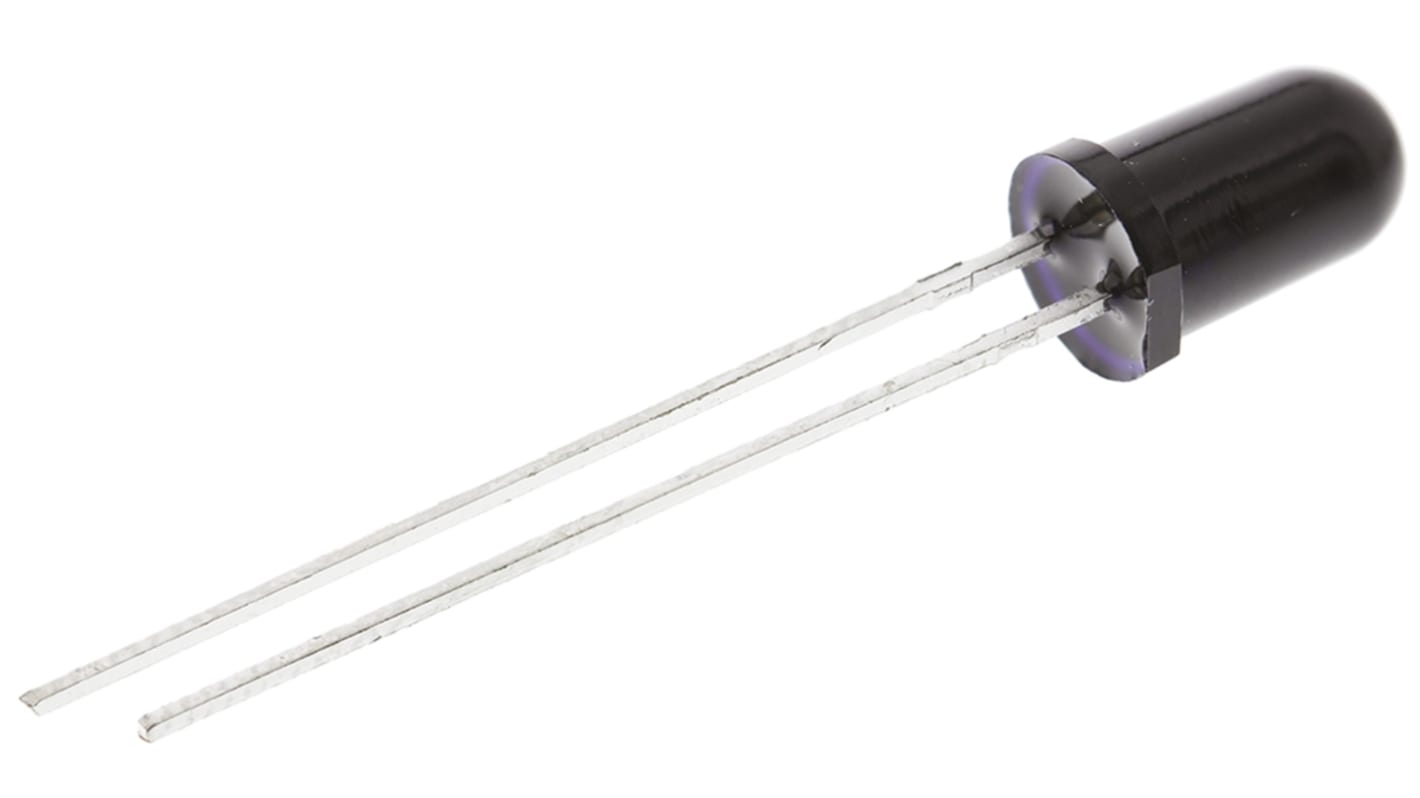

ams OSRAM SFH 213 FA Infrared Photodiode, 20 °, Through Hole T-1 3/4
- RS Stock No.:
- 654-8895
- Distrelec Article No.:
- 304-42-809
- Mfr. Part No.:
- SFH 213 FA
- Brand:
- ams OSRAM
Get a bulk buy discount
Add 10 more to save £1.00
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£2.58
(exc. VAT)
£3.09
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 11,760 unit(s) shipping from 17 November 2026
- Plus 310 unit(s) shipping from 17 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 5 - 5 | £0.516 | £2.58 | - |
| 10 - 45 | £0.416 | £2.08 | £1.00 |
| 50 - 245 | £0.322 | £1.61 | £9.70 |
| 250 - 495 | £0.258 | £1.29 | £64.50 |
| 500 + | £0.218 | £1.09 | £149.00 |
*price indicative
- RS Stock No.:
- 654-8895
- Distrelec Article No.:
- 304-42-809
- Mfr. Part No.:
- SFH 213 FA
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 900nm | |
| Package Type | T-1 3/4 | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 750nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.005μs | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 9mm | |
| Length | 5.9mm | |
| Width | 5mm | |
| Standards/Approvals | RoHS | |
| Angle of Half Sensitivity | 20 ° | |
| Automotive Standard | No | |
| Typical Rise Time | 0.005μs | |
| Breakdown Voltage | 20V | |
| Polarity | Forward | |
| Series | SFH | |
| Open Circuit Voltage | 350mV | |
| Short Circuit Current | 71μA | |
| Dark Current | 5nA | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 900nm | ||
Package Type T-1 3/4 | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 750nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.005μs | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 9mm | ||
Length 5.9mm | ||
Width 5mm | ||
Standards/Approvals RoHS | ||
Angle of Half Sensitivity 20 ° | ||
Automotive Standard No | ||
Typical Rise Time 0.005μs | ||
Breakdown Voltage 20V | ||
Polarity Forward | ||
Series SFH | ||
Open Circuit Voltage 350mV | ||
Short Circuit Current 71μA | ||
Dark Current 5nA | ||
PIN Photodiode - T-1 3/4 (5mm) Package
This family of PIN photodiodes, from OSRAM Opto Semiconductors, are in standard T-1 3/4 (5mm) through-hole packages. They have a 1 x 1 mm² radiant sensitive area. The T-1 3/4 package photodiodes offer a short switching time. Suitable applications include high speed photointerrupters, industrial electronics and control and drive circuits.
IR Photodiodes, OSRAM Opto Semiconductors
