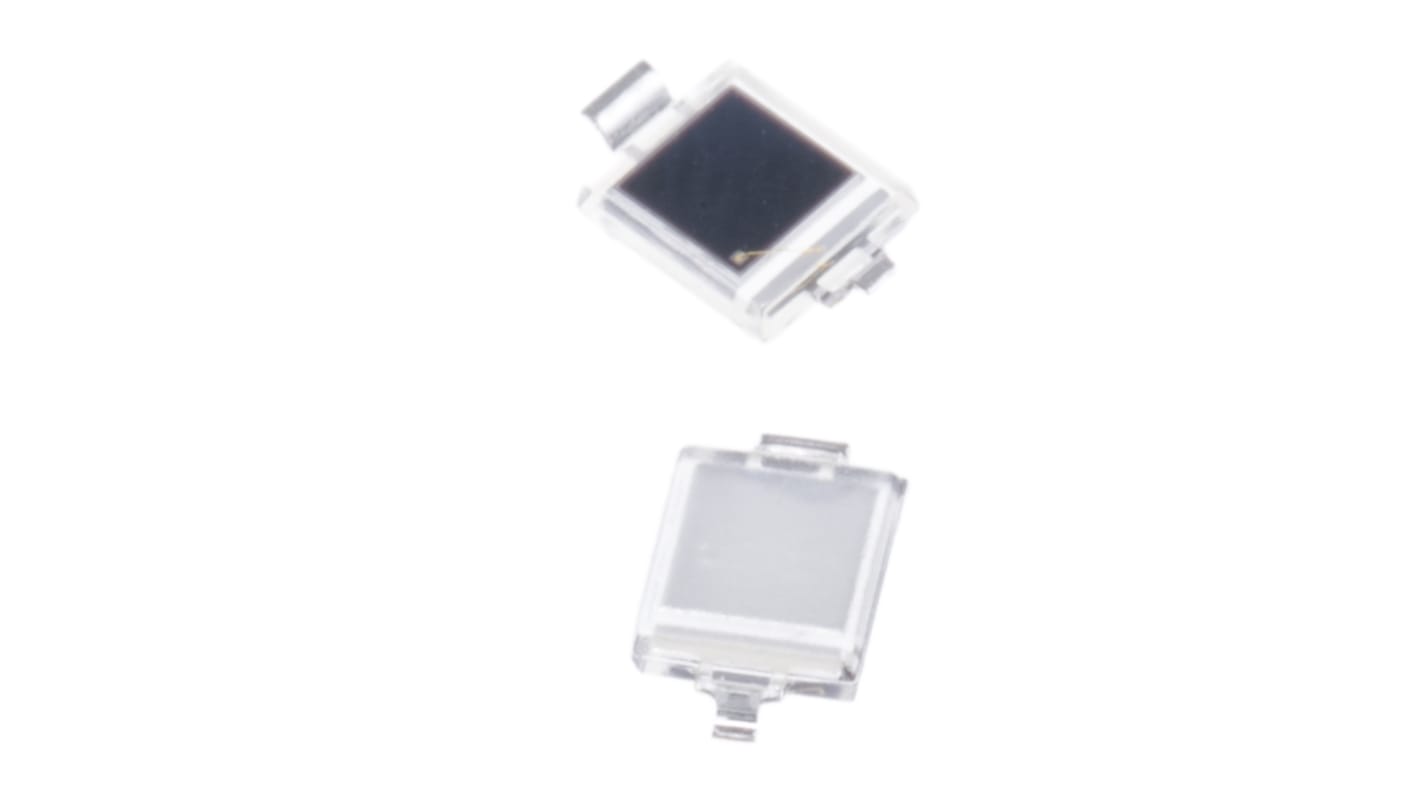

ams OSRAM Visible Light, Infrared Photodiode, 60 °, Surface Mount DIP
- RS Stock No.:
- 168-5302
- Mfr. Part No.:
- BPW 34 SR
- Brand:
- ams OSRAM
Subtotal (1 reel of 1500 units)*
£519.00
(exc. VAT)
£622.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.346 | £519.00 |
*price indicative
- RS Stock No.:
- 168-5302
- Mfr. Part No.:
- BPW 34 SR
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Photodiode | |
| Spectrums Detected | Visible Light, Infrared | |
| Wavelength of Peak Sensitivity | 850nm | |
| Package Type | DIP | |
| Packaging | Tape & Reel | |
| Mount Type | Surface Mount | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 400nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 20ns | |
| Minimum Operating Temperature | -40°C | |
| Amplified | No | |
| Maximum Operating Temperature | 100°C | |
| Length | 4.5mm | |
| Width | 4mm | |
| Standards/Approvals | RoHS | |
| Height | 1.2mm | |
| Angle of Half Sensitivity | 60 ° | |
| Open Circuit Voltage | 330mV | |
| Automotive Standard | No | |
| Breakdown Voltage | 16V | |
| Polarity | Reverse | |
| Typical Rise Time | 20ns | |
| Short Circuit Current | 25μA | |
| Dark Current | 2nA | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Photodiode | ||
Spectrums Detected Visible Light, Infrared | ||
Wavelength of Peak Sensitivity 850nm | ||
Package Type DIP | ||
Packaging Tape & Reel | ||
Mount Type Surface Mount | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 400nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 20ns | ||
Minimum Operating Temperature -40°C | ||
Amplified No | ||
Maximum Operating Temperature 100°C | ||
Length 4.5mm | ||
Width 4mm | ||
Standards/Approvals RoHS | ||
Height 1.2mm | ||
Angle of Half Sensitivity 60 ° | ||
Open Circuit Voltage 330mV | ||
Automotive Standard No | ||
Breakdown Voltage 16V | ||
Polarity Reverse | ||
Typical Rise Time 20ns | ||
Short Circuit Current 25μA | ||
Dark Current 2nA | ||
PIN Photodiode, Radiant Sensitive Area 2.65x2.65mm
This family of PIN photodiodes, from OSRAM Opto Semiconductors, have a sensitive area of 2.65 x 2.65 mm². They are available with or without daylight filter.
These PIN photodiodes are Ideal for high speed applications.
IR Photodiodes, OSRAM Opto Semiconductors
