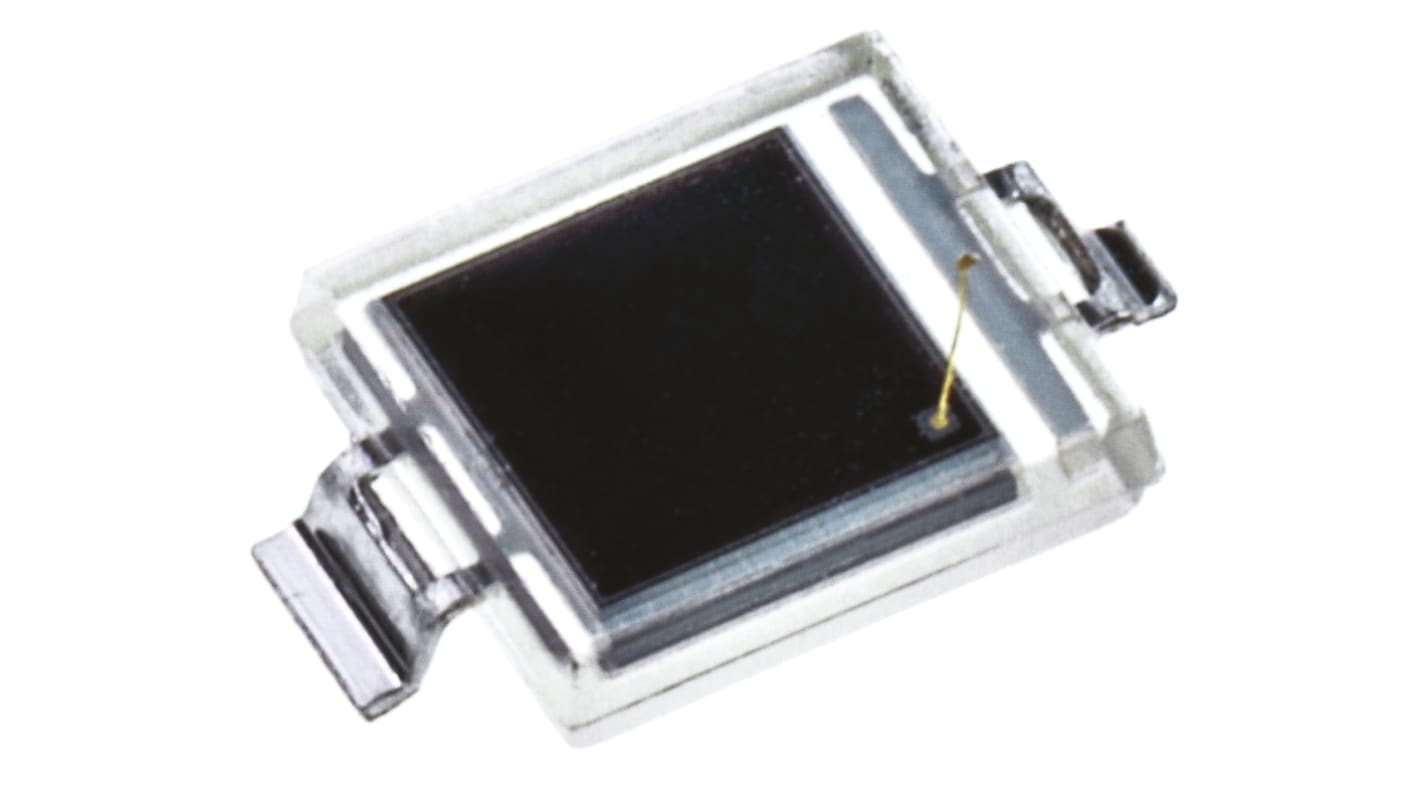

OSRAM Opto Semiconductors BPW 34 S Visible Light, Infrared Photodiode, 60 °, Surface Mount DIP
- RS Stock No.:
- 652-0207
- Mfr. Part No.:
- BPW 34 S
- Brand:
- OSRAM Opto Semiconductors
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.42
(exc. VAT)
£5.305
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 10 | £0.884 | £4.42 |
| 15 - 70 | £0.84 | £4.20 |
| 75 - 370 | £0.606 | £3.03 |
| 375 - 745 | £0.414 | £2.07 |
| 750 + | £0.344 | £1.72 |
*price indicative
- RS Stock No.:
- 652-0207
- Mfr. Part No.:
- BPW 34 S
- Brand:
- OSRAM Opto Semiconductors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSRAM Opto Semiconductors | |
| Product Type | Photodiode | |
| Spectrums Detected | Visible Light, Infrared | |
| Wavelength of Peak Sensitivity | 850nm | |
| Package Type | DIP | |
| Packaging | Tape & Reel | |
| Mount Type | Surface Mount | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 400nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.02μs | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Width | 4mm | |
| Standards/Approvals | RoHS | |
| Height | 1.2mm | |
| Length | 4.5mm | |
| Angle of Half Sensitivity | 60 ° | |
| Dark Current | 2nA | |
| Polarity | Reverse | |
| Automotive Standard | No | |
| Typical Rise Time | 0.02μs | |
| Open Circuit Voltage | 330mV | |
| Breakdown Voltage | 16V | |
| Short Circuit Current | 80μA | |
| Select all | ||
|---|---|---|
Brand OSRAM Opto Semiconductors | ||
Product Type Photodiode | ||
Spectrums Detected Visible Light, Infrared | ||
Wavelength of Peak Sensitivity 850nm | ||
Package Type DIP | ||
Packaging Tape & Reel | ||
Mount Type Surface Mount | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 400nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.02μs | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Width 4mm | ||
Standards/Approvals RoHS | ||
Height 1.2mm | ||
Length 4.5mm | ||
Angle of Half Sensitivity 60 ° | ||
Dark Current 2nA | ||
Polarity Reverse | ||
Automotive Standard No | ||
Typical Rise Time 0.02μs | ||
Open Circuit Voltage 330mV | ||
Breakdown Voltage 16V | ||
Short Circuit Current 80μA | ||
PIN Photodiode DIL Package
This family of IR photodiodes, from OSRAM Opto Semiconductors, are from the BPW 34 series. They come in surface mount (SMD) or through-hole DIL plastic packages with a radiant sensitive area of 2.65 x 2.65 mm². They BPW 34 IR photodiodes are designed for applications with wavelength range of up to 1100 nm. Other suitable applications include; photointerrupters, IR remote control and automotive sensors, headsets etc.
IR Photodiodes, OSRAM Opto Semiconductors
