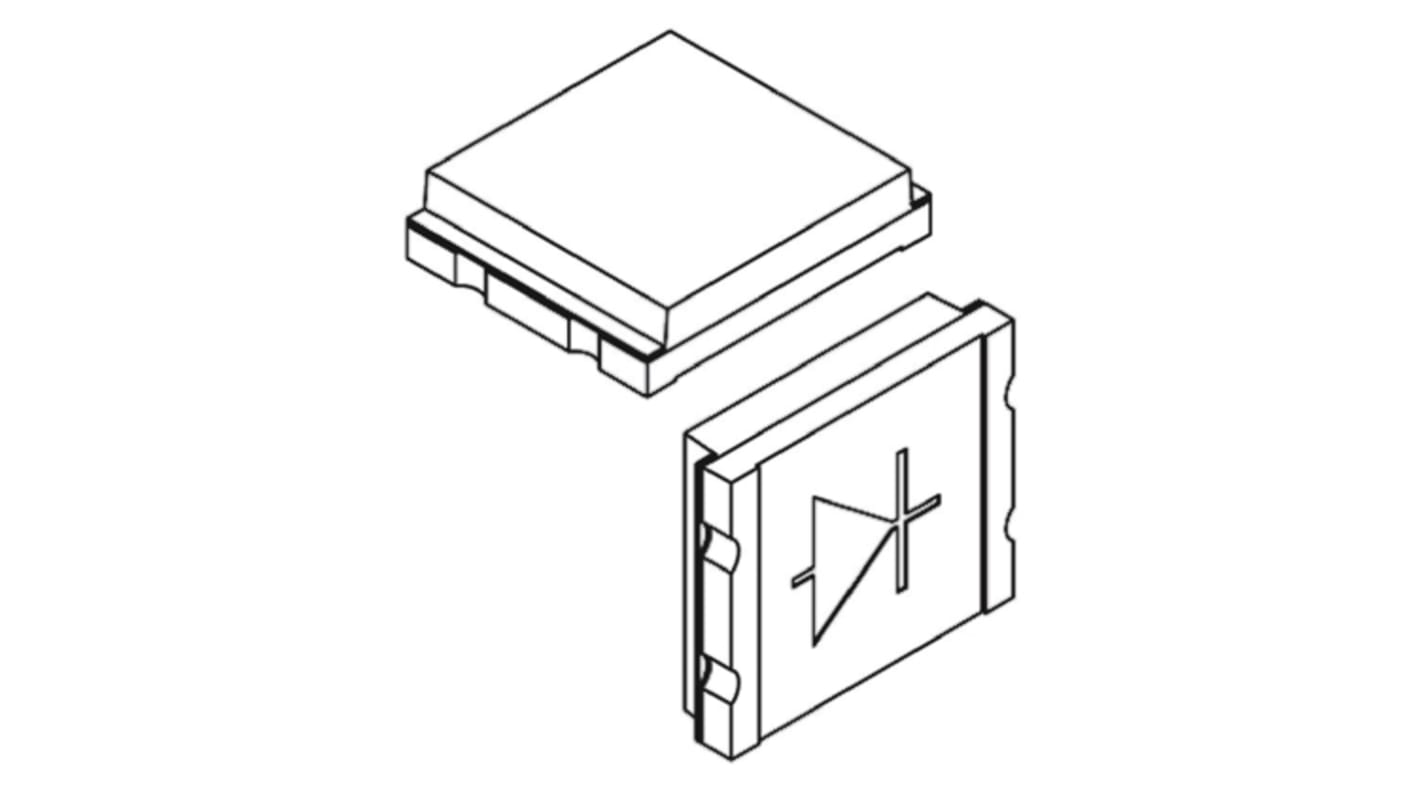

Vishay, TEMD5010X01 IR + Visible Light Si Photodiode, 65 °, Surface Mount

  • RS Stock No. 165-2705
  • Mfr. Part No. TEMD5010X01
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

TEMD5010 Series PIN Photodiodes

The TEMD5010, from Vishay Semiconductors, is a silicon PIN photodiode. It comes in a compact, surface mount (SMD) packages containing and chip with a sensitive area of 7.5mm². The TEMD5010 detects both visible and near IR radiation. They are ideal for use in high speed photodetector applications.

Features of the TEMD5010 photodiode:
Surface mounted (SMD)
Top looking
Dimensions: 5 x 4.24 x 1.12
High radiant sensitivity
High photo sensitivity
Fast response times
Angle of half intensity: 65°

Photodiodes, Vishay Semiconductor

Specifications
Attribute Value
Spectrums Detected Infrared, Visible Light
Wavelength of Peak Sensitivity 940nm
Mounting Type Surface Mount
Number of Pins 4
Diode Material Si
Minimum Wavelength Detected 430nm
Maximum Wavelength Detected 1100nm
Length 4.2mm
Width 5mm
Height 1.08mm
Polarity Forward
Angle of Half Sensitivity 65 °
1500 In stock for FREE next working day delivery
Price Each (On a Reel of 1500)
£ 0.374
(exc. VAT)
£ 0.449
(inc. VAT)
Units
Per unit
Per Reel*
1500 +
£0.374
£561.00
*price indicative
