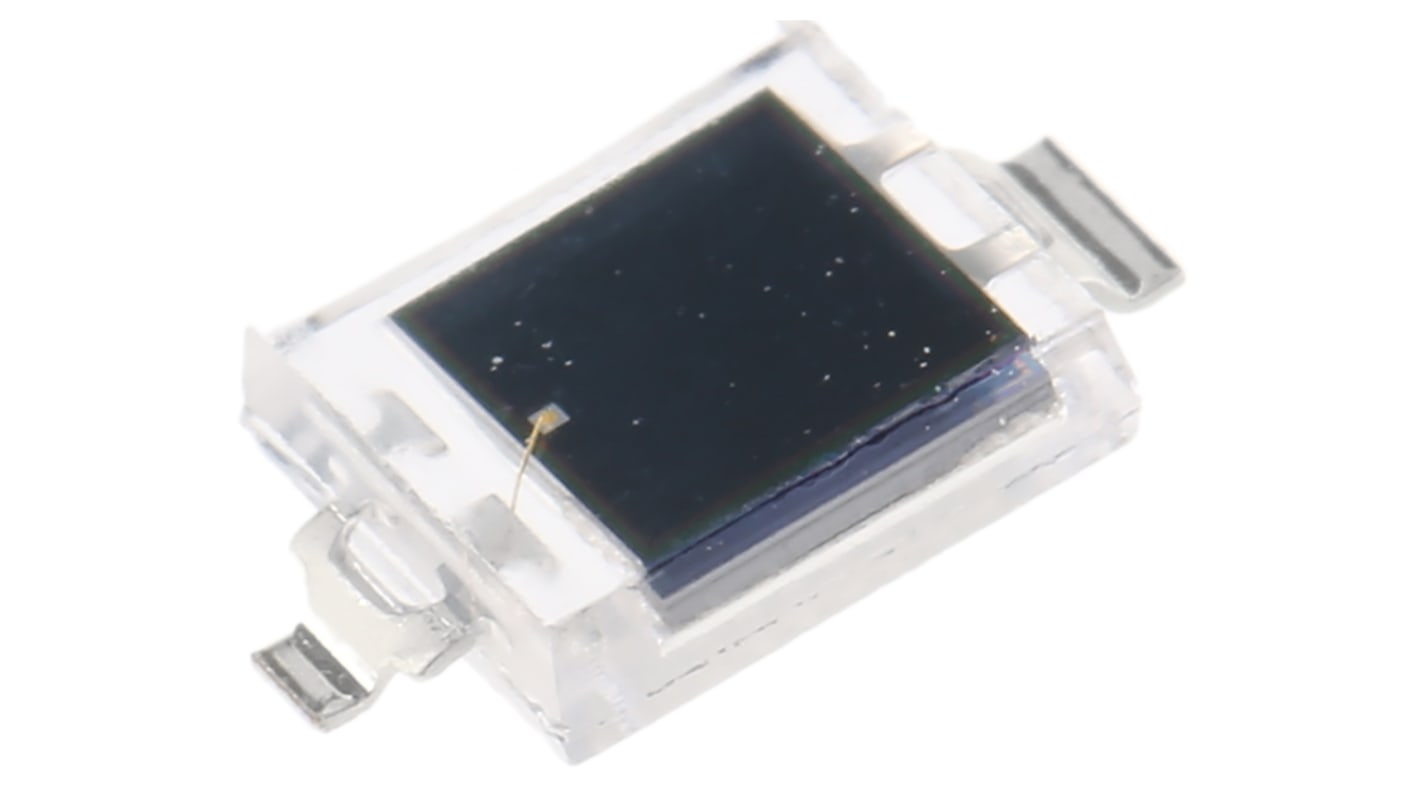

Vishay VBPW34S Infrared, Visible Light Photodiode, 65 °, Surface Mount GW
- RS Stock No.:
- 768-9405
- Mfr. Part No.:
- VBPW34S
- Brand:
- Vishay
Bulk discount available
Subtotal (1 bag of 5 units)*
£4.41
(exc. VAT)
£5.29
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 45 | £0.882 | £4.41 |
| 50 - 120 | £0.572 | £2.86 |
| 125 - 245 | £0.546 | £2.73 |
| 250 - 495 | £0.442 | £2.21 |
| 500 + | £0.396 | £1.98 |
*price indicative
- RS Stock No.:
- 768-9405
- Mfr. Part No.:
- VBPW34S
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Spectrums Detected | Infrared, Visible Light | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 940nm | |
| Package Type | GW | |
| Packaging | Tape & Reel | |
| Mount Type | Surface Mount | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 430nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 80ns | |
| Minimum Operating Temperature | -40°C | |
| Amplified | No | |
| Maximum Operating Temperature | 100°C | |
| Height | 1.2mm | |
| Length | 4.4mm | |
| Standards/Approvals | RoHS | |
| Width | 3.9mm | |
| Angle of Half Sensitivity | 65 ° | |
| Dark Current | 2nA | |
| Short Circuit Current | 50μA | |
| Polarity | Forward | |
| Automotive Standard | AEC-Q101 | |
| Typical Rise Time | 80ns | |
| Open Circuit Voltage | 350mV | |
| Breakdown Voltage | 60V | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Spectrums Detected Infrared, Visible Light | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 940nm | ||
Package Type GW | ||
Packaging Tape & Reel | ||
Mount Type Surface Mount | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 430nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 80ns | ||
Minimum Operating Temperature -40°C | ||
Amplified No | ||
Maximum Operating Temperature 100°C | ||
Height 1.2mm | ||
Length 4.4mm | ||
Standards/Approvals RoHS | ||
Width 3.9mm | ||
Angle of Half Sensitivity 65 ° | ||
Dark Current 2nA | ||
Short Circuit Current 50μA | ||
Polarity Forward | ||
Automotive Standard AEC-Q101 | ||
Typical Rise Time 80ns | ||
Open Circuit Voltage 350mV | ||
Breakdown Voltage 60V | ||
VBPW34 Series PIN Photodiodes
The VBPW34S and VBPW34SR series, from Vishay Semiconductor, are a family of silicon PIN photodiodes. They offer high speed and high sensitivity. The VBPW34S and VBPW34SR devices come in surface mount (SMD) packages containing a 7.5mm² chip. These PIN photodiodes are for detecting visible and near IR radiation.
Features of the VBPW34S and VBPW34SR PIN photodiodes:
SMD packages
Lead types: gull-wing (GW) and reverse gull-wing (RGW)
Dimensions: 6.4 x 3.9 x 1.2 mm
Fast response times
