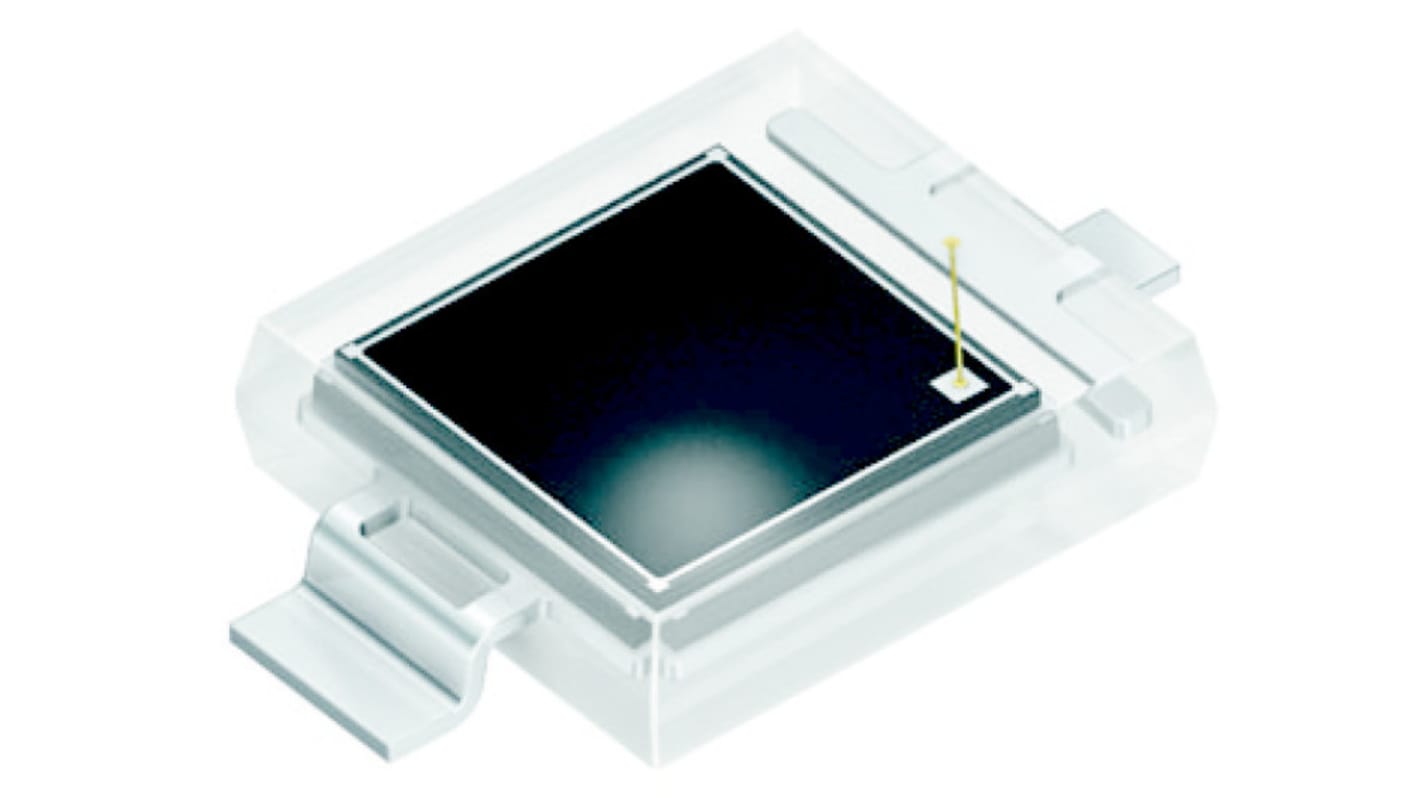

ams OSRAM, SFH 2401 IR + Visible Light Si Photodiode, Surface Mount DIL
- RS Stock No.:
- 224-9981
- Mfr. Part No.:
- SFH 2401
- Brand:
- ams OSRAM
Bulk discount available
Subtotal (1 pack of 10 units)*
£8.60
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 870 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.86 | £8.60 |
| 50 - 90 | £0.754 | £7.54 |
| 100 - 240 | £0.637 | £6.37 |
| 250 - 490 | £0.619 | £6.19 |
| 500 + | £0.593 | £5.93 |
*price indicative
- RS Stock No.:
- 224-9981
- Mfr. Part No.:
- SFH 2401
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared, Visible Light | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | DIL | |
| Amplifier Function | No | |
| Mounting Type | Surface Mount | |
| Number of Pins | 2 | |
| Diode Material | Si | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared, Visible Light | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type DIL | ||
Amplifier Function No | ||
Mounting Type Surface Mount | ||
Number of Pins 2 | ||
Diode Material Si | ||
The OSRAM Opto Semiconductors Silicon PIN Photodiode with enhanced blue and green sensitivity has 2 kV ESD according to ANSI/ESDA/JEDEC JS-001. It has solder control structure and suitable for reflow soldering. It is used in industrial automation (machine controls, light barriers, vision controls).
It is DIL plastic package with high packing density
It has operating temperature from -40 °C to 85 °C
It has operating temperature from -40 °C to 85 °C
