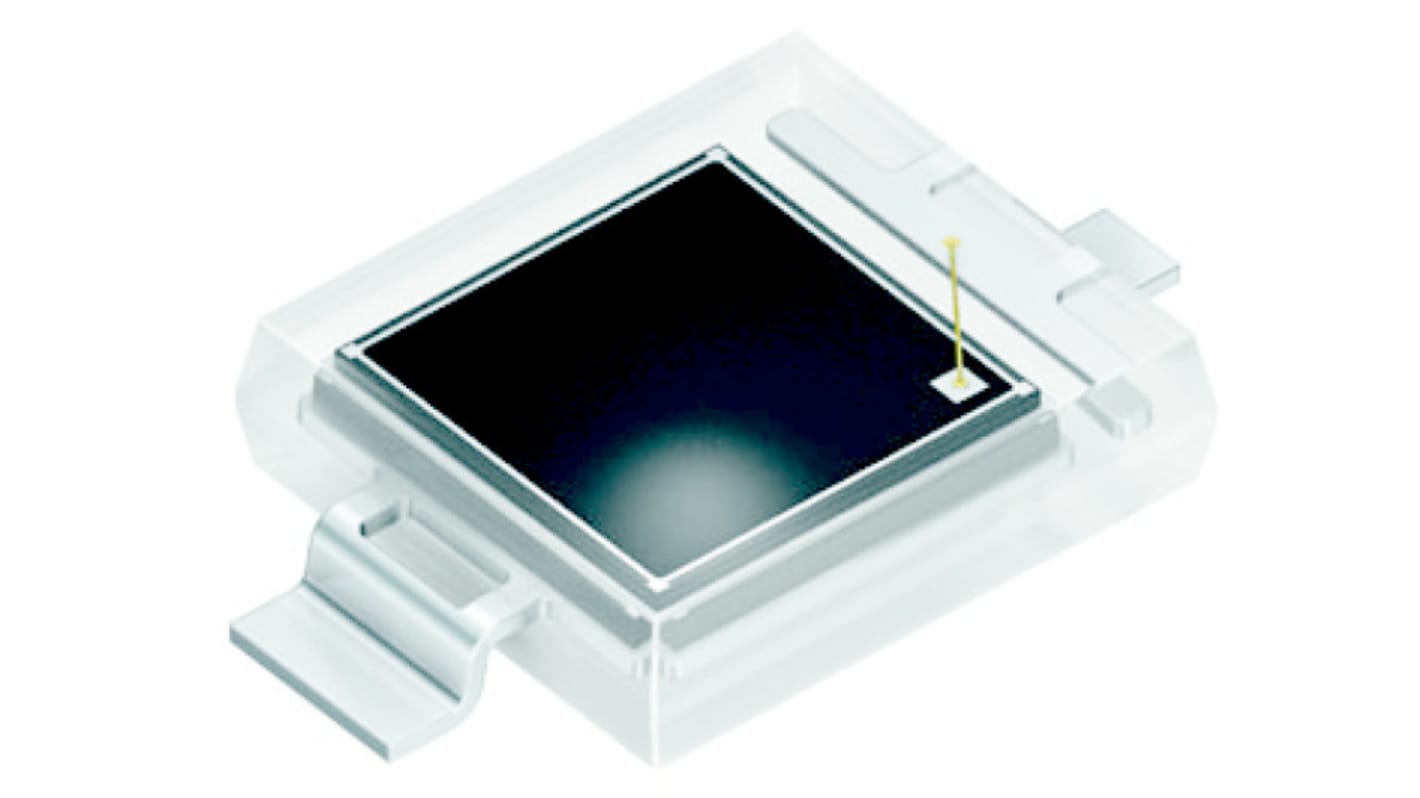

ams OSRAM SFH 2401 Infrared, Visible Light Photodiode, 60 °, Surface DIL
- RS Stock No.:
- 224-9980
- Mfr. Part No.:
- SFH 2401
- Brand:
- ams OSRAM
Subtotal (1 reel of 1500 units)*
£781.50
(exc. VAT)
£937.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.521 | £781.50 |
*price indicative
- RS Stock No.:
- 224-9980
- Mfr. Part No.:
- SFH 2401
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared, Visible Light | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | DIL | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 300nm | |
| Maximum Wavelength Detected | 950nm | |
| Typical Fall Time | 40ns | |
| Minimum Operating Temperature | -40°C | |
| Amplified | No | |
| Maximum Operating Temperature | 85°C | |
| Height | 2mm | |
| Length | 4.5mm | |
| Width | 5mm | |
| Standards/Approvals | RoHS | |
| Angle of Half Sensitivity | 60 ° | |
| Short Circuit Current | 76μA | |
| Polarity | Forward | |
| Dark Current | 5nA | |
| Automotive Standard | No | |
| Open Circuit Voltage | 350mV | |
| Breakdown Voltage | 20V | |
| Typical Rise Time | 40ns | |
| Series | SFH | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type Photodiode | ||
Spectrums Detected Infrared, Visible Light | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type DIL | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 300nm | ||
Maximum Wavelength Detected 950nm | ||
Typical Fall Time 40ns | ||
Minimum Operating Temperature -40°C | ||
Amplified No | ||
Maximum Operating Temperature 85°C | ||
Height 2mm | ||
Length 4.5mm | ||
Width 5mm | ||
Standards/Approvals RoHS | ||
Angle of Half Sensitivity 60 ° | ||
Short Circuit Current 76μA | ||
Polarity Forward | ||
Dark Current 5nA | ||
Automotive Standard No | ||
Open Circuit Voltage 350mV | ||
Breakdown Voltage 20V | ||
Typical Rise Time 40ns | ||
Series SFH | ||
The OSRAM Opto Semiconductors Silicon PIN Photodiode with enhanced blue and green sensitivity has 2 kV ESD according to ANSI/ESDA/JEDEC JS-001. It has solder control structure and suitable for reflow soldering. It is used in industrial automation (machine controls, light barriers, vision controls).
It is DIL plastic package with high packing density
It has operating temperature from -40 °C to 85 °C
