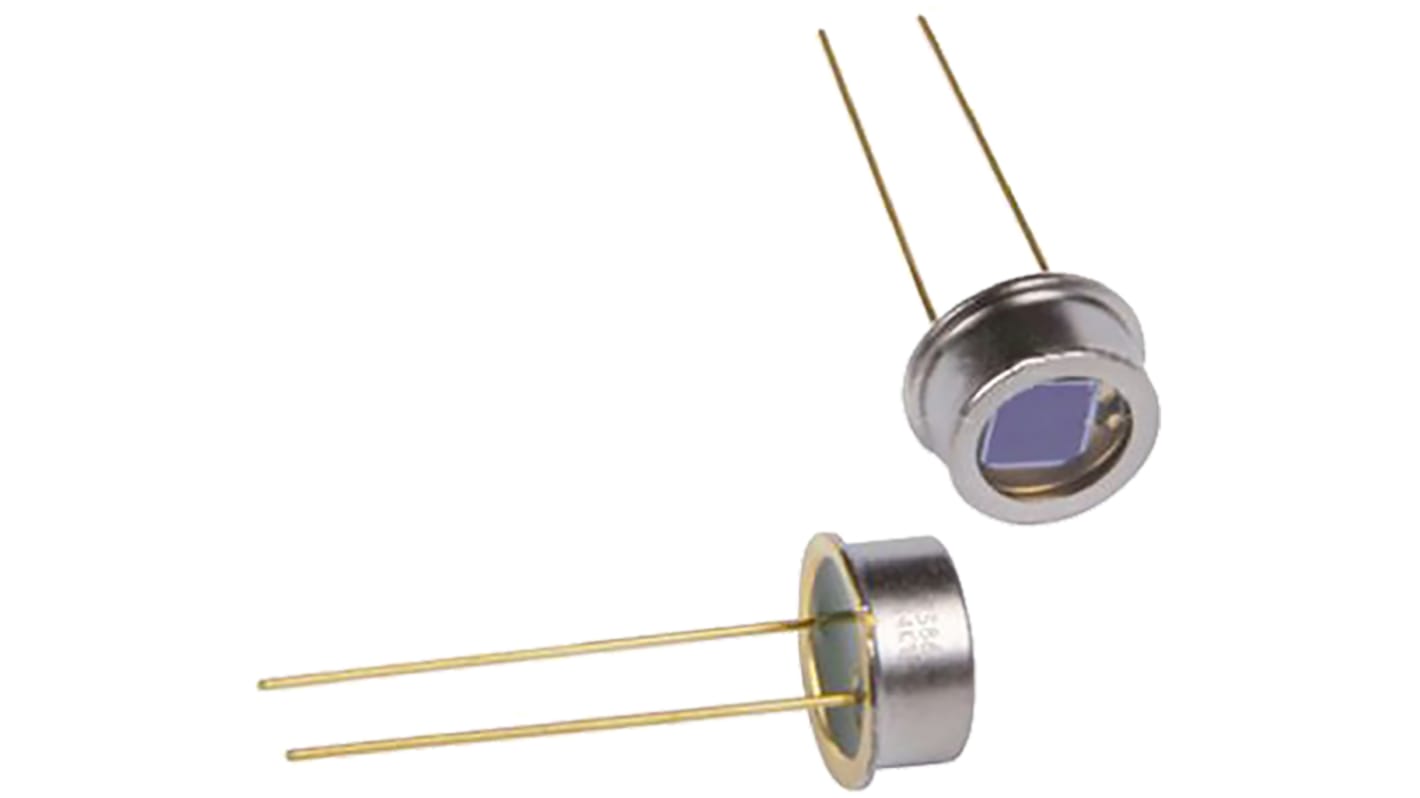

Hamamatsu Photonics S1223 Infrared, Visible Light Photodiode, 65 °, Through Hole TO-5
- RS Stock No.:
- 124-7161
- Mfr. Part No.:
- S1223
- Brand:
- Hamamatsu Photonics
Get a bulk buy discount
Add 2 more to save 4%
View bulk pricing optionsSubtotal (1 unit)*
£8.97
(exc. VAT)
£10.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 110 unit(s) shipping from 20 November 2026
- Plus 110 unit(s) shipping from 18 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 1 | £8.97 | - |
| 2 - 4 | £8.54 | 4% |
| 5 - 9 | £7.61 | 15% |
| 10 - 19 | £5.51 | 38% |
| 20 + | £5.37 | 40% |
*price indicative
- RS Stock No.:
- 124-7161
- Mfr. Part No.:
- S1223
- Brand:
- Hamamatsu Photonics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hamamatsu Photonics | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared, Visible Light | |
| Wavelength of Peak Sensitivity | 960nm | |
| Package Type | TO-5 | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 320nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.6ns | |
| Minimum Operating Temperature | -25°C | |
| Amplified | No | |
| Maximum Operating Temperature | 85°C | |
| Height | 4.1mm | |
| Length | 8.2mm | |
| Width | 6mm | |
| Standards/Approvals | RoHS | |
| Diameter | 9.1mm | |
| Angle of Half Sensitivity | 65 ° | |
| Automotive Standard | No | |
| Series | S1223 | |
| Typical Rise Time | 0.6ns | |
| Breakdown Voltage | 30V | |
| Dark Current | 0.5nA | |
| Short Circuit Current | 6.3μA | |
| Polarity | Positive | |
| Select all | ||
|---|---|---|
Brand Hamamatsu Photonics | ||
Product Type Photodiode | ||
Spectrums Detected Infrared, Visible Light | ||
Wavelength of Peak Sensitivity 960nm | ||
Package Type TO-5 | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 320nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.6ns | ||
Minimum Operating Temperature -25°C | ||
Amplified No | ||
Maximum Operating Temperature 85°C | ||
Height 4.1mm | ||
Length 8.2mm | ||
Width 6mm | ||
Standards/Approvals RoHS | ||
Diameter 9.1mm | ||
Angle of Half Sensitivity 65 ° | ||
Automotive Standard No | ||
Series S1223 | ||
Typical Rise Time 0.6ns | ||
Breakdown Voltage 30V | ||
Dark Current 0.5nA | ||
Short Circuit Current 6.3μA | ||
Polarity Positive | ||
- COO (Country of Origin):
- JP
S1223 Series Si PIN Photodiodes
The S1223 series or Si PIN photodiodes from Hamamatsu are for applications such as optical measurement equipment and analytical equipment
These photodiodes are designed to detect visible to near IR (infrared) light, with precision photometry.
Features and Benefits
Visible to near IR detection
High-speed response
High reliability
TO-5 metal package
