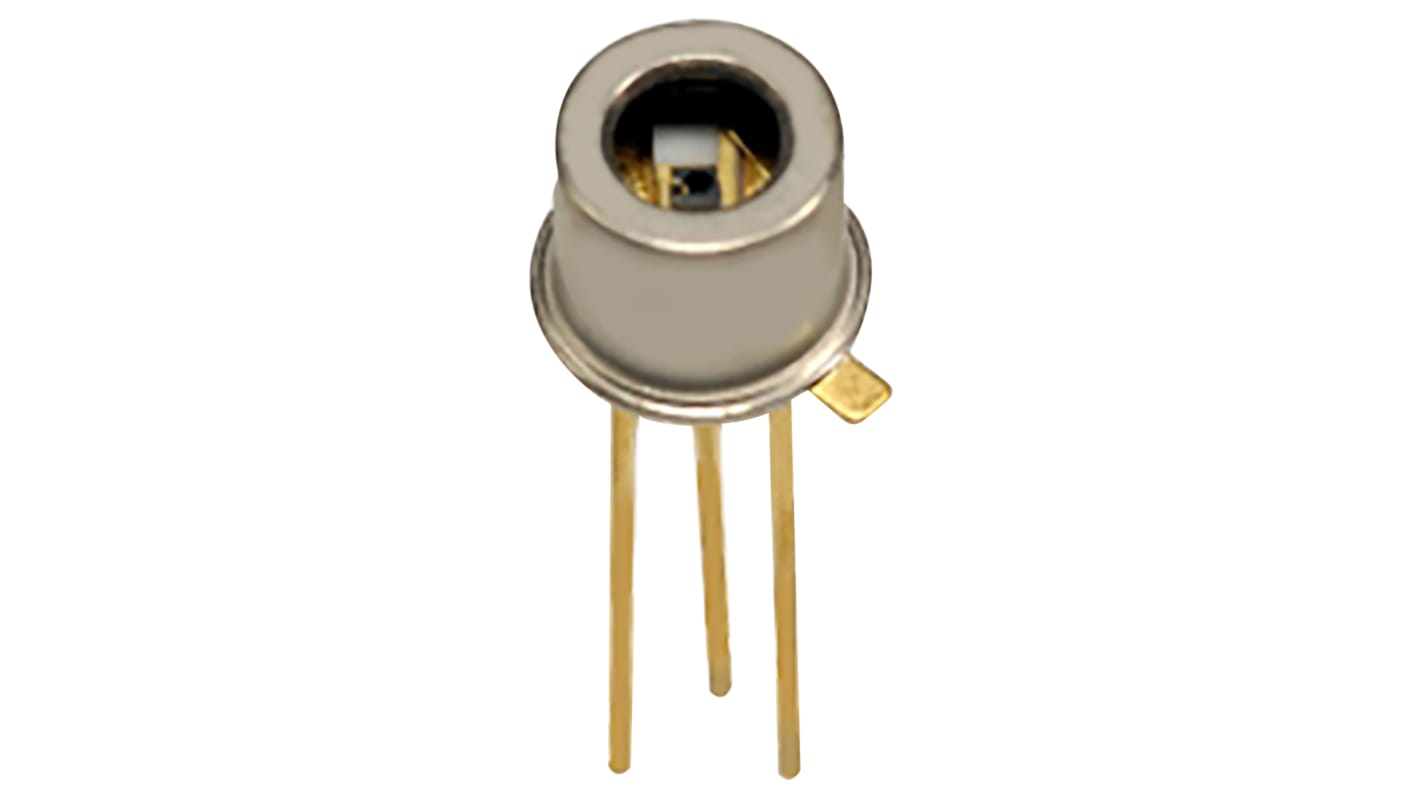

Hamamatsu Photonics S5973 Infrared, Visible Light Photodiode, 65 °, Through Hole TO-18
- RS Stock No.:
- 124-7160
- Mfr. Part No.:
- S5973
- Brand:
- Hamamatsu Photonics
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£18.15
(exc. VAT)
£21.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 113 unit(s) shipping from 10 August 2026
- Plus 18 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £18.15 |
| 2 - 4 | £17.23 |
| 5 - 9 | £14.50 |
| 10 - 19 | £13.17 |
| 20 + | £12.48 |
*price indicative
- RS Stock No.:
- 124-7160
- Mfr. Part No.:
- S5973
- Brand:
- Hamamatsu Photonics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hamamatsu Photonics | |
| Spectrums Detected | Infrared, Visible Light | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 760nm | |
| Package Type | TO-18 | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 3 | |
| Minimum Wavelength Detected | 320nm | |
| Maximum Wavelength Detected | 1000nm | |
| Typical Fall Time | 0.6ns | |
| Amplified | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 8.2mm | |
| Standards/Approvals | RoHS | |
| Width | 6mm | |
| Height | 3.6mm | |
| Diameter | 5.4mm | |
| Angle of Half Sensitivity | 65 ° | |
| Dark Current | 0.5nA | |
| Series | S5973 | |
| Breakdown Voltage | 25V | |
| Polarity | Positive | |
| Short Circuit Current | 0.09μA | |
| Typical Rise Time | 0.6ns | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Hamamatsu Photonics | ||
Spectrums Detected Infrared, Visible Light | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 760nm | ||
Package Type TO-18 | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 3 | ||
Minimum Wavelength Detected 320nm | ||
Maximum Wavelength Detected 1000nm | ||
Typical Fall Time 0.6ns | ||
Amplified No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Length 8.2mm | ||
Standards/Approvals RoHS | ||
Width 6mm | ||
Height 3.6mm | ||
Diameter 5.4mm | ||
Angle of Half Sensitivity 65 ° | ||
Dark Current 0.5nA | ||
Series S5973 | ||
Breakdown Voltage 25V | ||
Polarity Positive | ||
Short Circuit Current 0.09μA | ||
Typical Rise Time 0.6ns | ||
Automotive Standard No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
S5971, S5972 and S5973 Series Si PIN Photodiodes
The S5971, S5972 and S5973 series or Si PIN photodiodes from Hamamatsu are for applications such as optical fibre communication and high speed photometry.
These photodiodes are designed to detect visible to near IR (infrared) light, providing wideband detection properties.
Features and Benefits
Visible to near IR detection
High speed response
High reliability
TO-18 metal package
Photodiodes, Hamamatsu Photonics
