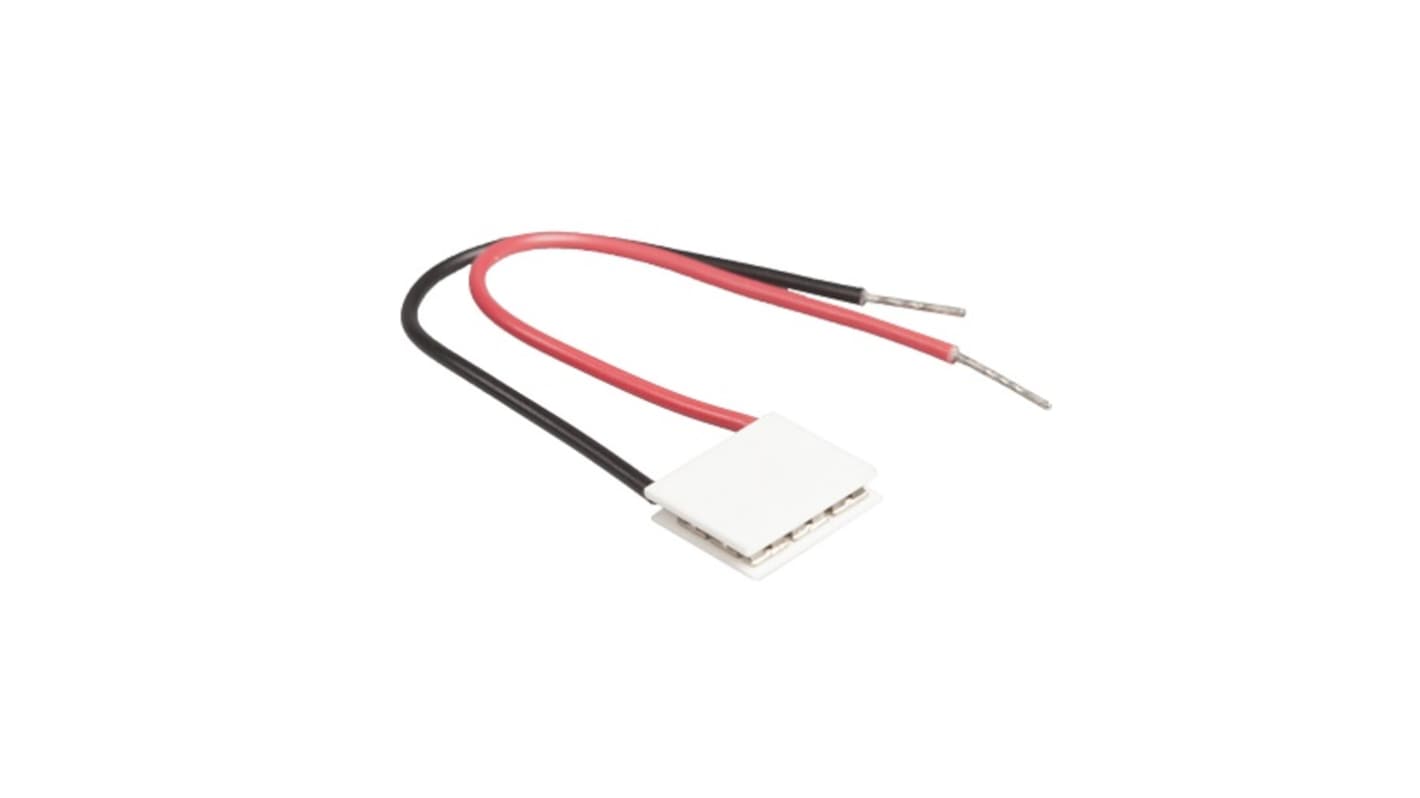

Adaptive Peltier Module, 2.2W, 1.8A, 1.9V dc, 6.6 x 6.6 x 2.2mm
- RS Stock No.:
- 607-001
- Mfr. Part No.:
- APM-017-18MA2
- Brand:
- Adaptive
Subtotal (1 unit)*
£16.13
(exc. VAT)
£19.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £16.13 |
*price indicative
- RS Stock No.:
- 607-001
- Mfr. Part No.:
- APM-017-18MA2
- Brand:
- Adaptive
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Adaptive | |
Maximum Cooling Capacity | 2.2W | |
Maximum Temperature Difference | +64°C | |
Maximum Current | 1.8A | |
Maximum Voltage | 1.9V dc | |
Active Area | 6.6 x 6.6 x 2.2mm | |
Select all | ||
---|---|---|
Brand Adaptive | ||
Maximum Cooling Capacity 2.2W | ||
Maximum Temperature Difference +64°C | ||
Maximum Current 1.8A | ||
Maximum Voltage 1.9V dc | ||
Active Area 6.6 x 6.6 x 2.2mm | ||
- COO (Country of Origin):
- CN
The Adaptive Micro Peltier Cooler Module offers a cooling power of 2.2W when the hot side temperature (Th) is 25°C (298K) under dry nitrogen conditions. It is designed with a maximum cooling power (Pc max) at ΔT = 0 and maximum current (Imax), with a maximum temperature difference (ΔTmax) at I = Imax and Pc = 0. To ensure long-term performance, the module's maximum hot side temperature is specified. The module is unsealed, with a maximum mounting pressure of 1.5 MPa, making it suitable for a variety of precise cooling applications where space and power efficiency are critical.
Compliance with UL1569 standards
Wire made of PVC material
Wire made of PVC material
