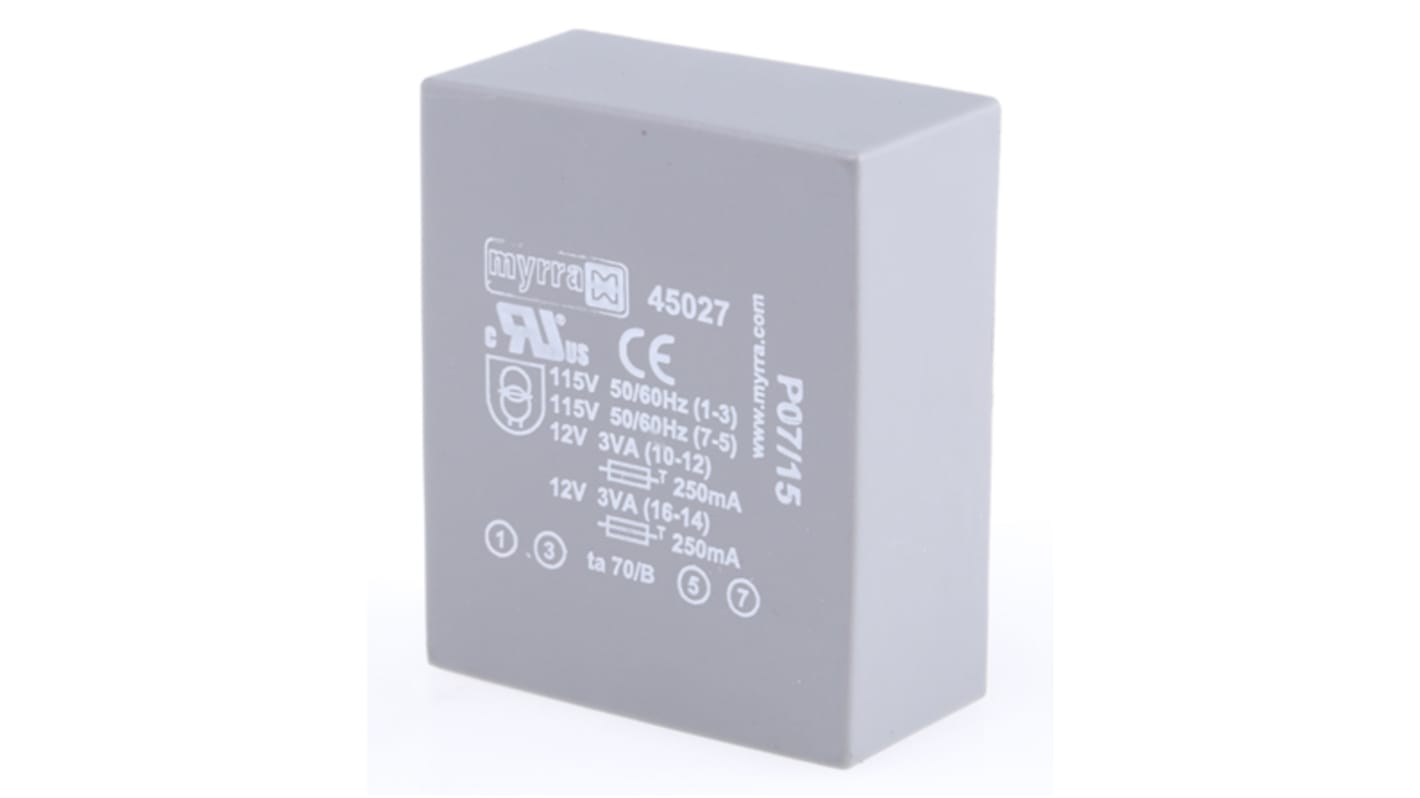

Myrra 2 Output PCB PCB Transformer, EN 60950, CEI 85, UL 1585, EN 61558-2-6, CEI 126
- RS Stock No.:
- 173-9002
- Mfr. Part No.:
- 45027
- Brand:
- Myrra
Bulk discount available
Subtotal (1 unit)*
£10.30
(exc. VAT)
£12.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £10.30 |
| 25 - 49 | £9.28 |
| 50 - 99 | £7.92 |
| 100 - 249 | £7.57 |
| 250 + | £7.08 |
*price indicative
- RS Stock No.:
- 173-9002
- Mfr. Part No.:
- 45027
- Brand:
- Myrra
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Myrra | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V, 117 V | |
| Number of Outputs | 2 | |
| Length | 53mm | |
| Width | 44 mm | |
| Depth | 22mm | |
| Weight | 700g | |
| Mount Type | PCB | |
| Isolation Voltage | 4kV | |
| Maximum Operating Temperature | 250°C | |
| Minimum Operating Frequency | 50Hz | |
| Series | 44000 | |
| Standards/Approvals | EN 60950, CEI 85, UL 1585, EN 61558-2-6, CEI 126 | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Myrra | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V, 117 V | ||
Number of Outputs 2 | ||
Length 53mm | ||
Width 44 mm | ||
Depth 22mm | ||
Weight 700g | ||
Mount Type PCB | ||
Isolation Voltage 4kV | ||
Maximum Operating Temperature 250°C | ||
Minimum Operating Frequency 50Hz | ||
Series 44000 | ||
Standards/Approvals EN 60950, CEI 85, UL 1585, EN 61558-2-6, CEI 126 | ||
Maximum Operating Frequency 60Hz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Type UI 30 - 3 VA → 10 VA
Secondary voltages are nominal load voltages on resistive loads.
Only the pins indicated on the wiring diagram "physically" exist.
Encapsulated – Toroidal
Note
Fixing screws not provided
Approvals
UL 506
Standards
IEC 742, VDE 0551, SEV 1003
