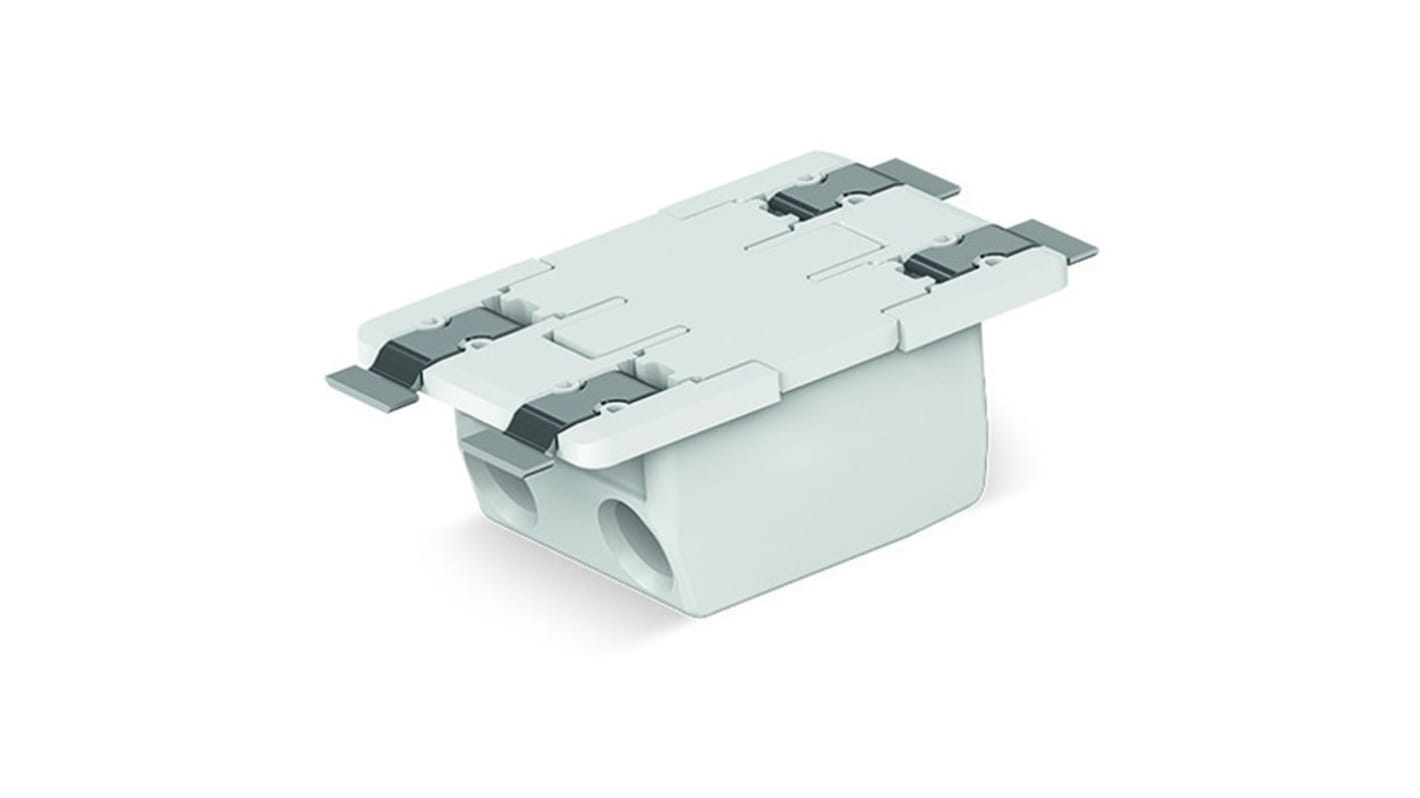

WAGO 2070 Series PCB Terminal Block, 2-Contact, 6.5 mm Pitch, Surface, 1 Row
- RS Stock No.:
- 278-2536
- Distrelec Article No.:
- 301-42-967
- Mfr. Part No.:
- 2070-462/998-406
- Brand:
- WAGO
Subtotal (1 pack of 477 units)*
£259.965
(exc. VAT)
£311.958
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 477 + | £0.545 | £259.97 |
*price indicative
- RS Stock No.:
- 278-2536
- Distrelec Article No.:
- 301-42-967
- Mfr. Part No.:
- 2070-462/998-406
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 6.5mm | |
| Current | 9A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Surface | |
| Housing Material | Polyphthalamide | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Wire Connection Method | Push-in Cage Clamp | |
| Colour | White | |
| Voltage | 320V | |
| Standards/Approvals | IEC/EN 60664-1 | |
| Depth | 22.2mm | |
| Width | 11.8mm | |
| Series | 2070 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Pitch 6.5mm | ||
Current 9A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Surface | ||
Housing Material Polyphthalamide | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Wire Connection Method Push-in Cage Clamp | ||
Colour White | ||
Voltage 320V | ||
Standards/Approvals IEC/EN 60664-1 | ||
Depth 22.2mm | ||
Width 11.8mm | ||
Series 2070 | ||
- COO (Country of Origin):
- CH
The WAGO Through Board SMD PCB Terminal Block can accommodating wires with a thickness of 0.75 mm². This terminal block has push in CAGE CLAMP technology. It is packaged in tape and reel format. It is available in a white color.
RoHS compliant
V0 Flammability class per UL94
