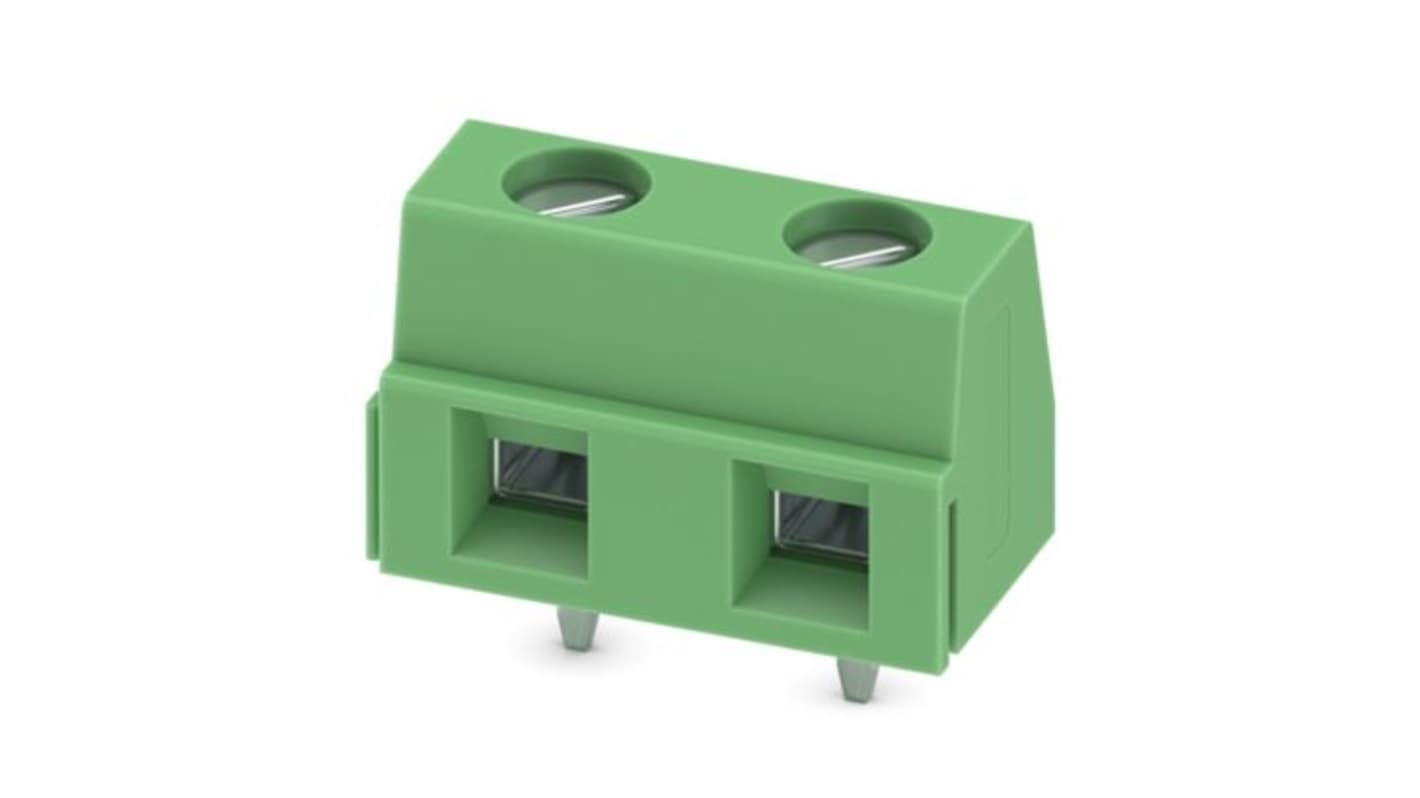

Phoenix Contact PCB Terminal Block, 2-Contact, 7.62 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 608-260
- Mfr. Part No.:
- 1707027
- Brand:
- Phoenix Contact
Subtotal (1 pack of 180 units)*
£214.30
(exc. VAT)
£257.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £214.30 | £1.191 |
*price indicative
- RS Stock No.:
- 608-260
- Mfr. Part No.:
- 1707027
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 7.62mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 63V | |
| Standards/Approvals | IEC 60947-7-4:2019-01, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60512-3-1:2002-02, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2, cULus E60425-19770427, VDE 40055535, UL 94 V0, IEC 60999-1:1999-11 | |
| Width | 15.24mm | |
| Length | 8.1mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Pitch 7.62mm | ||
Current 16A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 63V | ||
Standards/Approvals IEC 60947-7-4:2019-01, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60512-3-1:2002-02, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2, cULus E60425-19770427, VDE 40055535, UL 94 V0, IEC 60999-1:1999-11 | ||
Width 15.24mm | ||
Length 8.1mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB terminal block is engineered for exceptional reliability and performance in industrial applications. With its compact design, this printed circuit board terminal accommodates a nominal current of 16 A and a rated voltage of 630 V. Crafted to meet strict international standards, it features a wave soldering mount and a screw connection method with a tension sleeve, ensuring secure and effective electrical connections. This terminal block supports a variety of conductor cross sections, providing flexibility while maintaining a high level of safety and efficiency. Its user-friendly design allows for alignment, enabling scalability in configurations.
Constructed from materials that meet WEEE/RoHS compliance standards
User friendly alignment feature allows for customised configurations
Designed to maintain low temperature rise even under high load conditions
Accommodates multiple conductor types to enhance connectivity options
