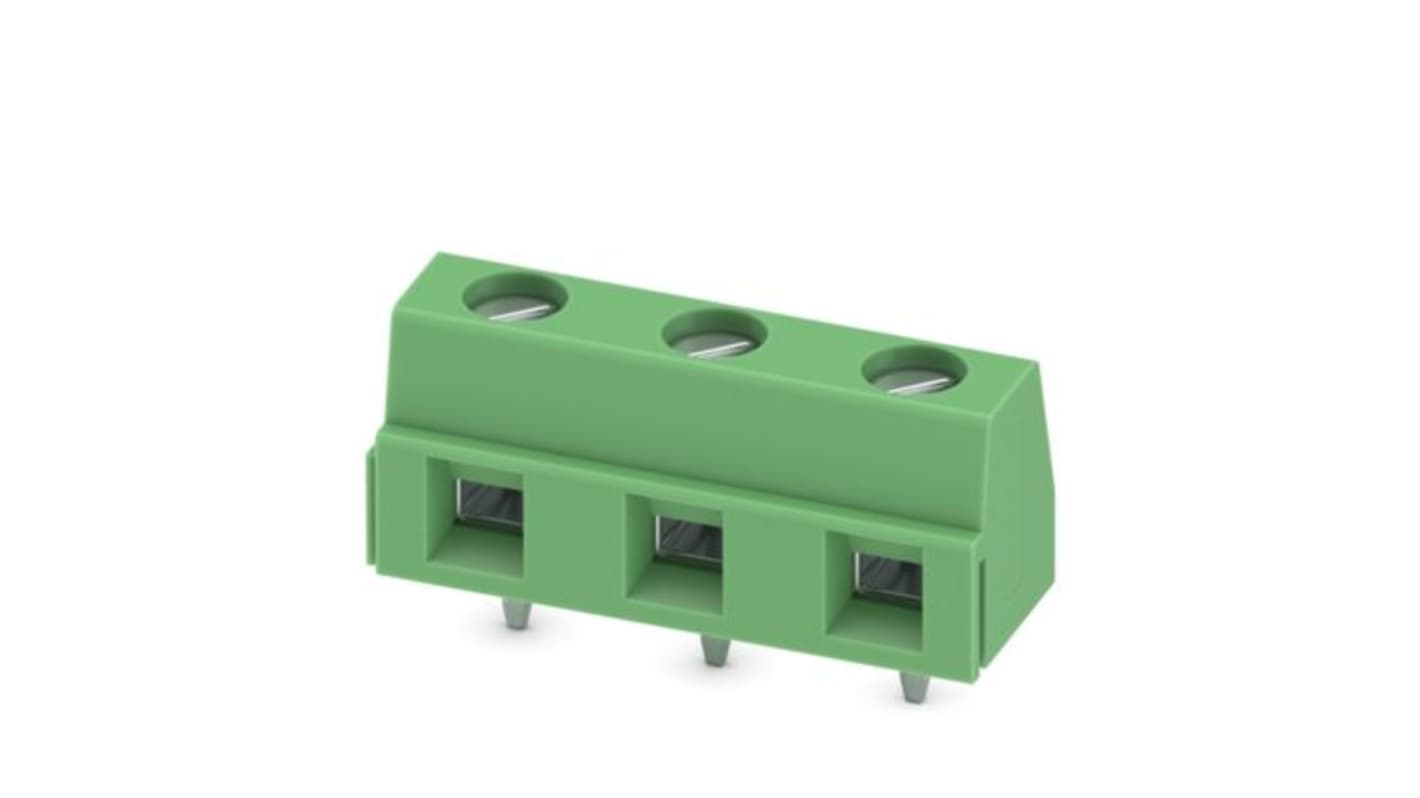

Phoenix Contact PCB Terminal Block, 3-Contact, 7.62 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 610-261
- Mfr. Part No.:
- 1707030
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 610-261
- Mfr. Part No.:
- 1707030
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 7.62mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 63V | |
| Standards/Approvals | cULus Recognised, VDE | |
| Width | 22.86mm | |
| Length | 8.1mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 7.62mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 63V | ||
Standards/Approvals cULus Recognised, VDE | ||
Width 22.86mm | ||
Length 8.1mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Printed circuit board terminal block is engineered for optimal performance within demanding applications. The innovative design ensures a reliable connection, highlighting the advantages of screw connection with a tension sleeve, while its compact layout accommodates space restrictions typically found in electronic assemblies. With the integration of advanced materials, this product also adheres to stringent safety and environmental standards, such as WEEE and RoHS compliance. Its green housing colour complements various board designs, and the ability to align multiple blocks enhances versatility.
Flexibility in conducting two wires optimises connectivity
Colour coded housing enhances easy identification during installations
Accommodates various conductor sizes for versatile applications
Compliant with industry standards for safety and environmental protection
