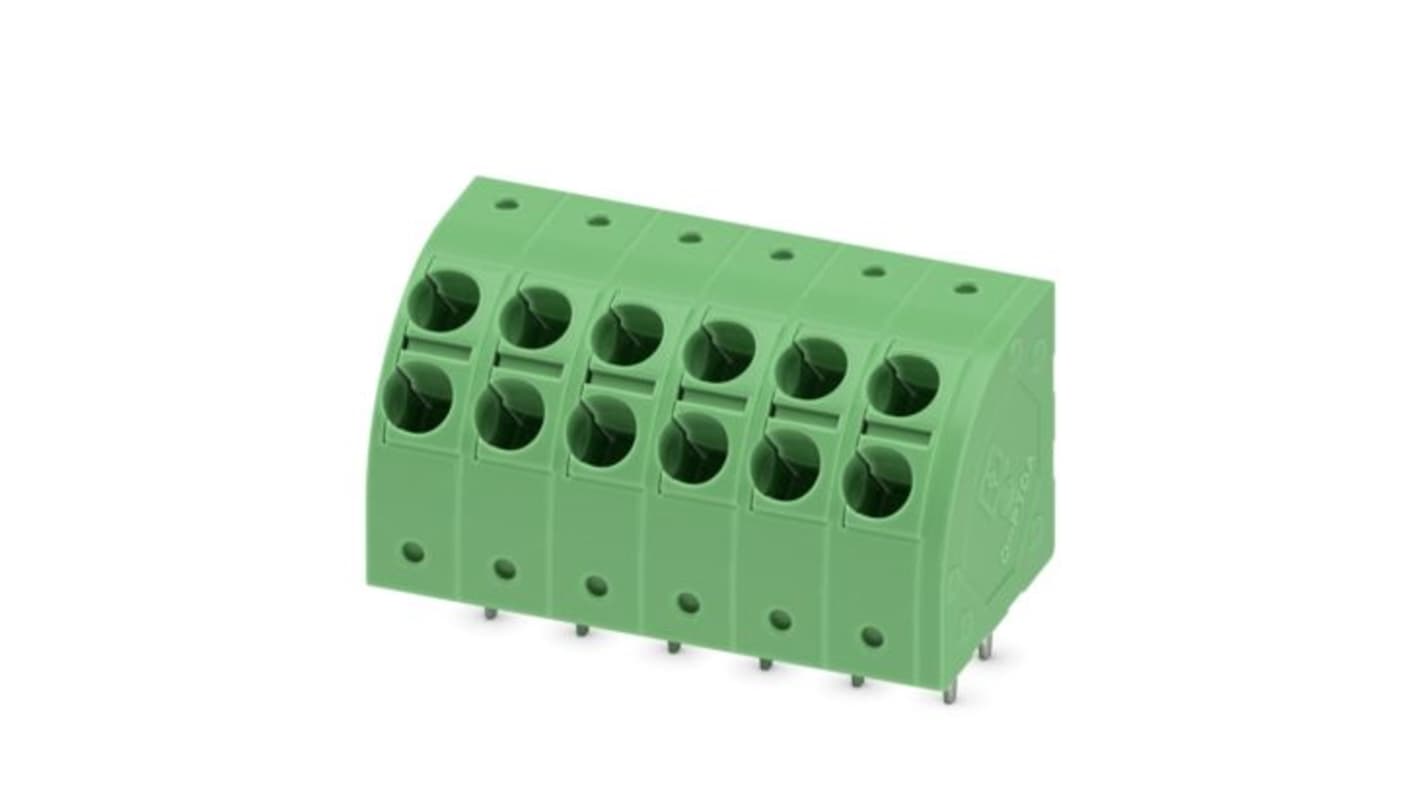

Phoenix Contact PCB Terminal Block, 6-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 607-202
- Mfr. Part No.:
- 1725354
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£202.52
(exc. VAT)
£243.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £202.52 | £4.05 |
*price indicative
- RS Stock No.:
- 607-202
- Mfr. Part No.:
- 1725354
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 6 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in Spring | |
| Colour | Green | |
| Voltage | 40V | |
| Length | 16mm | |
| Standards/Approvals | cULus Recognised, VDE report | |
| Width | 30mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 6 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 24A | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in Spring | ||
Colour Green | ||
Voltage 40V | ||
Length 16mm | ||
Standards/Approvals cULus Recognised, VDE report | ||
Width 30mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block is designed to accommodate various electrical connections with utmost reliability and efficiency. It features a push-in spring connection method, allowing for rapid and tool-free deployment, making it ideal for modern automated systems. With a robust nominal current rating and high voltage capabilities, this terminal block ensures safe and stable operation under demanding conditions. Its thoughtful design incorporates six potentials with a linear pin layout for streamlined connections, while the wave soldering mounting method guarantees secure and firm attachment to your circuit boards.
Employs wave soldering for robust mounting on printed circuit boards
Built from high quality materials to ensure durability and longevity
Meets high voltage and current specifications for versatile applications
A compact design suitable for space constrained environments
