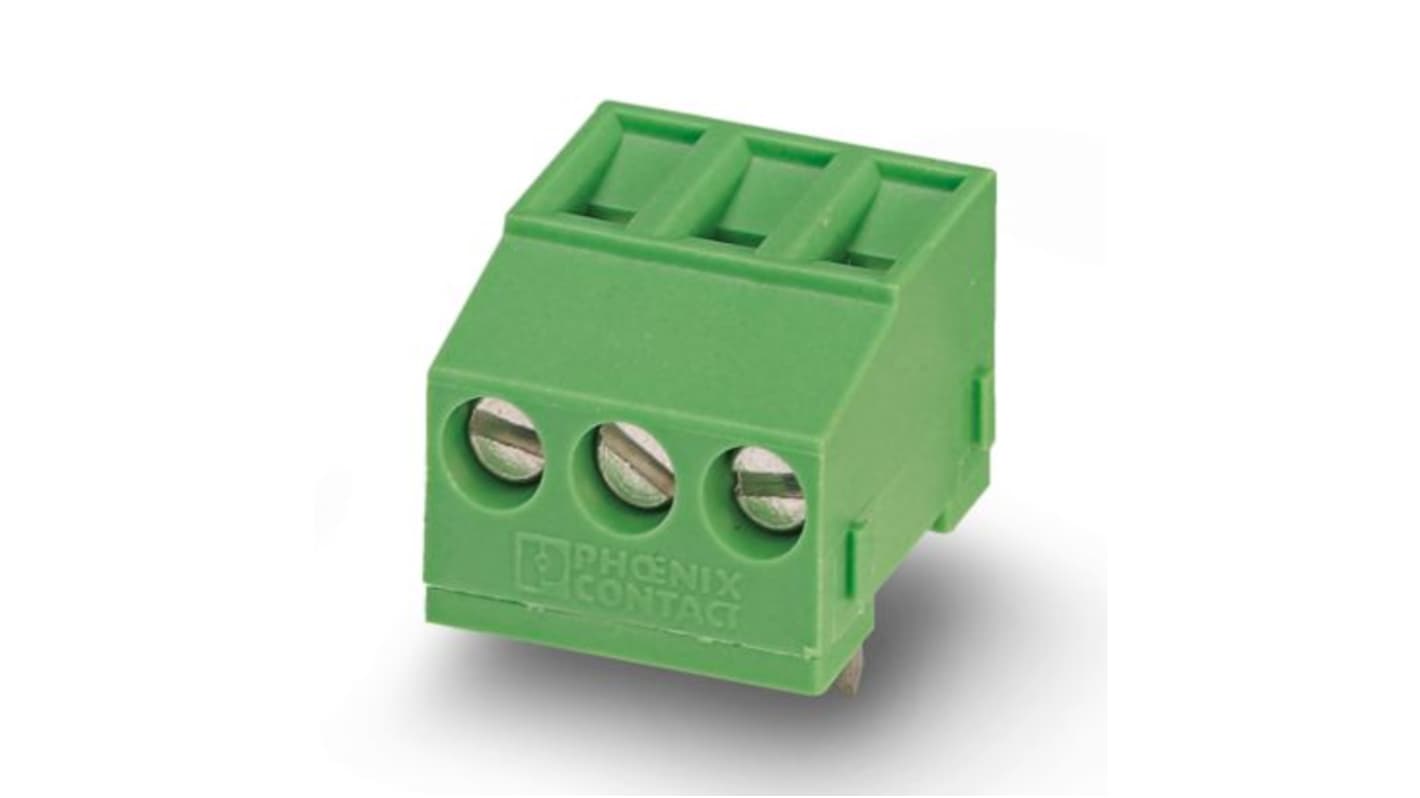

Phoenix Contact PCB Terminal Block, 3-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 607-194
- Mfr. Part No.:
- 1717088
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£161.91
(exc. VAT)
£194.29
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £161.91 | £3.238 |
*price indicative
- RS Stock No.:
- 607-194
- Mfr. Part No.:
- 1717088
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 90° | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 40V | |
| Length | 15.5mm | |
| Width | 15mm | |
| Standards/Approvals | CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19770427, IEC 60112, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, UL 94 V2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 90° | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 40V | ||
Length 15.5mm | ||
Width 15mm | ||
Standards/Approvals CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19770427, IEC 60112, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, UL 94 V2 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block exemplifies precision engineering tailored for reliable connectivity. Designed with a nominal current of 17.5 A and a rated voltage of up to 400 V, this terminal block effectively supports various electrical configurations. The compact design, with a pitch of just 5 mm, allows for efficient space utilisation on printed circuit boards. Enhanced by its screw connection technology, it ensures secure connections, reducing the risk of mechanical loosening over time. Ideal for diverse applications, it stands out with its green housing that not only signifies quality but also provides resistance to environmental stresses, making it suitable for various installation conditions.
It provides a sustainable solution by adhering to environmental compliance standards
The green housing ensures visibility in crowded assembly environments
It incorporates a low temperature rise feature for improved thermal management during operation
This product is designed for ease of assembly, streamlining installation processes
