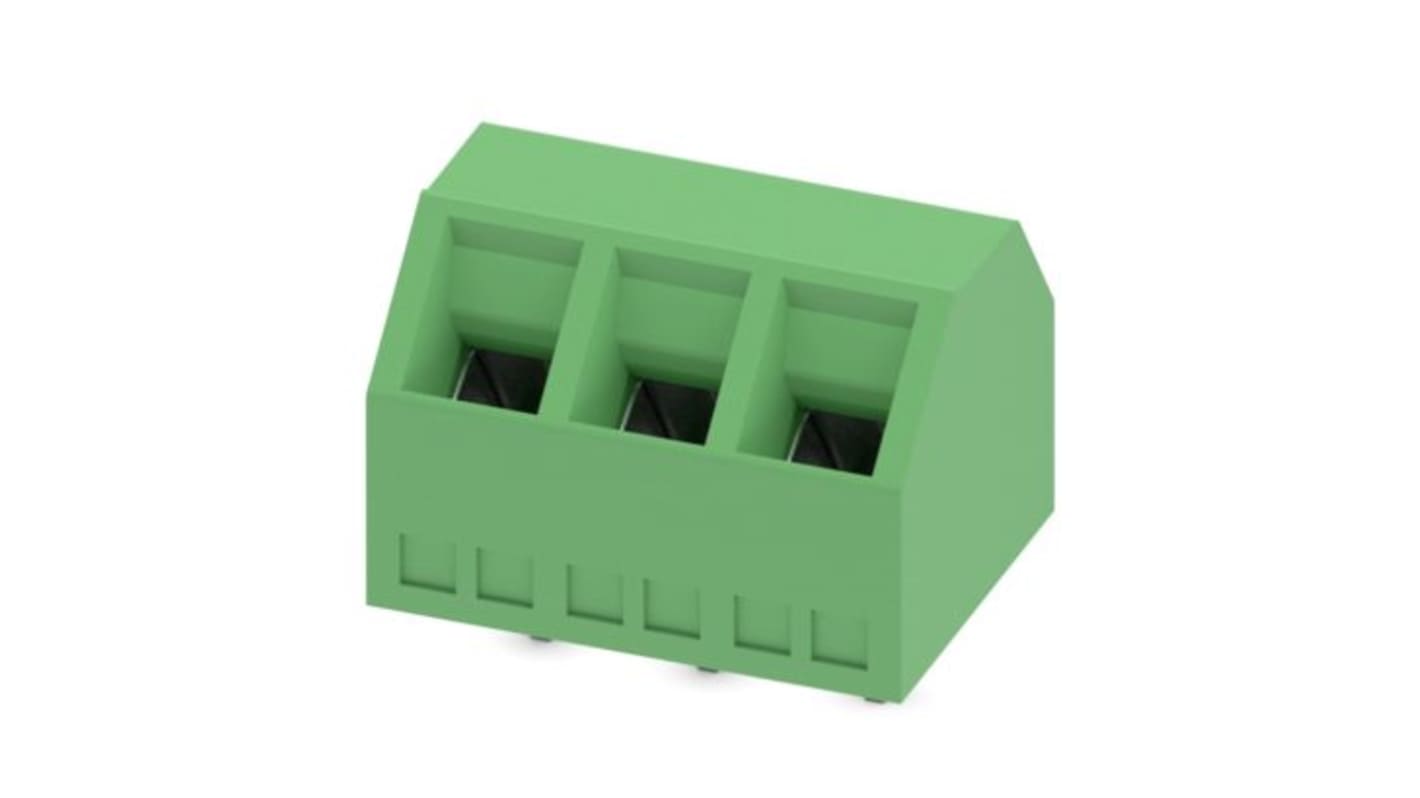

Phoenix Contact PCB Terminal Block, 3-Contact, 5mm Pitch, Wave Soldering, 1-Row, Plug In, Screw Termination
- RS Stock No.:
- 566-194
- Mfr. Part No.:
- 1869075
- Brand:
- Phoenix Contact
Subtotal (1 pack of 250 units)*
£155.36
(exc. VAT)
£186.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £155.36 | £0.621 |
*price indicative
- RS Stock No.:
- 566-194
- Mfr. Part No.:
- 1869075
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 3 | |
Pitch | 5mm | |
Number of Rows | 1 | |
Mounting Type | Wave Soldering | |
Gender | Male | |
Termination Method | Plug In, Screw | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 3 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mounting Type Wave Soldering | ||
Gender Male | ||
Termination Method Plug In, Screw | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB terminal block combines efficiency and reliability in a compact design tailored for diverse applications. With a nominal current of 17.5 A and a rated voltage of up to 400 V, it ensures superior performance in electrical connections. The thoughtful engineering features a pitch of 5 mm and a linear pin layout, promoting easy integration into existing circuit designs. Its screw connection method with a tension sleeve guarantees a secure grip, while the green PA housing provides excellent insulation and durability.
Displays resilience against demanding electrical performance criteria
Simplifies installation with a secure screw connection mechanism
Facilitates effective heat dissipation, reducing the risk of overheating
Complies with international safety standards for trustworthy operation
Simplifies installation with a secure screw connection mechanism
Facilitates effective heat dissipation, reducing the risk of overheating
Complies with international safety standards for trustworthy operation
