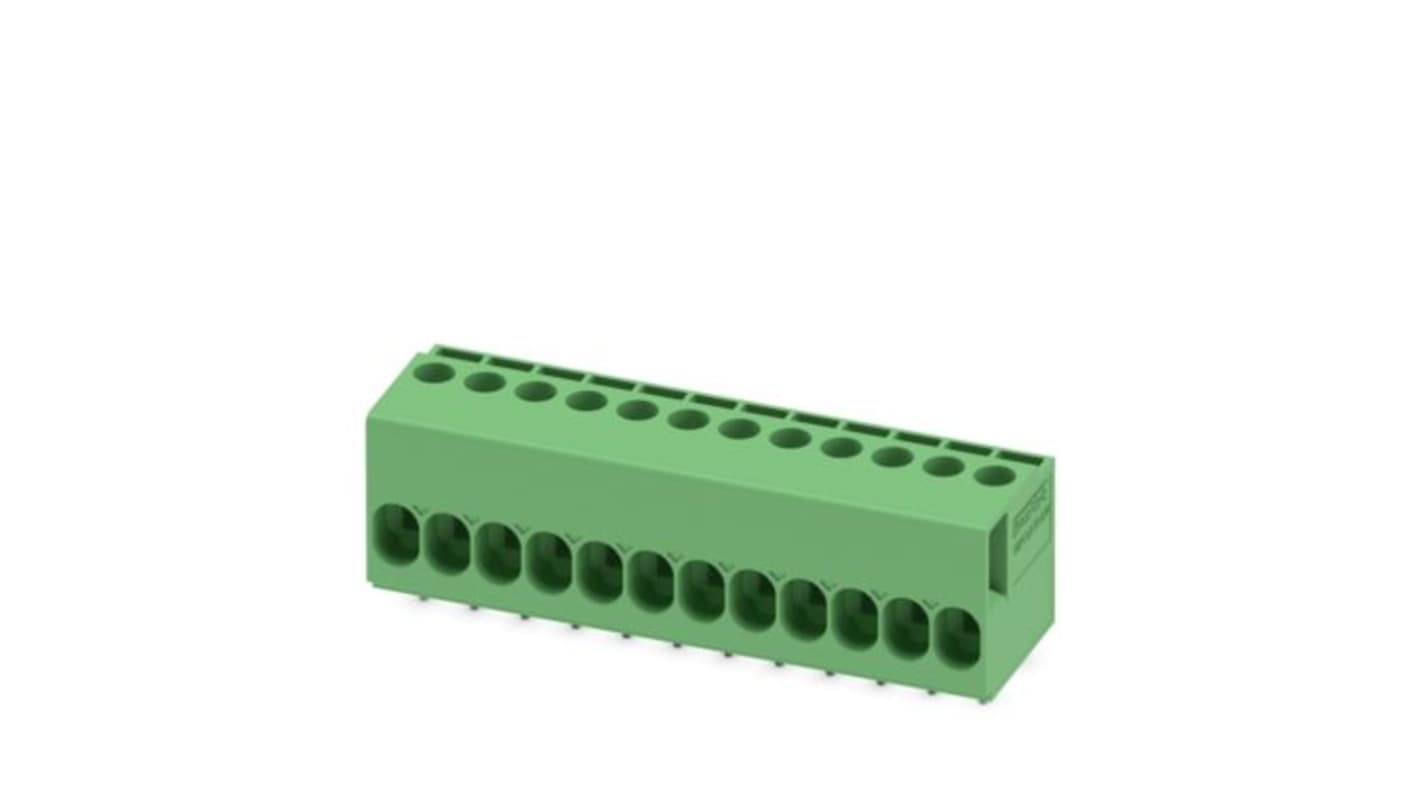

Phoenix Contact TDPT Series PCB Terminal Block, 5.08mm Pitch, Wave Soldering, 1-Row, Screw Termination
- RS Stock No.:
- 565-719
- Mfr. Part No.:
- 1017502
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£476.41
(exc. VAT)
£571.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £476.41 | £9.528 |
*price indicative
- RS Stock No.:
- 565-719
- Mfr. Part No.:
- 1017502
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pitch | 5.08mm | |
Number of Rows | 1 | |
Mounting Type | Wave Soldering | |
Termination Method | Screw | |
Series | TDPT | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Mounting Type Wave Soldering | ||
Termination Method Screw | ||
Series TDPT | ||
- COO (Country of Origin):
- CN
SMD 0603 Ferrite Filters- BLM18B Series
These filters are designed to act as resistors to electronic noise frequencies
Limit potential interference
Do not generate distortion
Designed for high-speed data transmission lines
Limit potential interference
Do not generate distortion
Designed for high-speed data transmission lines
The Phoenix Contact printed circuit board terminal offers a robust connection for various electrical applications. Designed to streamline connectivity while ensuring reliability, the terminal accommodates a range of conductor cross-sections, making it versatile for different installation scenarios. Leveraging well-known connection principles, this product enhances ease of use, allowing for seamless integration into existing systems. Its compact design, paired with a linear pin layout, enhances space efficiency on PCBs, while the wave soldering mounting method facilitates straightforward assembly. The terminals notable electrical characteristics, including a nominal current capacity of 24 A and rated voltage of 400 V, ensure it meets the demands of high-performance applications. Additionally, the product is compliant with international standards for safety and environmental sustainability, making it a responsible choice for modern electrical solutions.
Utilises a familiar connection principle for broader compatibility
Optimised for low temperature rise, enhancing longevity
Features a green housing that is visually distinctive
Offers a pin layout designed for linear pinning requirements
Available for made-to-order requests, catering to specific project needs
Screw connection with tension sleeve ensures secure conductor hold
Constructed from materials compliant with WEEE/RoHS standards
Includes provisions for dual conductor connections to maximise efficiency
Optimised for low temperature rise, enhancing longevity
Features a green housing that is visually distinctive
Offers a pin layout designed for linear pinning requirements
Available for made-to-order requests, catering to specific project needs
Screw connection with tension sleeve ensures secure conductor hold
Constructed from materials compliant with WEEE/RoHS standards
Includes provisions for dual conductor connections to maximise efficiency
