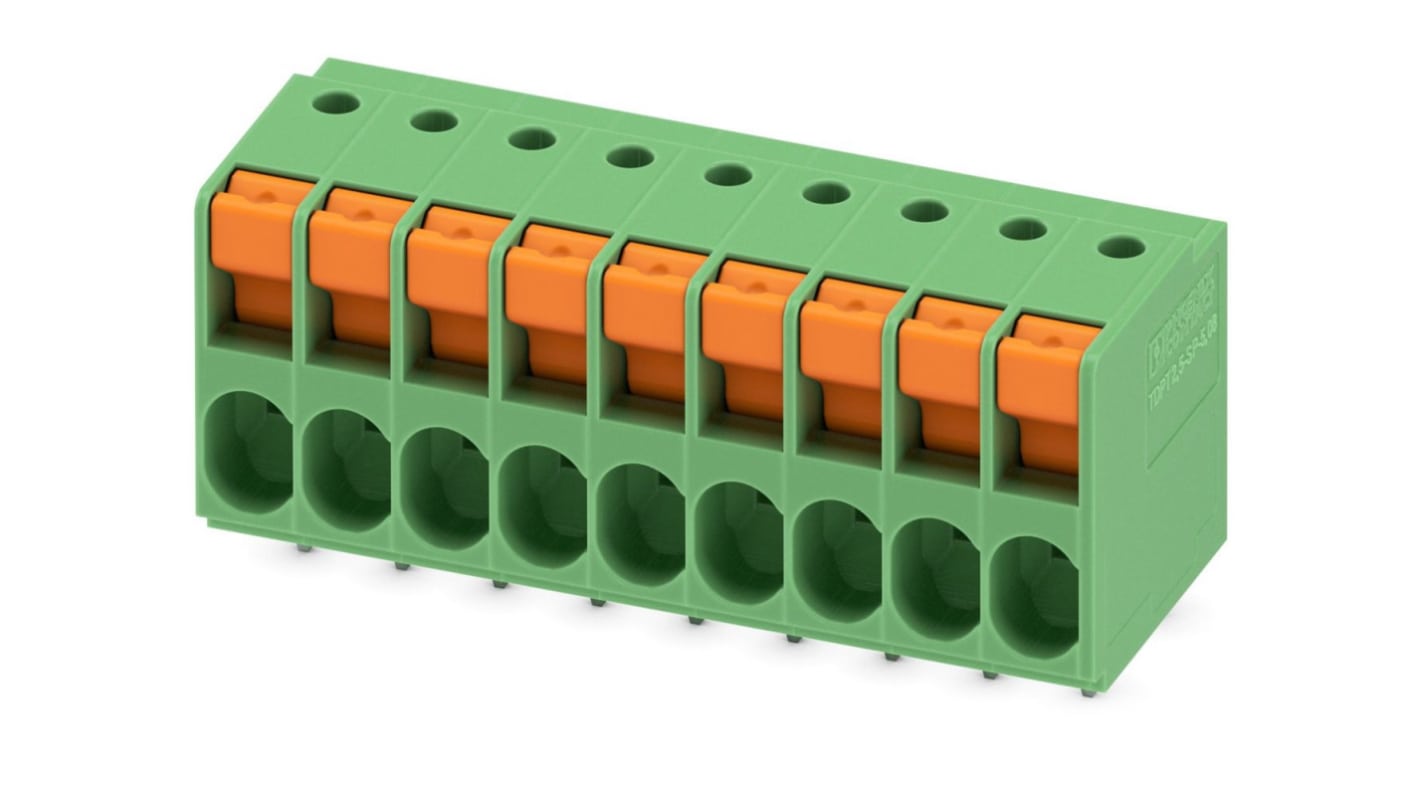

Phoenix Contact TDPT 2.5/ 9-SP-5.08 Series PCB Terminal Block, 9-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row,
- RS Stock No.:
- 175-3830
- Mfr. Part No.:
- 1017510
- Brand:
- Phoenix Contact
Available to back order for despatch 16/07/2024
Added
Price Each (In a Box of 50)
£3.268
(exc. VAT)
£3.922
(inc. VAT)
Units | Per unit | Per Box* |
50 - 50 | £3.268 | £163.40 |
100 - 200 | £3.18 | £159.00 |
250 - 450 | £3.095 | £154.75 |
500 + | £3.016 | £150.80 |
*price indicative |
- RS Stock No.:
- 175-3830
- Mfr. Part No.:
- 1017510
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PCB terminal block, nominal current: 32 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green
Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Specifications
Attribute | Value |
---|---|
Number of Contacts | 9 |
Pitch | 5.08mm |
Number of Rows | 1 |
Mounting Type | Through Hole |
Gender | Female |
Termination Method | Screw |
Type | PCB Terminal Block |
Current Rating | 32A |
Body Orientation | Straight |
Colour | Green |
Voltage Rating | 400 V |
Series | TDPT 2.5/ 9-SP-5.08 |
Material | Copper Alloy (Contact) |
Length | 18mm |
Depth | 19mm |
Width | 46.52mm |
